13 SERVICE WORK ON THE CHASSIS
98

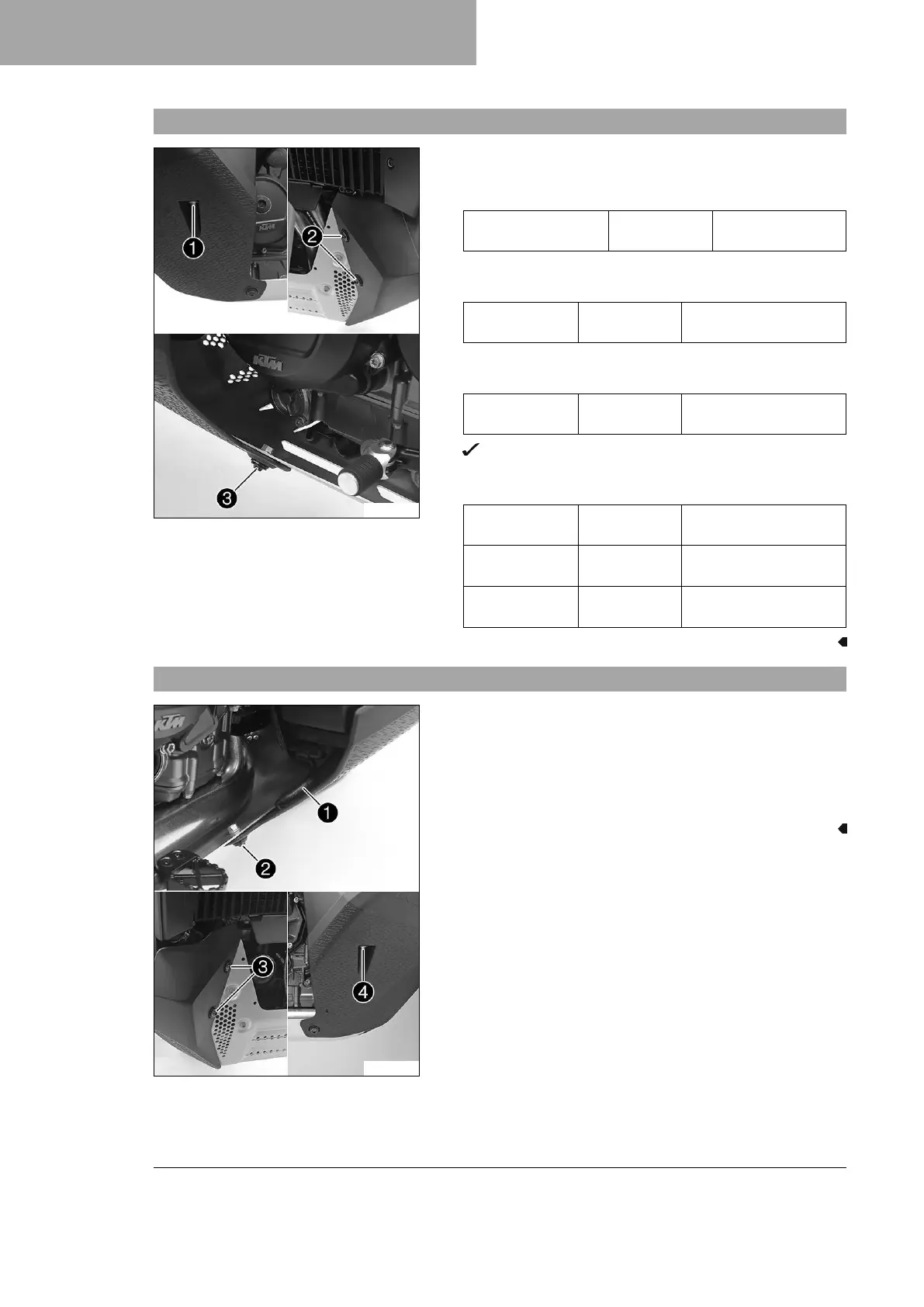

13.30 Installing the left fuel tank cover
F01938-10
– Position the left fuel tank cover.
–
Mount and tighten screw
1
.
Guideline
Screw, fuel tank
cover
M6x12 8 Nm (5.9 lbf ft)
–
Mount screws
2
, but do not tighten yet.
Guideline
Screw, fuel tank
cover
M6x18 5 Nm (3.7 lbf ft)
Loctite
®
243™
–
Mount fitting
3
, but do not tighten yet.
Guideline
Screw, fuel tank
cover
M6 5 Nm (3.7 lbf ft)
Loctite
®
243™
The left fuel tank cover is directed evenly toward the front.
– Tighten all the screws of the left fuel tank cover.
Guideline
Screw, fuel tank
cover
M6x12 8 Nm (5.9 lbf ft)
Screw, fuel tank
cover
M6x18 5 Nm (3.7 lbf ft)
Loctite
®
243™
Screw, fuel tank
cover
M6 5 Nm (3.7 lbf ft)
Loctite
®
243™
13.31 Removing right fuel tank cover
F01939-10
–
Pull out tube
1
from the angle piece.
–
Remove fitting
2
.
–
Remove screws
3
.
–
Remove screw
4
.
– Remove right fuel tank cover.
