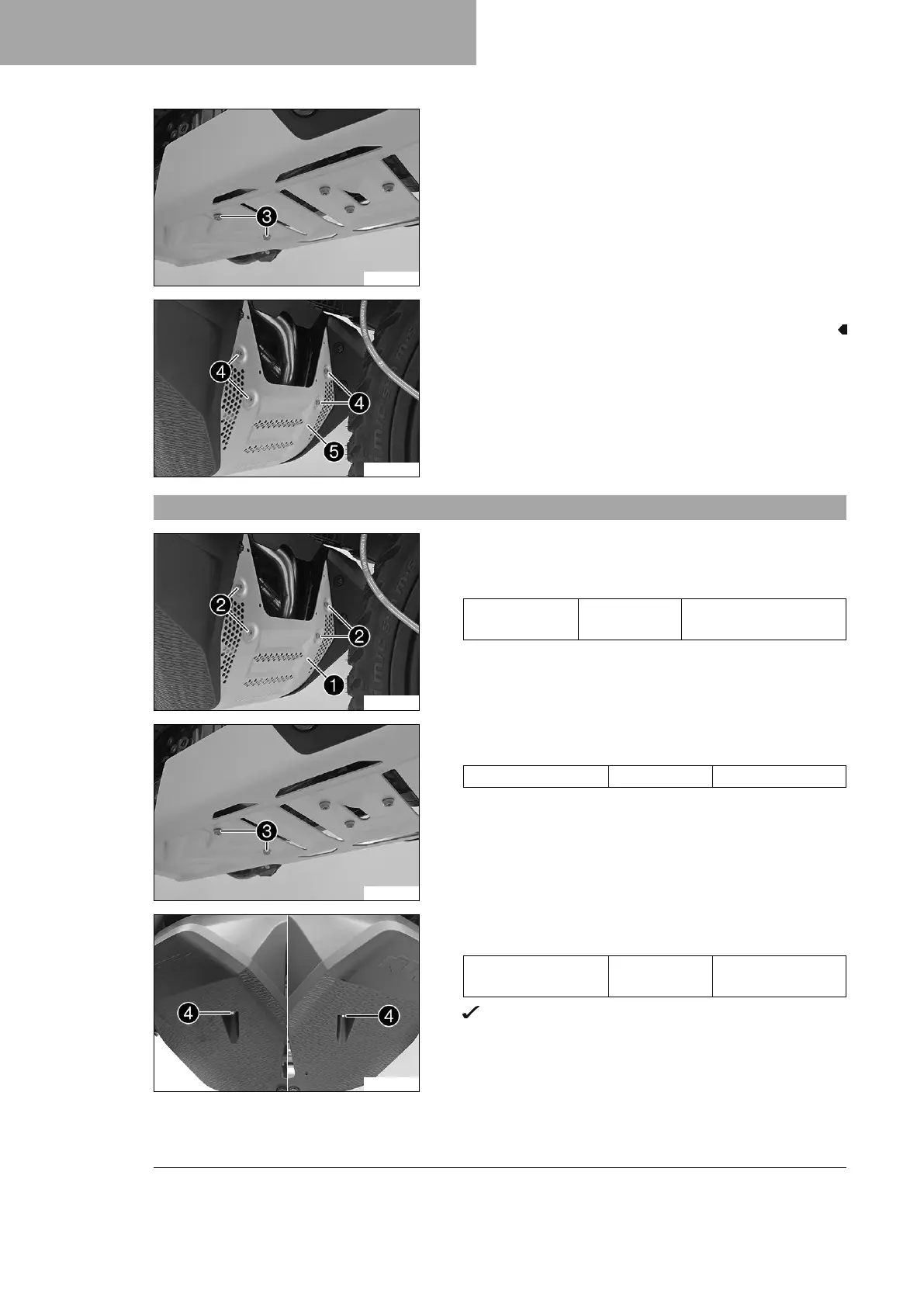

13 SERVICE WORK ON THE CHASSIS
100
F01930-10
–
Remove screws
3
.
F02063-10
–
Remove screws
4
and engine guard
5
.
13.34 Installing the engine guard
F02063-11
–
Position engine guard
1
.
–
Mount screws
2
, but do not tighten yet.
Guideline
Screw, engine
guard
M6x10 10 Nm (7.4 lbf ft)
Loctite
®
243™
F01930-10
–
Mount screws
3
, but do not tighten yet.
Guideline
Screw, engine guard M6x8 8 Nm (5.9 lbf ft)
F01929-11
–
Mount screws
4
, but do not tighten yet.
Guideline
Screw, fuel tank
cover
M6x12 8 Nm (5.9 lbf ft)
The engine guard is directed evenly toward the front.
– Tighten all the screws of the engine guard.
