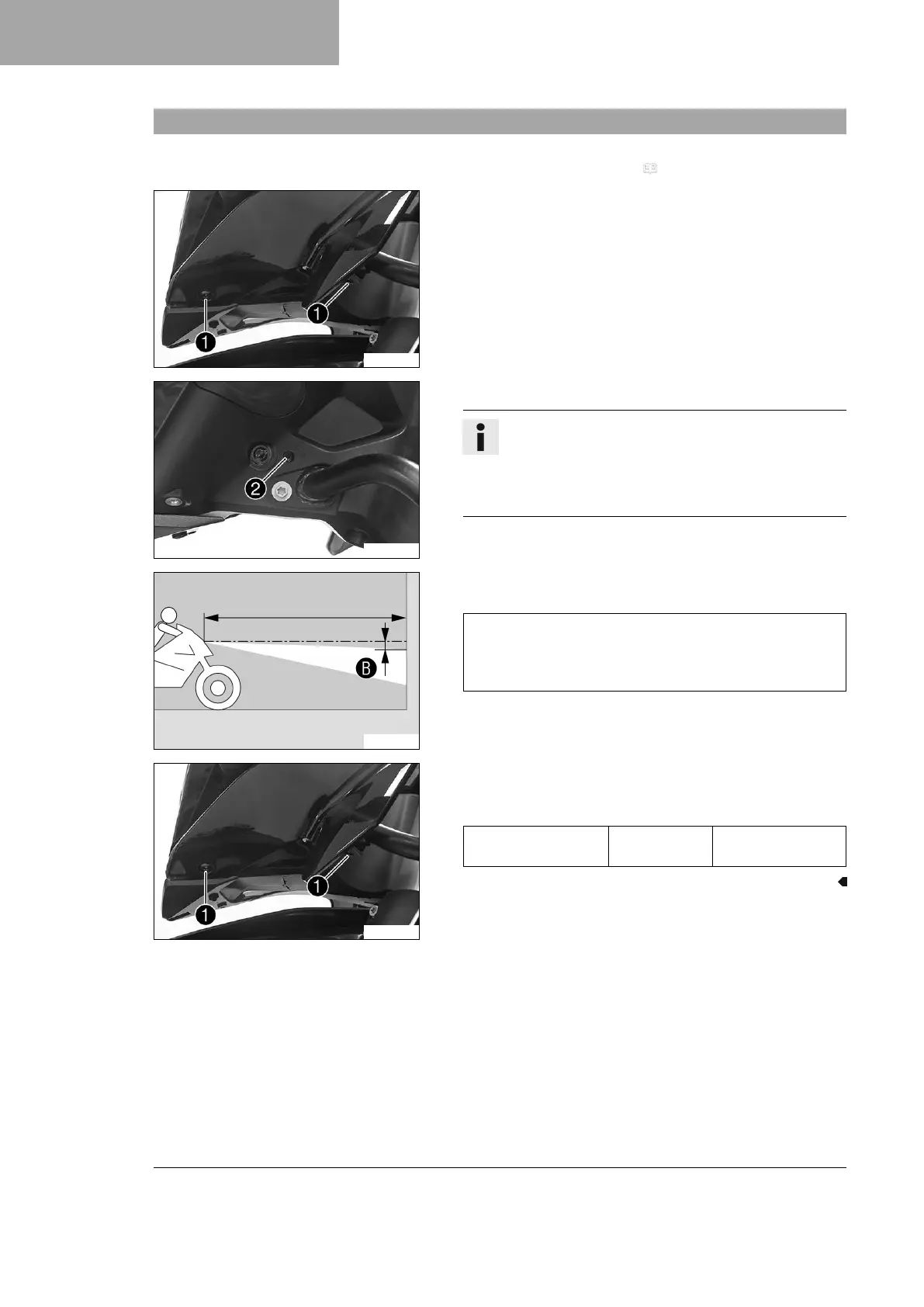

16.9 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 127)
F02085-10
Main work
–
Remove screws
1
.
– Remove the left mask spoiler.
F02086-10
–
Turn adjusting screw
2
to adjust the headlight range.
Info
Turn clockwise to reduce the headlight range; turn
counterclockwise to increase the headlight range.
If you have a payload, you may have to correct the
headlight range.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger, if
applicable.
F02085-10
– Position left mask spoiler.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
