13 SERVICE WORK ON THE CHASSIS
94

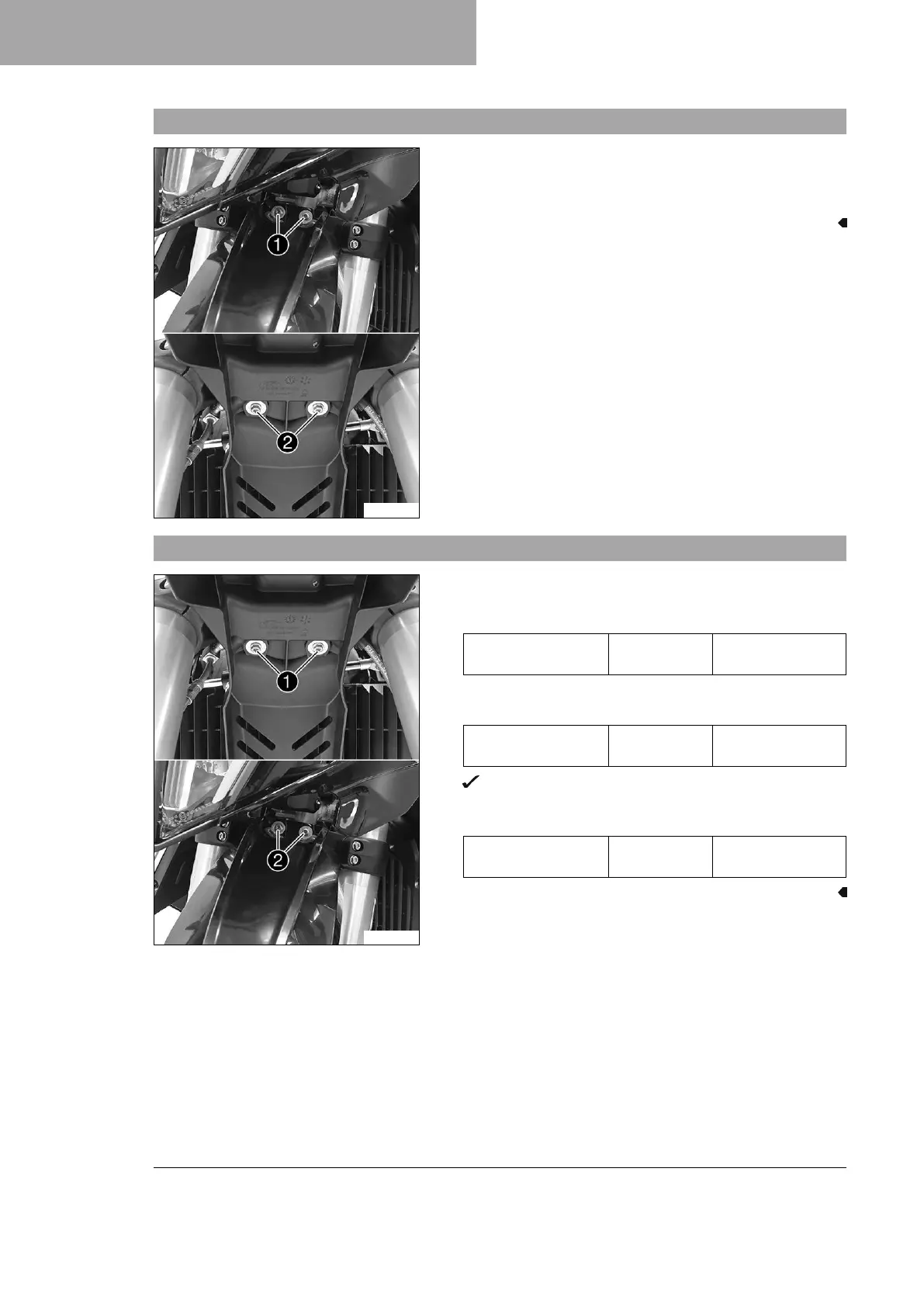

13.22 Removing the front fender
F02050-10
–
Remove screws
1
.
–
Remove screws
2
.
– Take the fender off to the front.
13.23 Installing the front fender
F02052-10
–
Position the front fender. Mount screws
1
, but do not tighten
yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Mount screws
2
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
The fender is evenly aligned to the front.
– Tighten all screws on the front fender.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
