A faulty fuse has a burned-out fuse wire
A
.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 149)
Fuse (75011088015) ( p. 149)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 82)

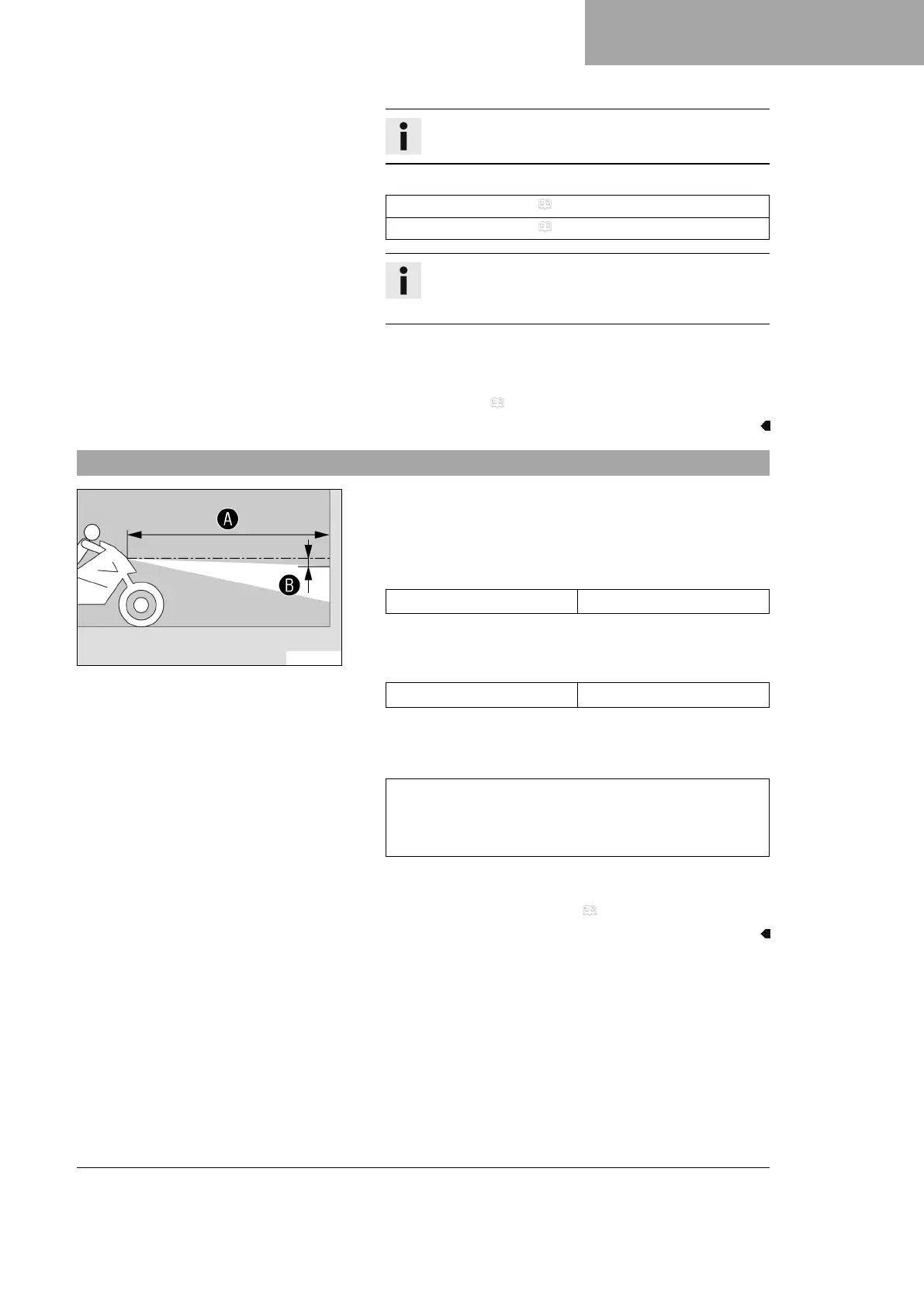

16.8 Checking the headlight setting
400726-10
– Park the vehicle on a horizontal surface in front of a light-
colored wall and make a mark at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle upright at distance
A
from the wall and
switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 128)
