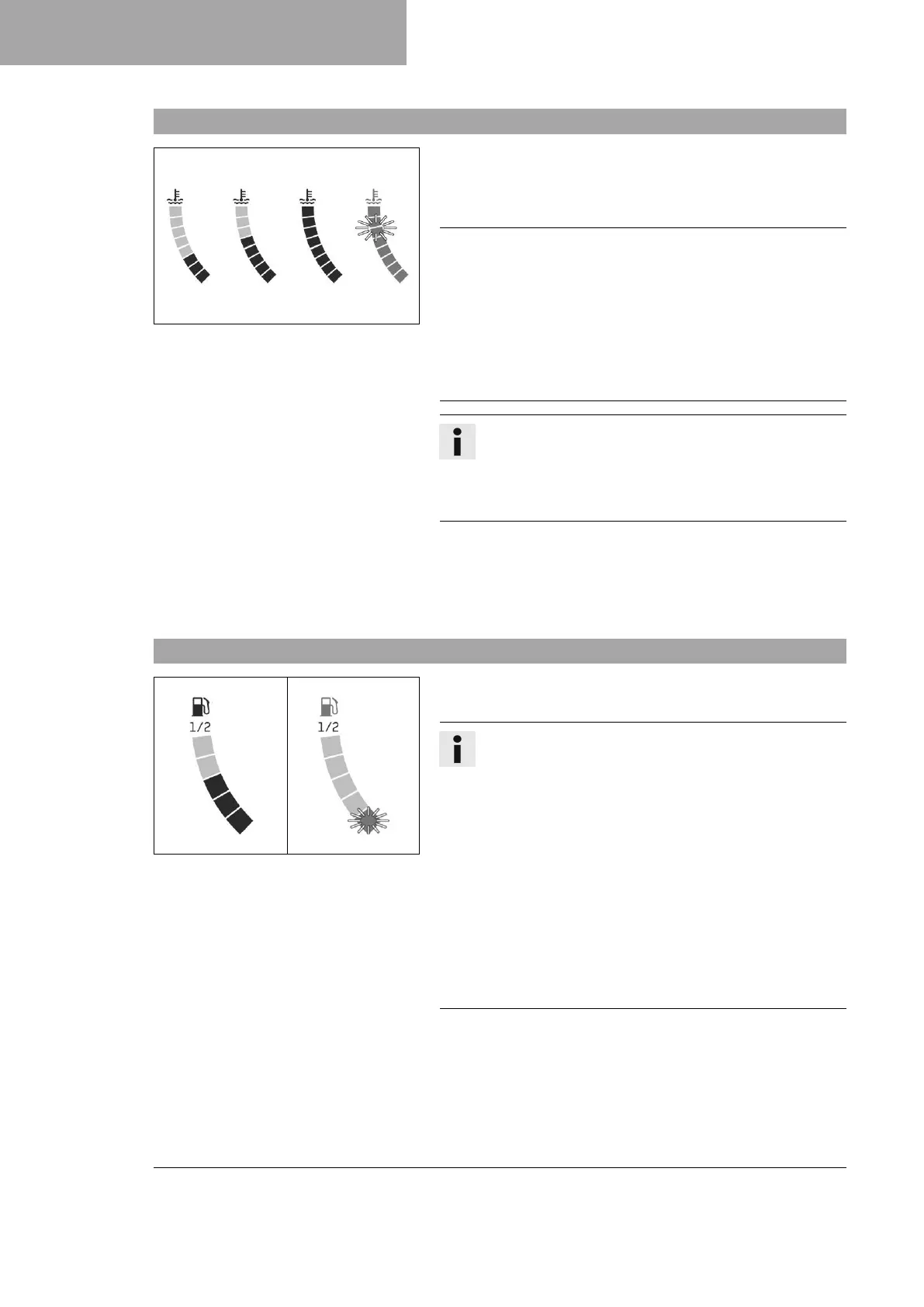

7.16 Coolant temperature indicator
F01776-01
The coolant temperature indicator consists of bars. The more bars
that light up, the hotter the coolant.
Emergency mode operation is automatically activated at a coolant
temperature of 120 °C.
Note
Engine failure Overheating damages the engine.
– If the coolant temperature warning is displayed, stop imme-
diately and take care not to endanger yourself or other traffic
participants in the process.
– Allow the engine and cooling system to cool down.
– Check and, if necessary, correct the coolant level on the cool-
ing system while it is in a cooled state.
Info
When all the bars flash, the warning ENGINE TEMP HIGH
also appears.
If the cooling system overheats, the maximum engine
speed is limited.
Possible states
• The engine is cold – Up to three bars light up.
• Engine warm – Four bars light up.
• Engine hot – Five to eight bars light up.
• Engine very hot – All eight bars light up red.
7.17 Fuel level display
F01777-01
The fuel level display consists of bars. The more bars are lit, the
more fuel is in the fuel tank.
Info
Measurement of the fuel supply only becomes active after
reaching half of the fuel tank content. Up to half of the fuel
tank content, the fuel level display will be shown as full.
If the fuel level is getting low, the last segment flashes red
and the following warning LOW FUEL also appears.
The fuel level is displayed with a slight delay to prevent the
indicator from constantly moving while riding.
The fuel level display is not updated while the side stand is
folded out or the emergency off switch is switched off.
Once the side stand is folded up and the emergency OFF
switch is switched on, the fuel level display is next updated
after 2 minutes.
The fuel level display flashes if the combination instrument
does not receive a signal from the fuel level sensor.
