15 WHEELS, TIRES
114
Guideline
Screw, rear wheel
speed sensor
M6 6 Nm (4.4 lbf ft)
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
Finishing work
– Check the chain tension. ( p. 84)
– Remove the rear of the motorcycle from the lifting gear.
( p. 81)

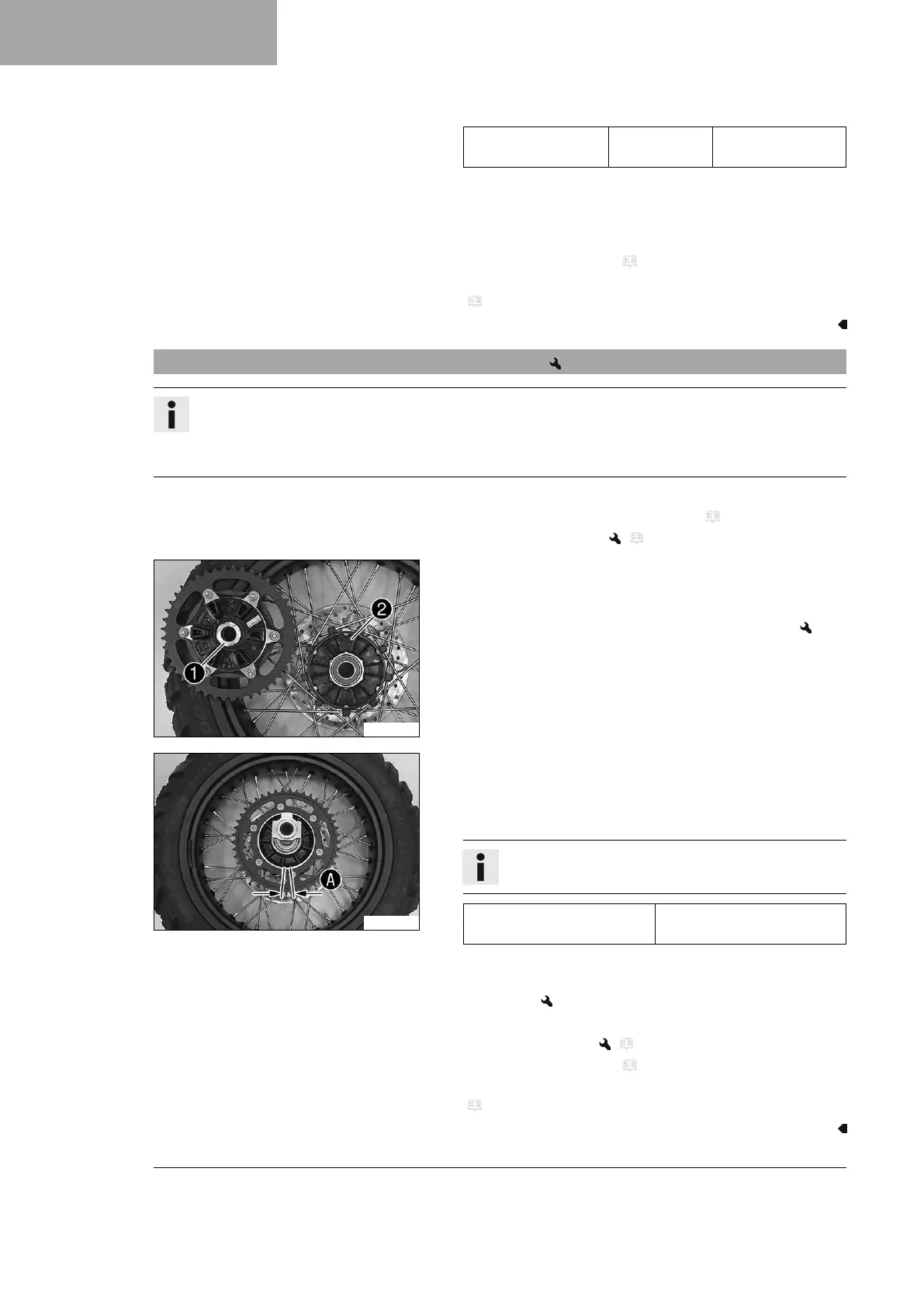

15.5 Checking the rear hub damping rubber pieces
Info
The engine power is transmitted from the rear sprocket to the rear wheel via the 6 damping rubber pieces.
They eventually wear out during operation. If the damping rubber pieces are not changed in time, the rear
sprocket carrier and the rear hub will be damaged.
Preparatory work
– Raise motorcycle with rear lifting gear. ( p. 81)
– Remove the rear wheel. ( p. 111)
F02073-10
Main work
–
Check bearing
1
.
» If the bearing is damaged or worn:
– Change the bearing of the rear sprocket carrier.
–
Check damping rubber pieces
2
of the rear hub for damage
and wear.
» If the damping rubber pieces of the rear hub are damaged
or worn:
– Change all the damping rubber pieces of the rear hub.
F02074-10
– Lay the rear wheel on a workbench with the rear sprocket fac-
ing upwards and insert the wheel spindle in the hub.
–
To check play
A
, hold the rear wheel tight and try to turn the
rear sprocket with your hand.
Info
Measure the play on the outside of the rear sprocket.
Play of damping rubber
pieces on rear wheel
≤ 5 mm (≤ 0.2 in)
»
If clearance
A
is larger than the specified value:
– Change all the damping rubber pieces of the rear
hub.
Finishing work
– Install the rear wheel. ( p. 112)
– Check the chain tension. ( p. 84)
– Remove the rear of the motorcycle from the lifting gear.
( p. 81)
