13 SERVICE WORK ON THE CHASSIS
88

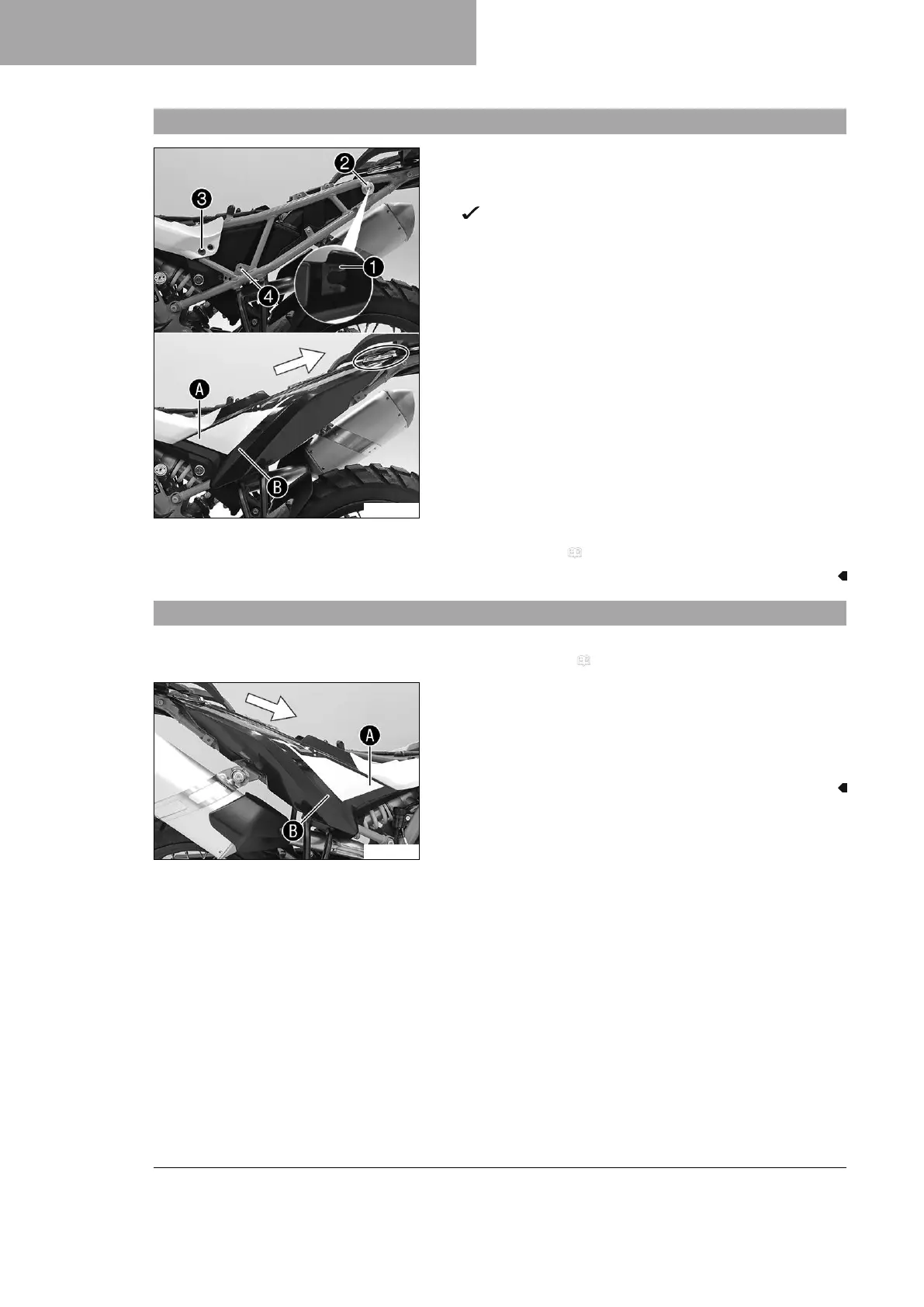

13.13 Installing the left side cover
F02033-10
Main work
–
Position the left side cover with holding lug
1
on bushing
2
and push backward.
The left side cover engages under the tail part.
–
Press the left side cover in area
A
into rubber bushing
3
and press into rubber bushing
B
in area
4
.
Finishing work
– Mount the seat. ( p. 82)
13.14 Removing the right side cover
Preparatory work
– Remove the seat. ( p. 82)
F02034-10
Main work
–
Remove the side cover from the rubber bushings in areas
A
and
B
.
– Pull off the right side cover sideways and remove it toward the
front.
