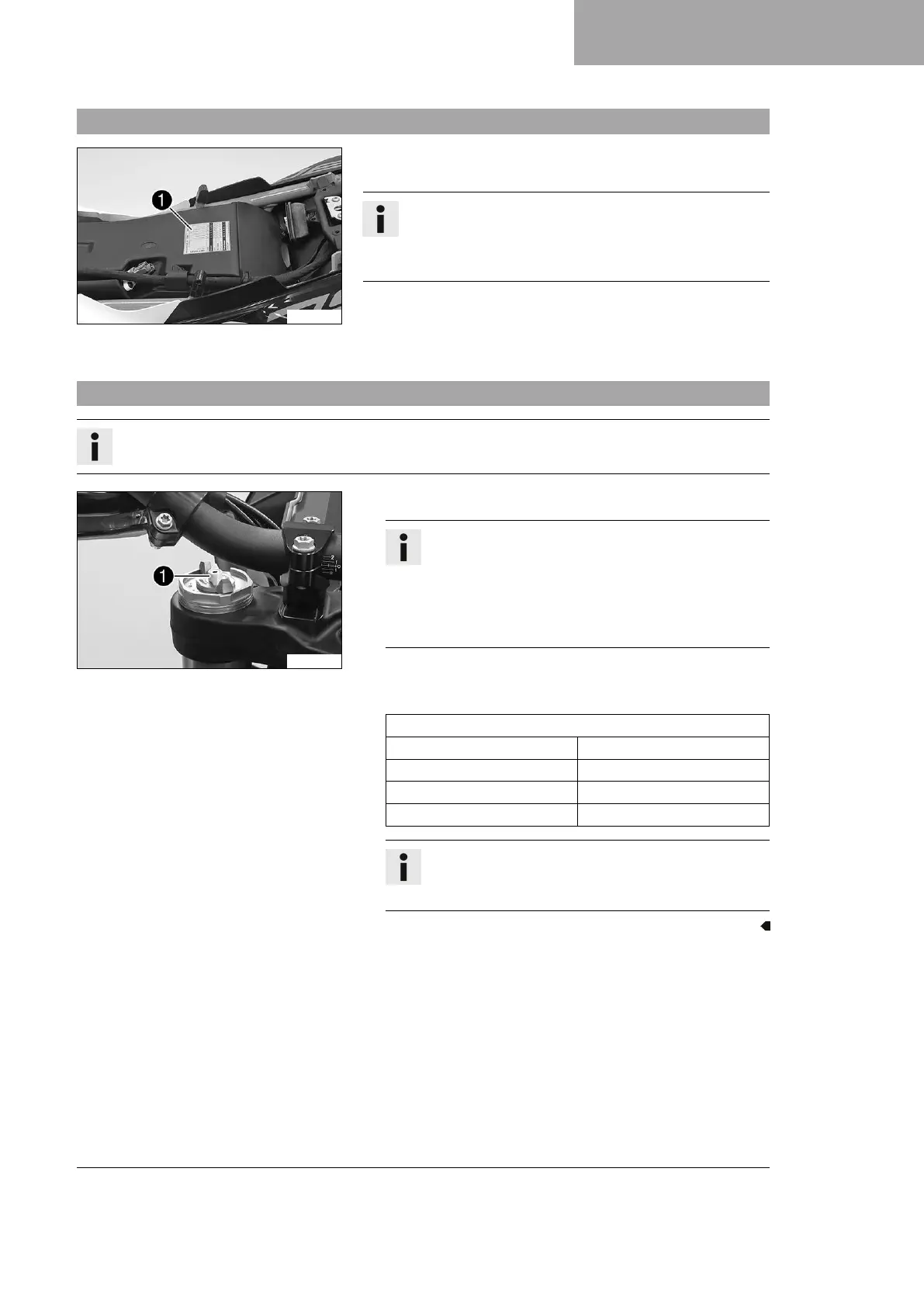

TUNING THE CHASSIS 12
75
12.1 Fork/shock absorber
F02092-10
The fork and the shock absorber offer many options of adapting
the suspension to the riding style and the payload.
Info
The recommendations for the suspension setting are shown
in table
1
. The table is located under the seat on the air
filter box.
These adjustments are guidelines and should always be the basis
for a suspension setting. If the guidelines are not adhered to,
the riding characteristics could deteriorate, particularly at high
speeds.
12.2 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
F02024-10
–
Turn white adjuster
1
clockwise as far as it will go.
Info
Adjuster
1
is located at the upper end of the left fork
leg.
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 15 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
