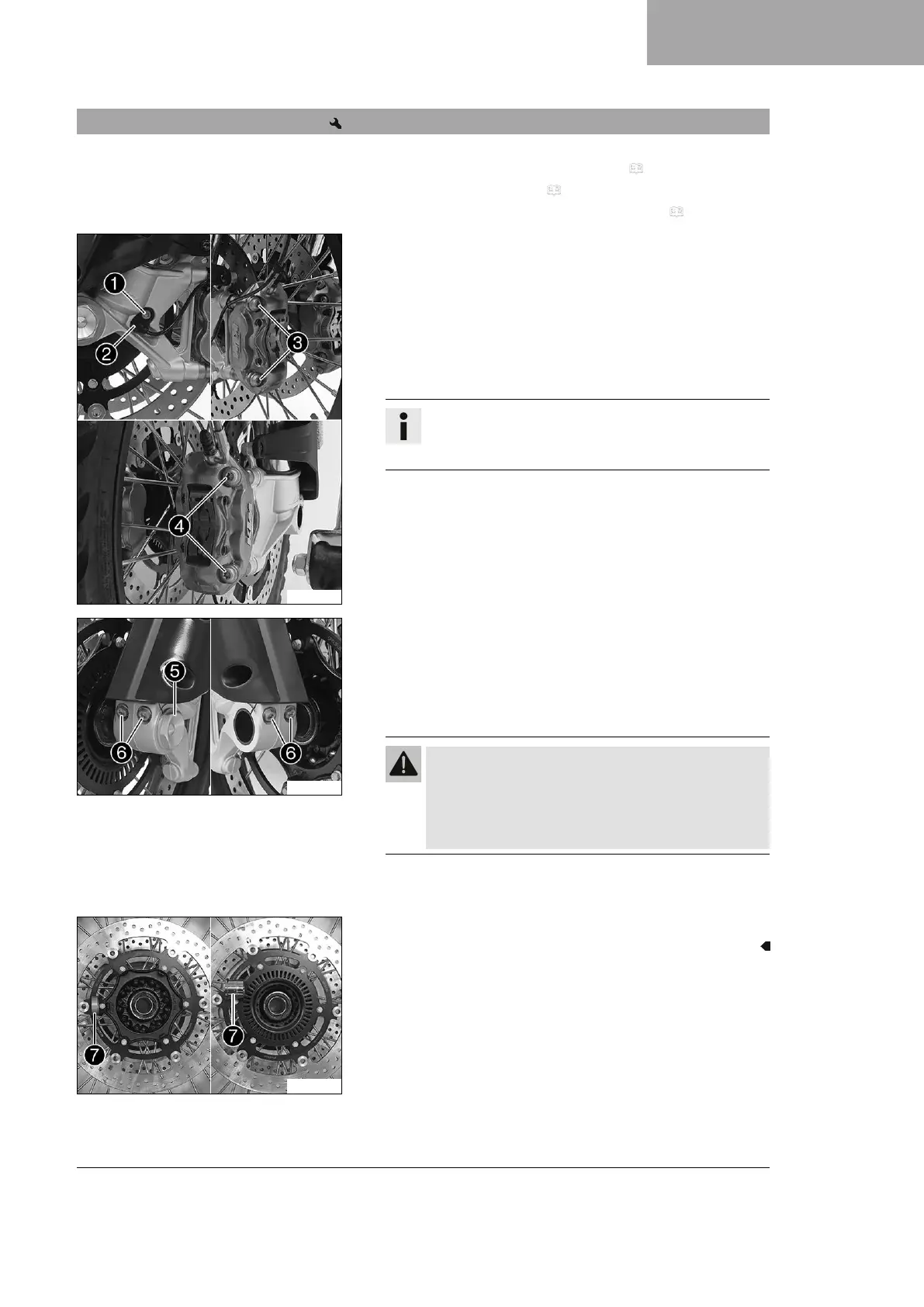

15.1 Removing the front wheel
Preparatory work
– Raise motorcycle with rear lifting gear. ( p. 81)
– Remove the front fender. ( p. 94)
– Lift the motorcycle with the front lifting gear. ( p. 81)
F02066-10
Main work
–
Remove screw
1
and pull wheel speed sensor
2
out of the
hole.
–
Remove screws
3
and
4
.
– Press back the brake linings by slightly tilting the left and right
brake caliper laterally on the brake disc. Pull the left and right
brake caliper carefully back from the brake disc and hang to
the side.
Info
Do not operate the hand brake lever if the brake
calipers have been removed.
F02067-10
–
Loosen screw
5
by several rotations.
–
Loosen screws
6
.
–
Press on screw
5
to push the wheel spindle out of the axle
clamp.
–
Remove screw
5
.
Warning
Danger of accidents Damaged brake discs reduce the
braking effect.
– Always lay the wheel down in such a way that the
brake discs are not damaged.
–
Hold front wheel and remove wheel spindle. Take the front
wheel out of the fork.
F01964-10
–
Remove spacers
7
.
