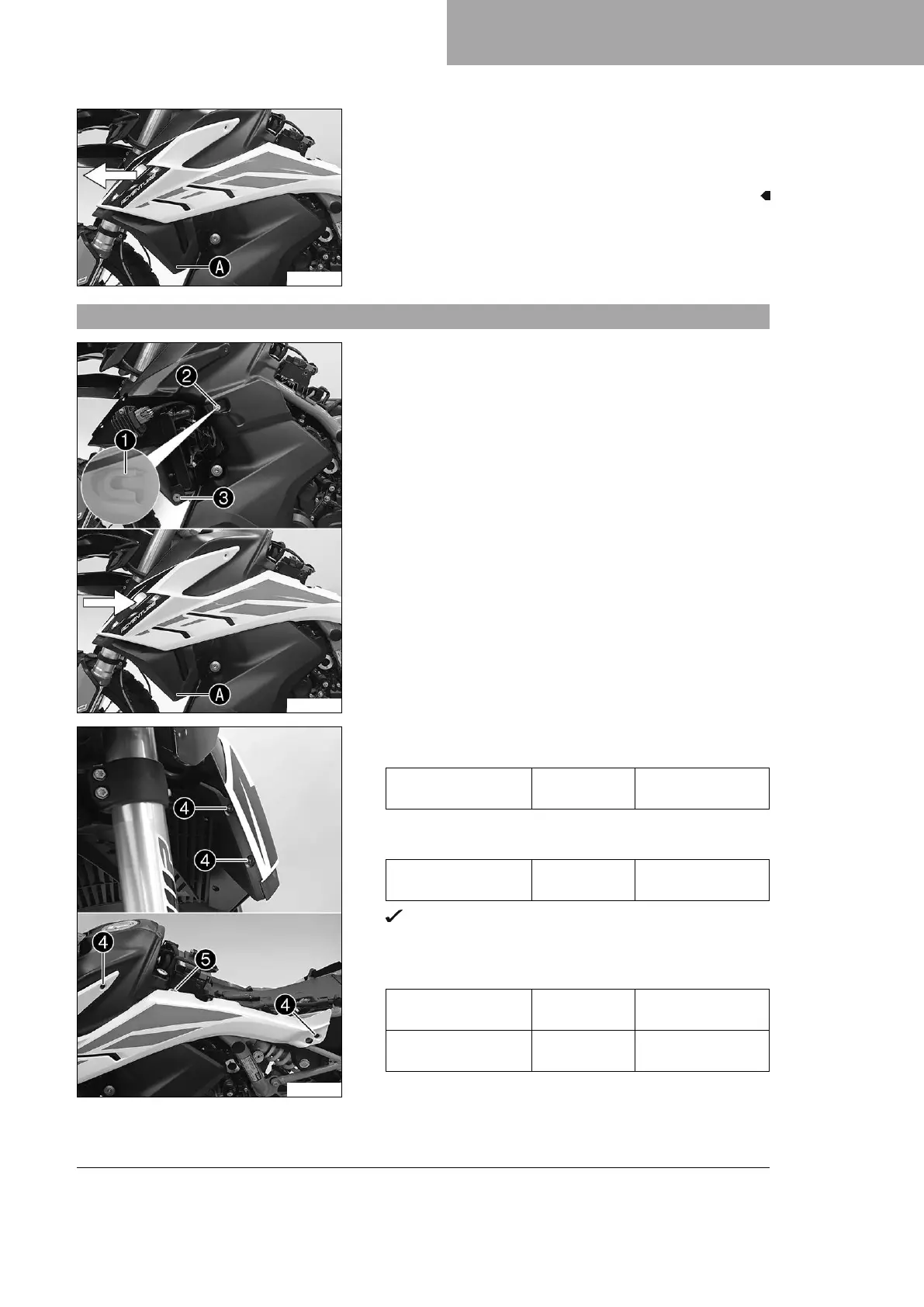

SERVICE WORK ON THE CHASSIS 13
91
F02057-10
– Remove the left fuel tank spoiler from the rubber bushing in
area
A
.
– Pull off the left fuel tank spoiler sideways and remove it toward
the front.
13.19 Installing the left fuel tank spoiler
F02061-10
Main work
–
Position the left fuel tank spoiler with holding lug
1
on bush-
ing
2
and push backward laterally.
–
Press the fuel tank spoiler into rubber bushing
3
in area
A
.
F02047-10
–
Mount screws
4
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Mount screw
5
, but do not tighten yet.
Guideline
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
The front edge of the left fuel tank spoiler is evenly
aligned.
– Tighten all the screws of the left fuel tank spoiler.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
