8 ERGONOMICS
58
Info
When the adjusting screw is turned clockwise, the
clutch lever moves closer to the handlebar.
When the adjusting screw is turned counterclockwise,
the clutch lever moves away from the handlebar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.

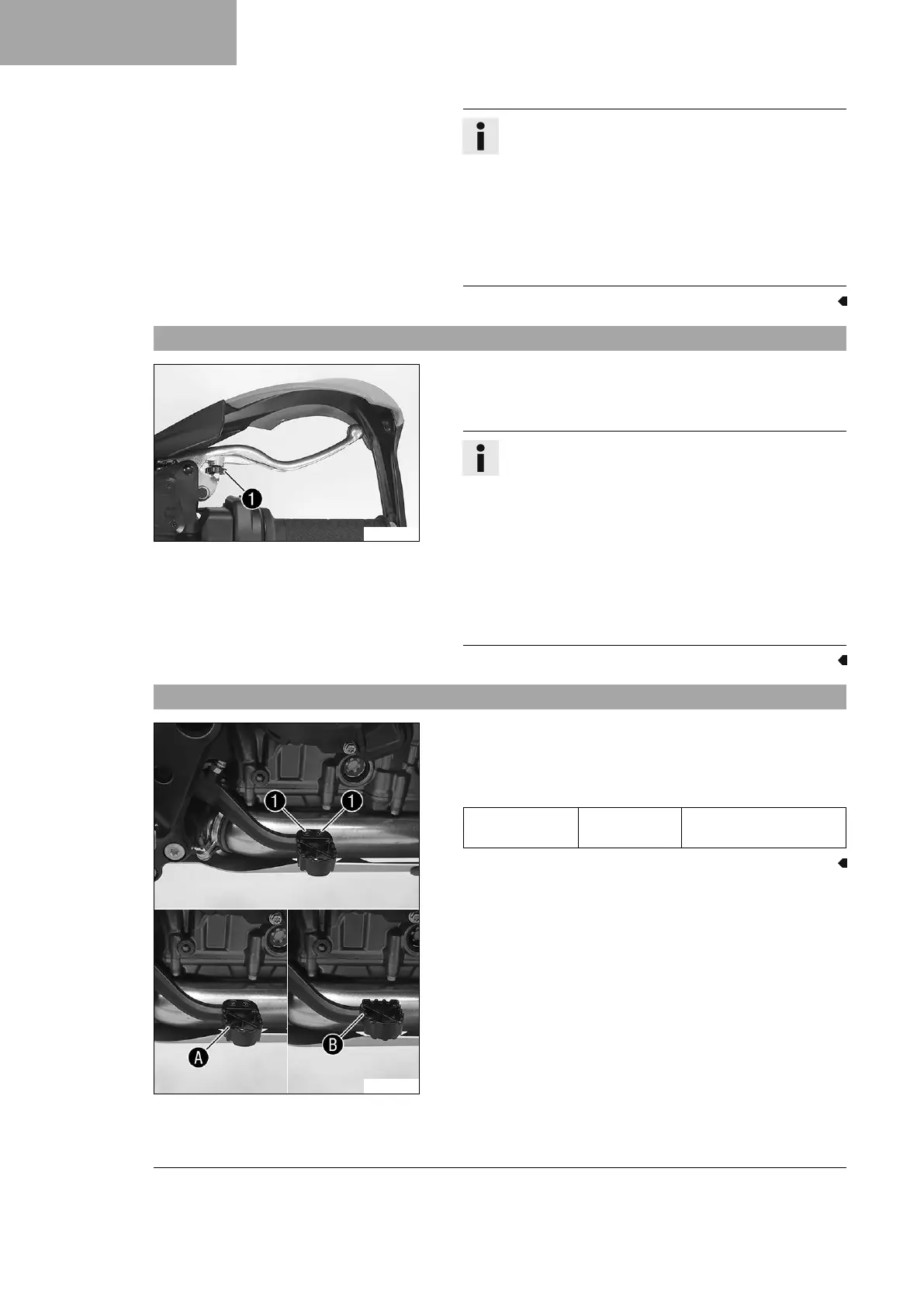

8.5 Adjusting the basic position of the hand brake lever
F02005-11
– Push hand brake lever forward.
– Adjust the basic position of the hand brake lever to your hand
size by turning adjusting screw
1
.
Info
Turn the adjusting screw clockwise to decrease the
distance between the hand brake lever and the han-
dlebar.
Turn the adjusting screw counterclockwise to increase
the distance between the hand brake lever and the han-
dlebar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.
8.6 Adjusting foot brake lever stub
F01946-10
–
Remove screws
1
with the foot brake lever stub.
–
Move the foot brake lever stub into desired position
A
or
B
.
Mount and tighten screws
1
.
Guideline
Screw, foot
brake lever stub
M5 5 Nm (3.7 lbf ft)
Loctite
®
243™
