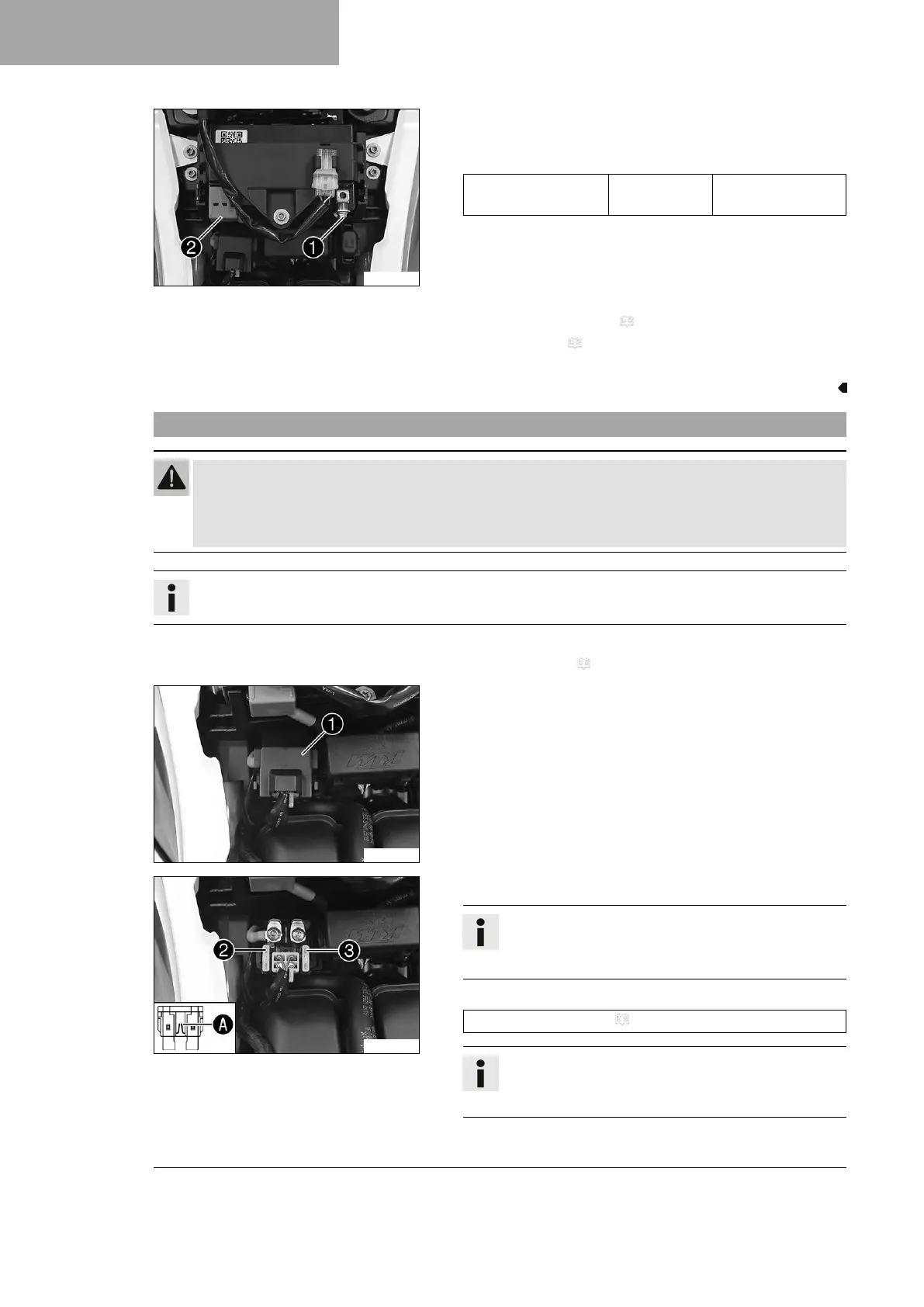

16 ELECTRICAL SYSTEM
124
F02079-10
–
Mount positive terminal cover
2
.
–
Connect negative cable
1
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M6 4.5 Nm
(3.32 lbf ft)
Finishing work
– Install the battery cover. ( p. 90)
– Mount the seat. ( p. 82)
– Set time and date.
16.5 Changing the main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The main fuse protects all electrical power consumers of the vehicle. The main fuse is under the seat.
Preparatory work
– Remove the seat. ( p. 82)
F02080-10
Main work
–
Remove protection cap
1
.
F02081-10
–
Remove faulty main fuse
2
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
3
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109130) ( p. 149)
Tip
Insert a new spare fuse into the starter relay to have it
available when needed.
