16 ELECTRICAL SYSTEM
126
Tip
Insert spare fuse
4
in the fuse box so that it is
available if needed.
– Mount the protection cap.
Finishing work
– Mount the seat. ( p. 82)

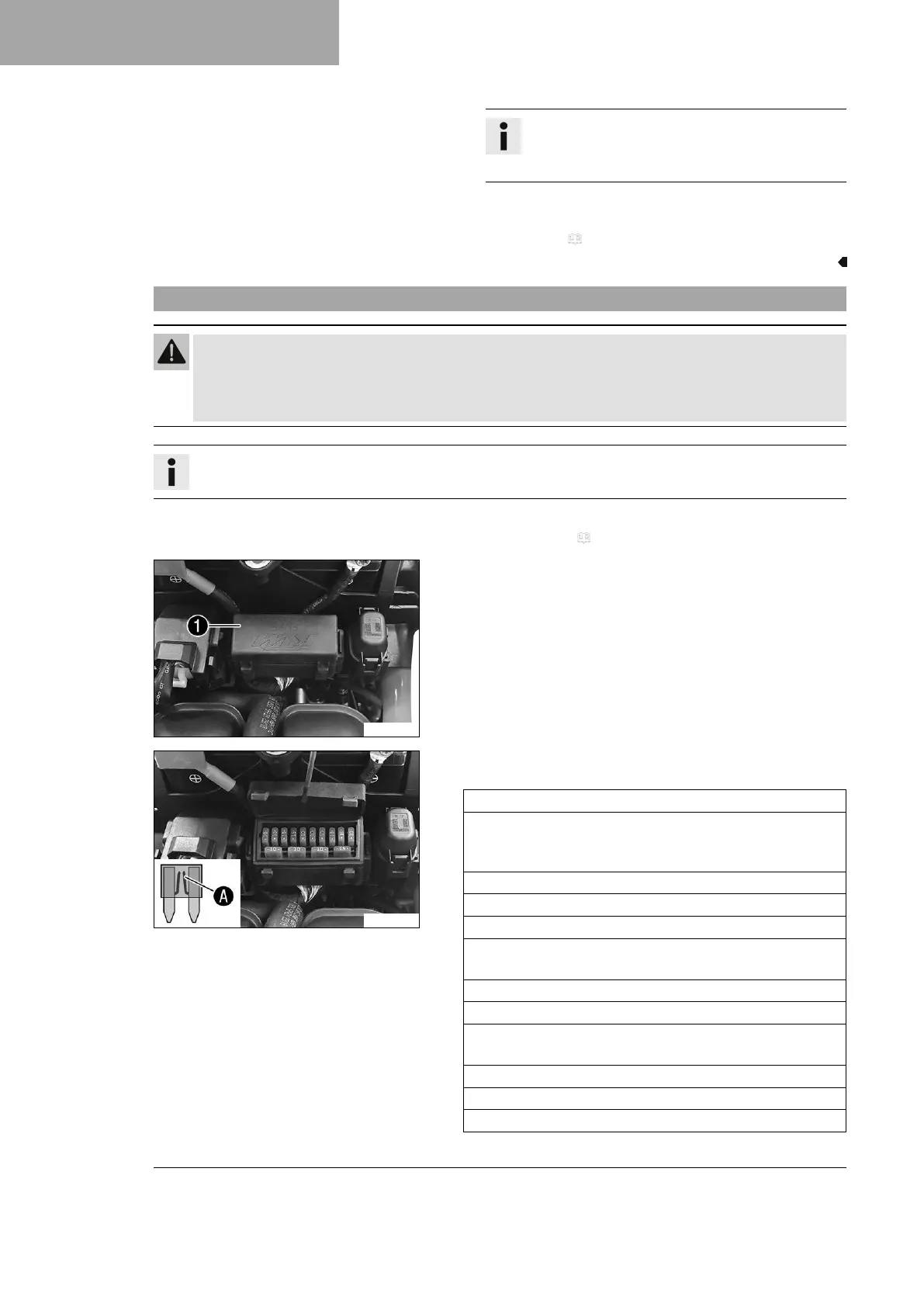

16.7 Changing the fuses of individual electrical power consumers
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the seat. ( p. 82)
F02083-10
Main work
–
Open fuse box cover
1
.
F02110-10
– Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - ignition, alarm system (optional)
Fuse 2 - 10 A - ignition, engine control unit, electronic fuel
injection, fuel vapor retention system, lambda sensor, immo-
bilizer
Fuse 3 - 10 A - fuel pump
Fuse 4 - 15 A - radiator fan
Fuse 5 - 10 A - horn, combination instrument, brake light
Fuse 6 - 10 A - high beam, low beam, position light, tail
light, license plate lamp
Fuse 7 - 10 A - ACC1
Fuse 8 - 10 A - ACC2
Fuse 9 - 10 A - ABS control unit, diagnostics connector, 5D
sensor, TPMS (optional)
Fuse 10 - 10 A - light control unit
Fuse SPARE - 10 A - spare fuses
Fuse SPARE - 15 A - spare fuses
