COMBINATION INSTRUMENT 7
27

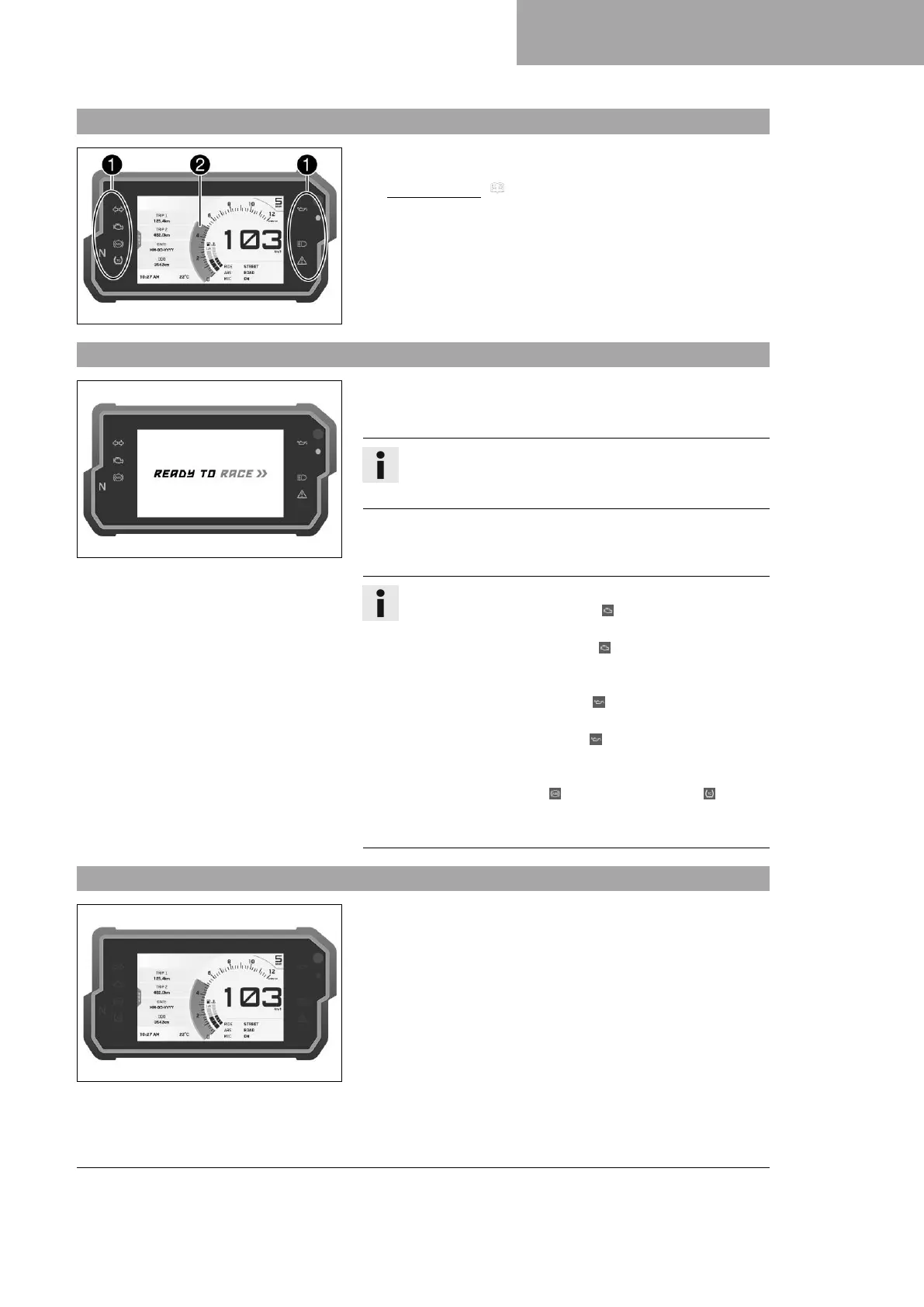

7.1 Combination instrument
F01763-10
The combination instrument is attached in front of the handlebar.
The combination instrument is divided into two function areas.
1
indicator lamps ( p. 29)
Display
2
7.2 Activation and test
F01764-01
Activation
The combination instrument is activated when the ignition is
switched on.
Info
The brightness of the displays is controlled by an ambient
light sensor in the combination instrument.
Test
The welcome text appears on the display and all indicator lamps
are briefly activated for a function check.
Info
The malfunction indicator lamp always lights up as long
as the engine is not running. If the engine is running and
the malfunction indicator lamp lights up, stop (taking
care not to endanger yourself or other road users in the pro-
cess) and contact an authorized KTM workshop.
The oil pressure warning lamp always lights up as long
as the engine is not running. If the engine is running and
the oil pressure warning lamp lights up, stop immedi-
ately (taking care not to endanger yourself or other road
users in the process) and switch off the engine.
The ABS warning lamp and TC indicator lamp light up
until a speed of approx. 6 km/h (approx. 4 mph) or more
has been reached.
7.3 Day-night mode
F01765-01
Day mode is shown in a bright color.
