WHEELS, TIRES 15
111
F02070-10

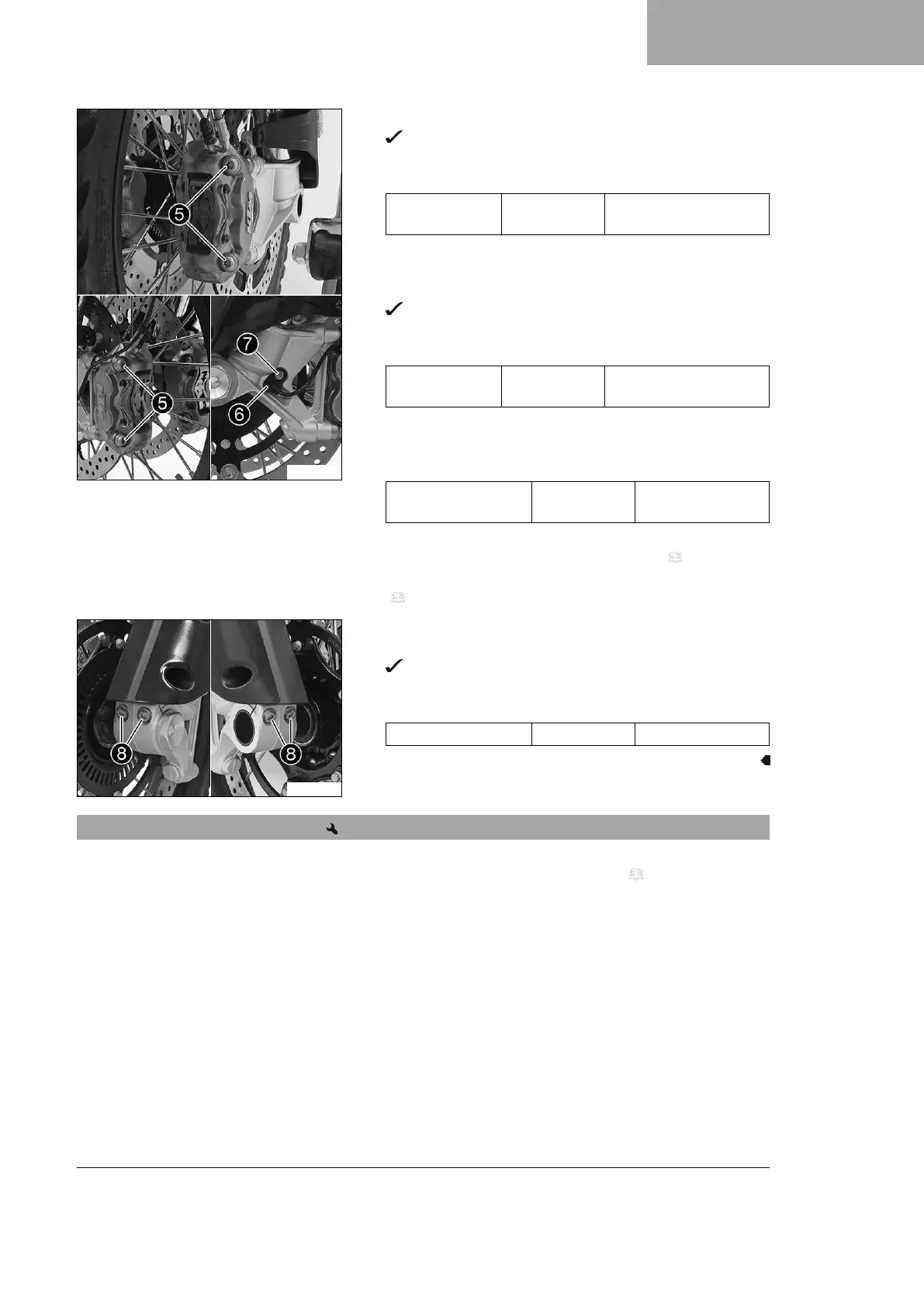

– Position both brake calipers.
The brake linings are correctly positioned.
–
Mount screws
5
on both sides but do not tighten yet.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Secure the hand brake lever in the activated position.
The brake calipers straighten.
–
Tighten screws
5
on both sides.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Position wheel speed sensor
6
in the hole.
–
Mount and tighten screw
7
.
Guideline
Screw, front wheel
speed sensor
M6 10 Nm (7.4 lbf ft)
– Remove the locking piece of the hand brake lever.
– Take the motorcycle off the front lifting gear. ( p. 82)
– Remove the rear of the motorcycle from the lifting gear.
( p. 81)
F02067-11
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
8
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
15.3 Removing the rear wheel
Preparatory work
– Raise motorcycle with rear lifting gear. ( p. 81)
