13 SERVICE WORK ON THE CHASSIS
90
13.17 Installing the battery cover

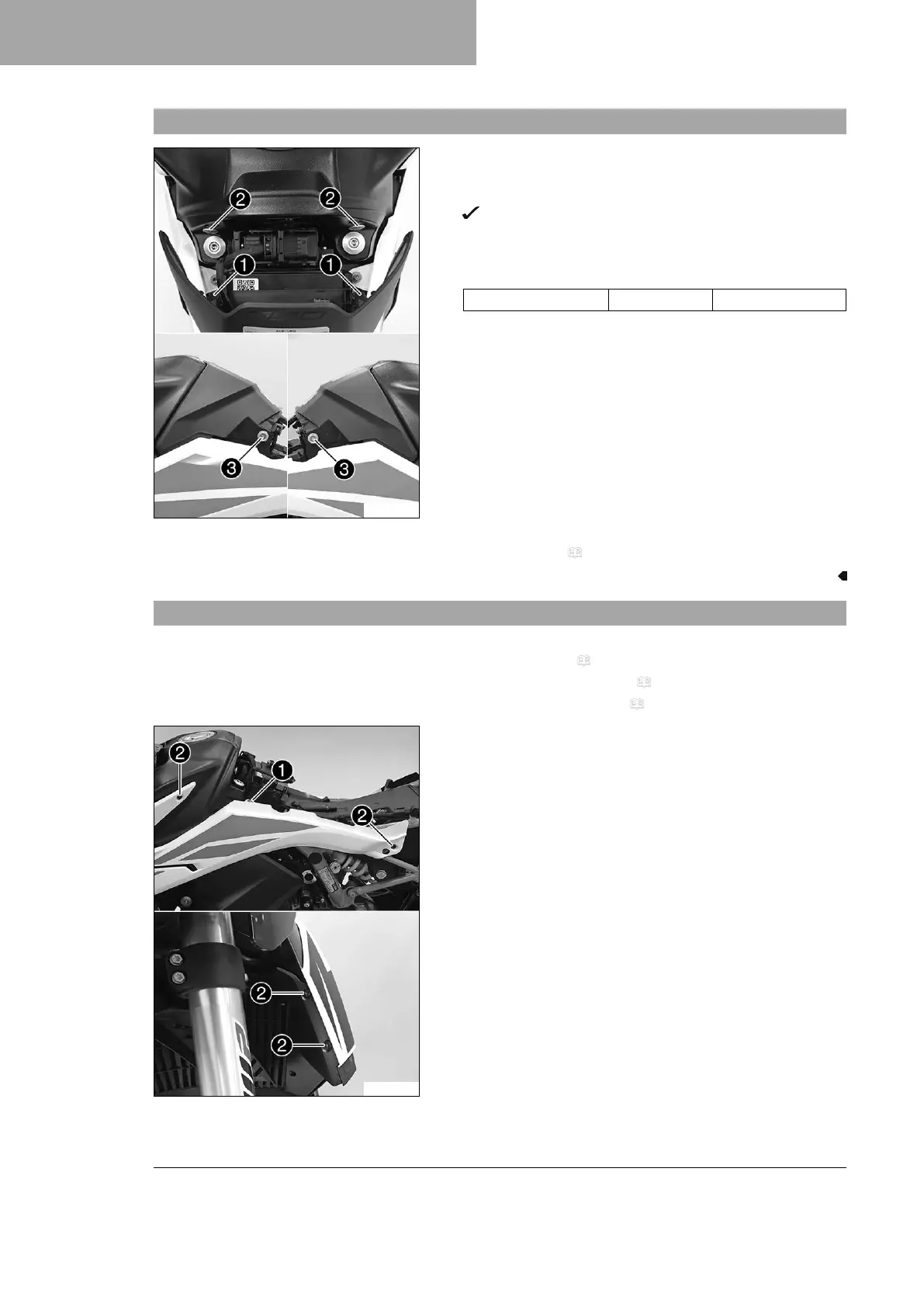

F02045-10
Main work
–
Position the battery cover with holding lugs
1
on
bushings
2
and push downward.
The battery cover engages on the left and right under the
fuel tank spoiler.
–
Mount screws
3
with the bushings and tighten.
Guideline
Screw, seat fixing M6 5 Nm (3.7 lbf ft)
Finishing work
– Mount the seat. ( p. 82)
13.18 Removing left fuel tank spoiler
Preparatory work
– Remove the seat. ( p. 82)
– Remove the left side cover. ( p. 87)
– Remove the battery cover. ( p. 89)
F02046-10
Main work
–
Remove screw
1
.
–
Remove screws
2
.
