Kubota K008-5 User Manual

Assembly and functions
W9215-8135-1 49
06/2021
ASSEMBLY AND FUNCTIONS

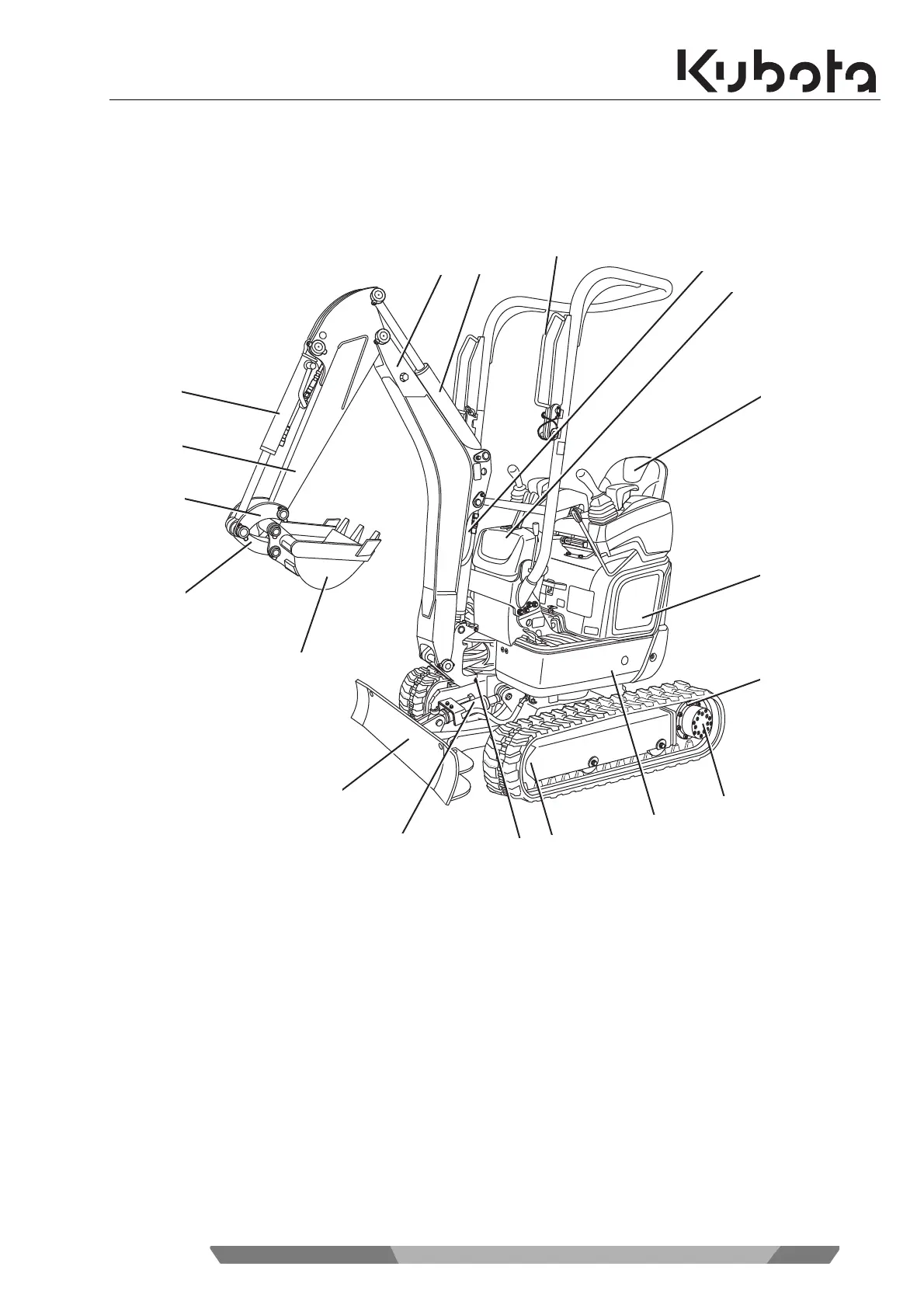

Component overview
8
9
10
11
7
6
5
4
3
2
1
12
13
14
15
16
17
18
19
1. Boom
2. Arm cylinder
3. Boom cylinder
4. Control console
5. Operator's seat
6. Engine hood
7. Drive sprocket
8. Drive unit
9. Swivel frame
10. Idler
11. Swing block
12. Dozer cylinder
13. Dozer blade
14. Bucket
15. Bucket linkage 1
16. Bucket linkage 2 and 3
17. Arm
18. Bucket cylinder
19. Handrail

Kubota K008-5 Specifications

General

Make	Kubota
Model	K008-5
Category	Compact Excavator
Bucket Capacity	0.022 m³
Max Dig Depth	1720 mm
Max Dump Height	2.43 m
Overall Length	2.75 m
Overall Width	700 mm
Fuel Tank Capacity	12 L
