Kubota K008-5 User Manual

64 W9215-8135-1
06/2021
Assembly and functions
Hydraulic system U10-5
The left and right control levers activate the hydraulic oil pilot control circuits that will address the corresponding
valve for the cylinder or swivelling motor.
The accumulator allows the boom and the arm to be lowered in case of an engine failure.
The drive levers, the boom swing pedal and the auxiliary port pedal activate the valve for the corresponding cylin-
ders, drive unit or the implement itself.
The hydraulic oil tank contains the suction filters and the return filter.
1
2
3
4
5

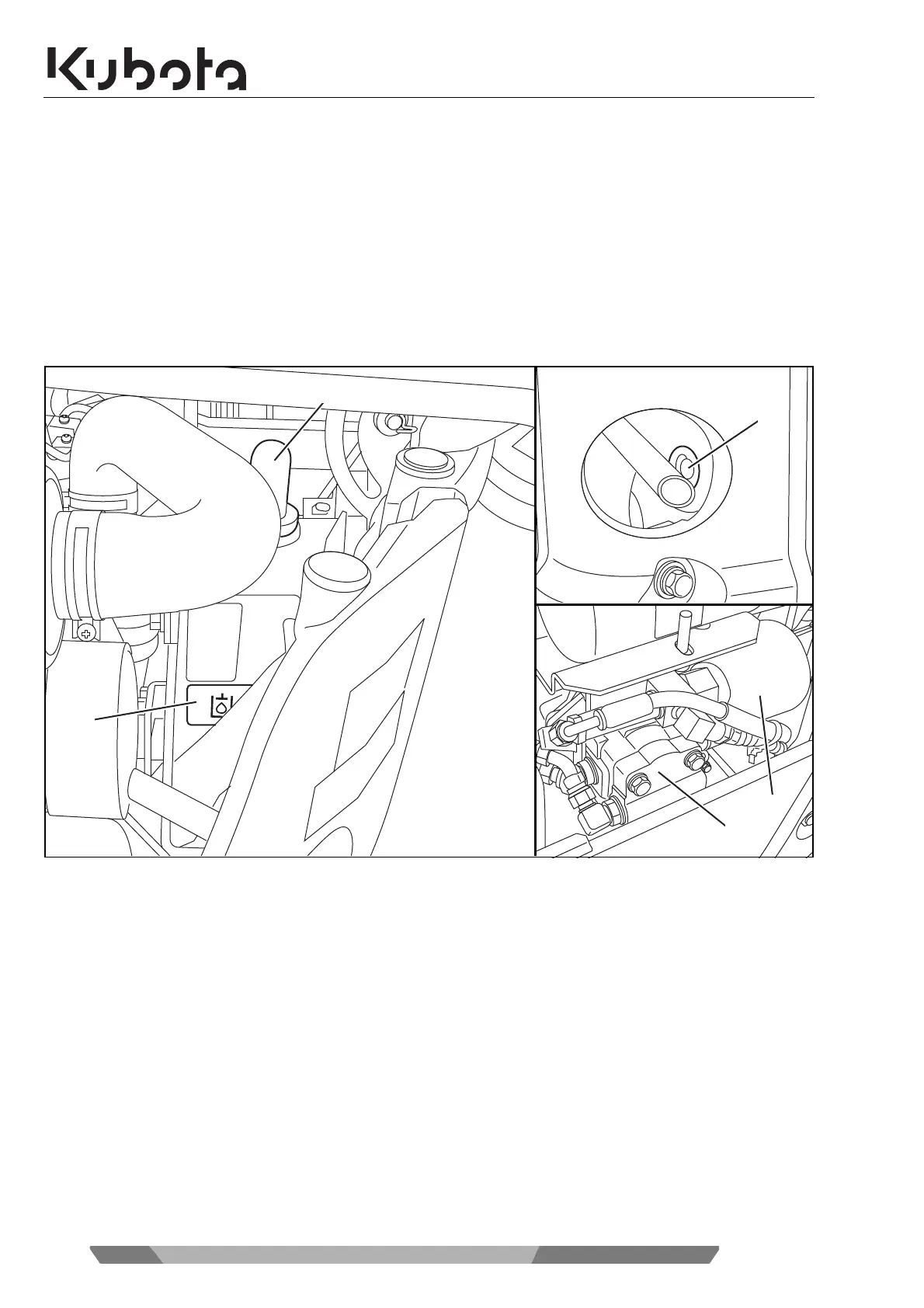

1. Cap
2. Hydraulic oil tank
3. Sight glass for hydraulic oil level
4. Hydraulic oil pump
5. Accumulator

Kubota K008-5 Specifications

General

Make	Kubota
Model	K008-5
Category	Compact Excavator
Bucket Capacity	0.022 m³
Max Dig Depth	1720 mm
Max Dump Height	2.43 m
Overall Length	2.75 m
Overall Width	700 mm
Fuel Tank Capacity	12 L
