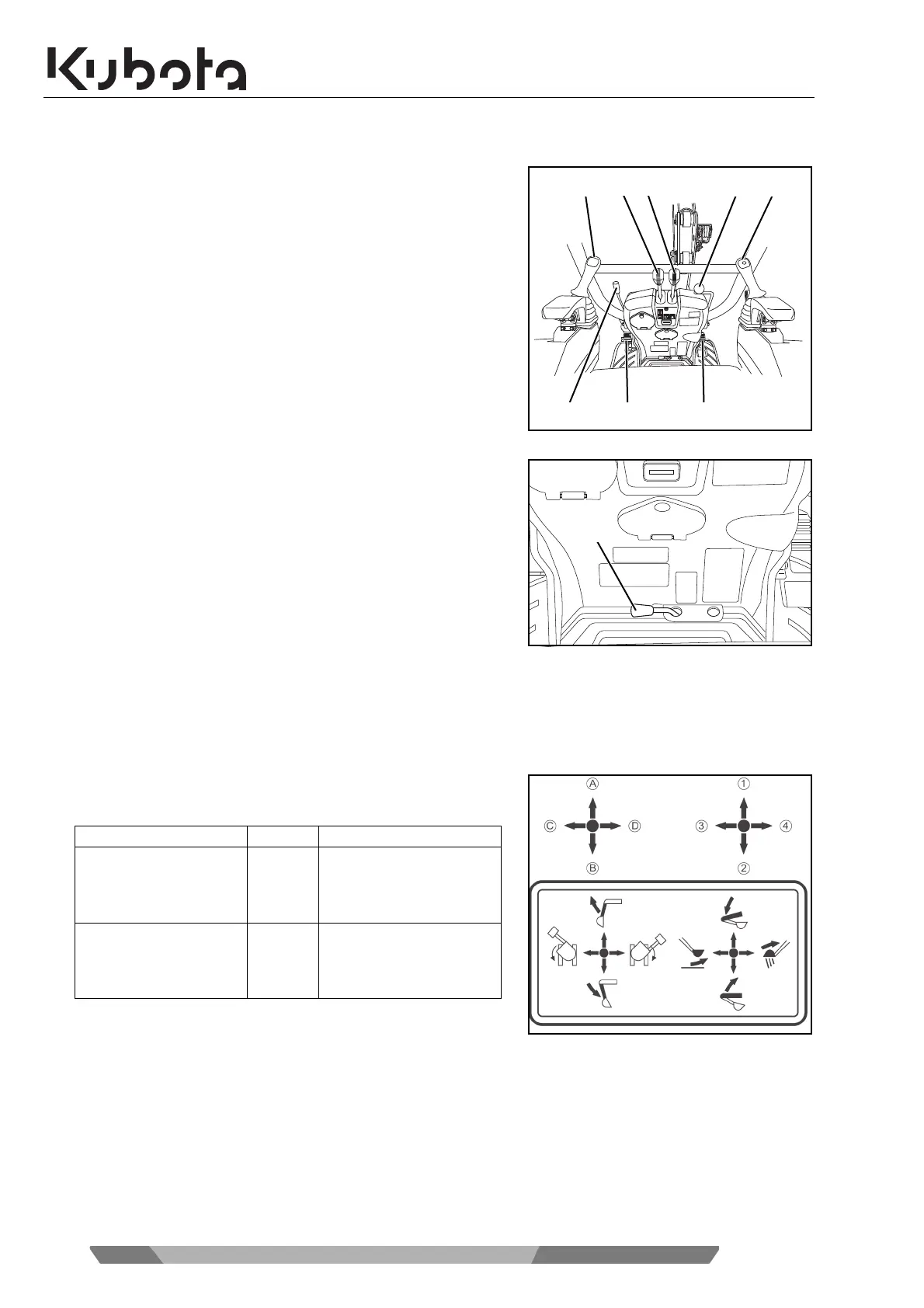

Assembly and functions
Controls U10-5
The controls includes the following components:
1. Left control lever
2. Left drive lever
3. Right drive lever
4. Right control lever
5. Dozer control lever
6. Boom swing pedal
7. Control lever lock (not shown)
8. Auxiliary port pedal
9. Throttle lever
10. Selector lever for the dozer/extendable track width
Description of the controls
1. Left control lever
The left control lever is used to swivel the swivel frame and move the arm. See the table below for details.
The figure shows, in connection with the following table, the
functions of the left and right control levers.
2. Left drive lever
With the drive levers the excavator can be driven forwards and backwards and also turned. The left drive lever
controls the left track.
3. Right drive lever
With the drive levers the excavator can be driven forwards and backwards and also turned. The right drive
lever controls the right track.
Control levers Movement
Right control lever 1
2
3
4
Lower boom
Raise boom
Bucket crowd
Bucket dump
Left control lever A
B
C
D
Arm dump
Arm crowd
Swivel frame to the left
Swivel frame to the right
1
2 3
5
6
4
89
10

Kubota K008-5 Specifications

General

Make	Kubota
Model	K008-5
Category	Compact Excavator
Bucket Capacity	0.022 m³
Max Dig Depth	1720 mm
Max Dump Height	2.43 m
Overall Length	2.75 m
Overall Width	700 mm
Fuel Tank Capacity	12 L
