Assembly and functions
W9215-8135-1 55
06/2021
Displays and indicators - description
1. Fuel level indicator
The fuel level indicator lights up when there are only 2 l of fuel left in the fuel tank.
The machine can keep working for about 1 hour after it lights up. However, if you continue to use it, the ma-
chine may suddenly stop and cause danger. It's recommended to refuel immediately.
2. Engine oil pressure indicator
The indicator lights up when the starter switch is switched to the RUN position. It also lights up when the en-
gine oil pressure drops considerably and upon stopping the engine.
3. Charge lamp
The indicator lights up when the starter switch is switched to the RUN position. The charge lamp goes off as
soon as the engine has started.
4. Time meter
The time meter indicates in intervals of 0.1 hours (i.e. 6 minutes) the hours of operation of the machine.
5. Coolant temperature indicator
The warning lamp lights up when the temperature of the coolant lies outside of the normal range.

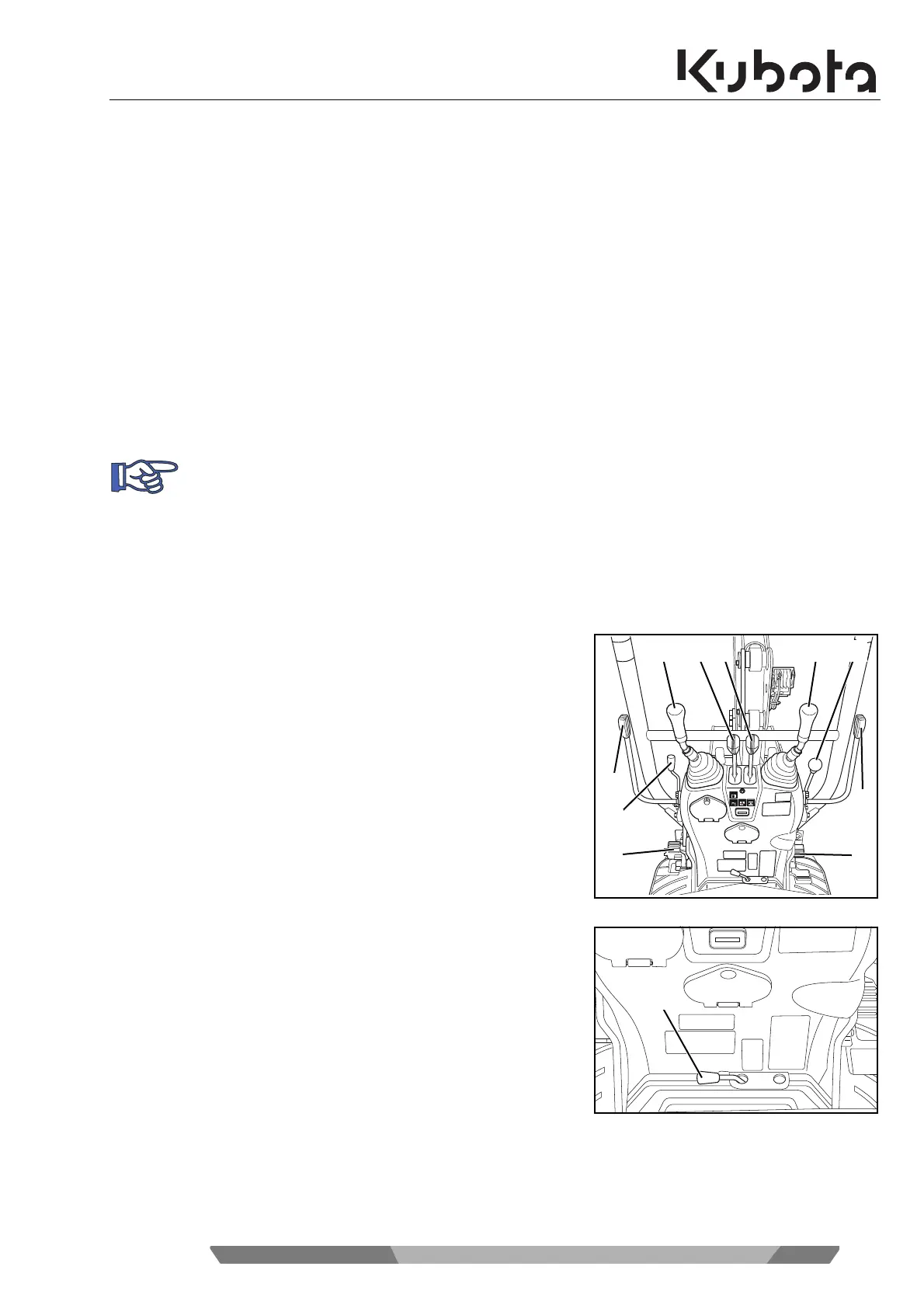

Controls K008-5
The controls includes the following components:
1. Left control lever
2. Left drive lever
3. Right drive lever
4. Right control lever
5. Dozer control lever
6. Boom swing pedal
7. Control lever lock
8. Auxiliary port pedal
9. Throttle lever
10. Selector lever for the dozer/extendable track width
The time meter even continues when the engine has stopped but the starter switch is still in the RUN
position
