ENGINE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
1-S21

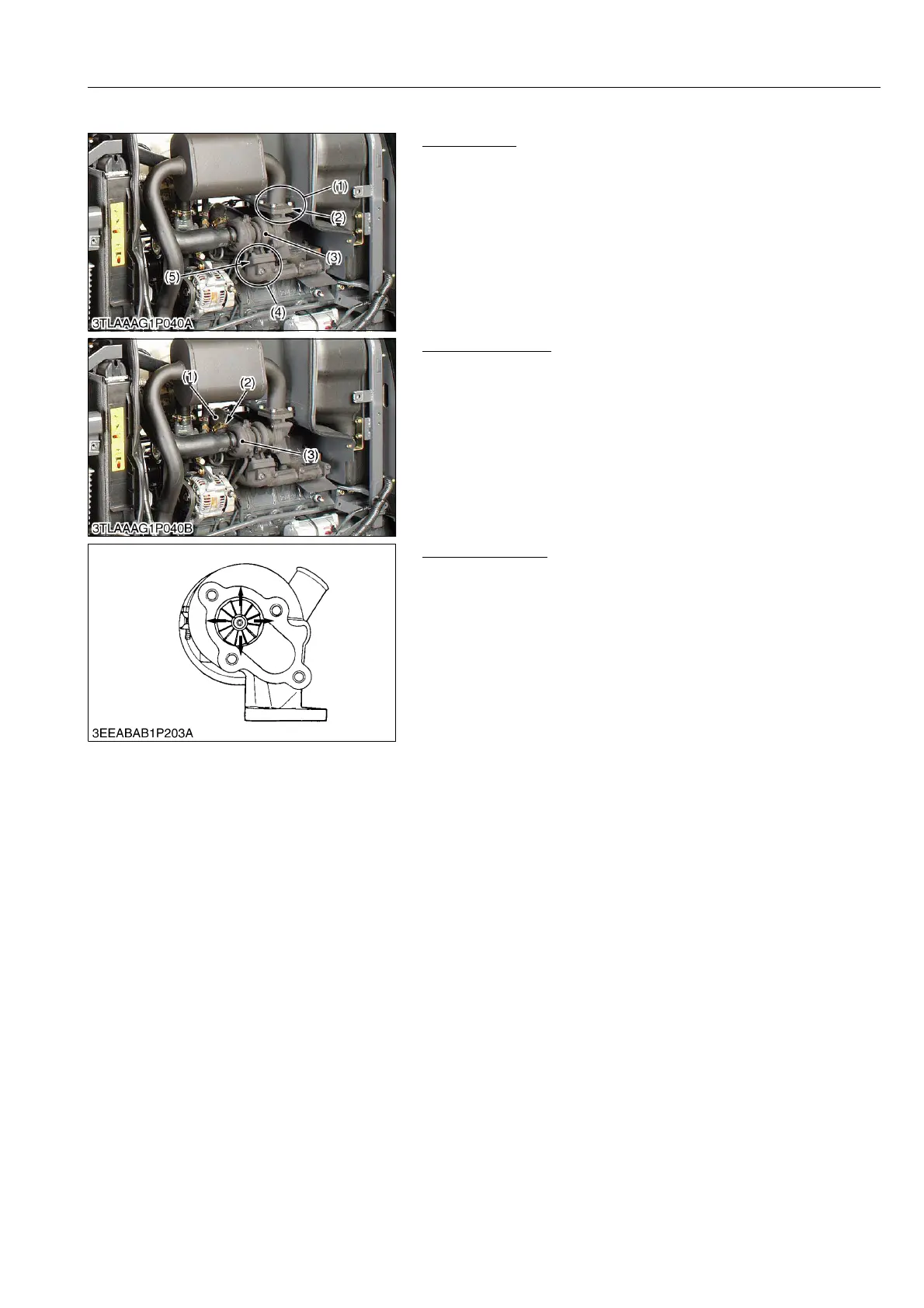

[5] TURBOCHARGER (IF EQUIPPED)
Turbine Side
1. Check the exhaust port (1) and inlet port (4) side of the turbine
housing (3) to see if there is no exhaust gas leak.
2. If any gas leak is found, retighten the bolts and nuts or replace
the gasket (2) / (5) with new one.
9Y1211167ENS0016US0
Compressor Side
1. Check the inlet pipe 1 (1) of the compressor cover (3) to see if
there is no air leak.
2. Check for loose connections or cracks in the suction side of the
intake pipe.
3. If any air leak is found, change the clamp (2) and or inlet pipes.
9Y1211167ENS0017US0
Radial Clearance
1. If the wheel contact to the housing, replace the turbocharger
assembly with new one.
9Y1211167ENS0018US0
(1) Exhaust Port
(2) Gasket
(3) Turbine Housing
(4) Inlet Port
(5) Gasket
(1) Inlet Pipe 1
(2) Clamp
(3) Compressor Cover
To Next Page
