Kubota WSM L3540-II User Manual

HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-M14

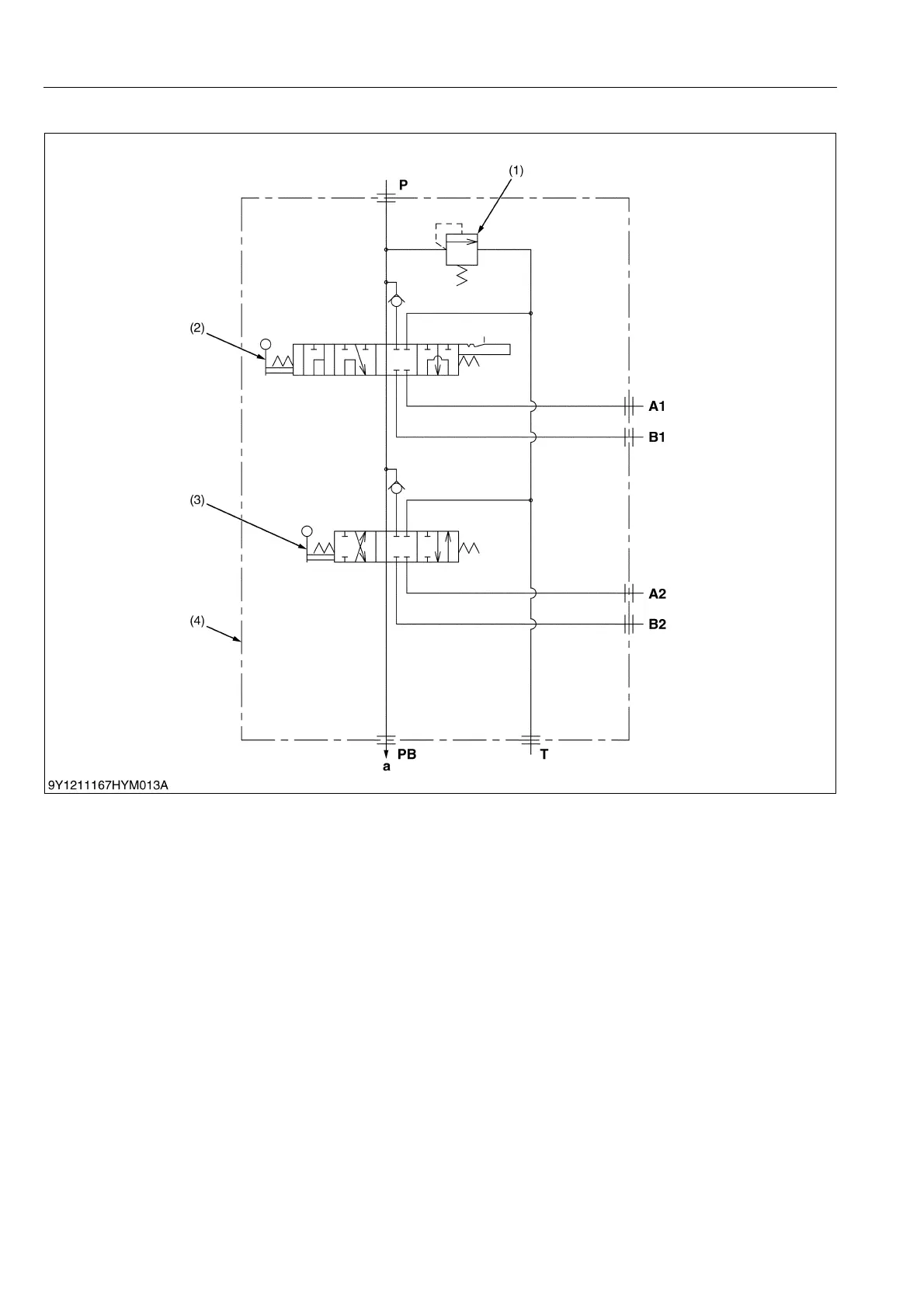

[2] FRONT LOADER HYDRAULIC CIRCUIT
9Y1211167HYM0017US0
(1) Relief Valve
(2) Boom Control Valve
(3) Bucket Control Valve
(4) Front Loader Control Valve
P: Pump Port
T: Tank Port
A1: A1 Port
A2: A2 Port
B1: B1 Port
B2: B2 Port
PB: Power Beyond Port
a: To Hydraulic Block
