HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-M1
1. STRUCTURE
[1] MANUAL TRANSMISSION AND GLIDE SHIFT TRANSMISSION

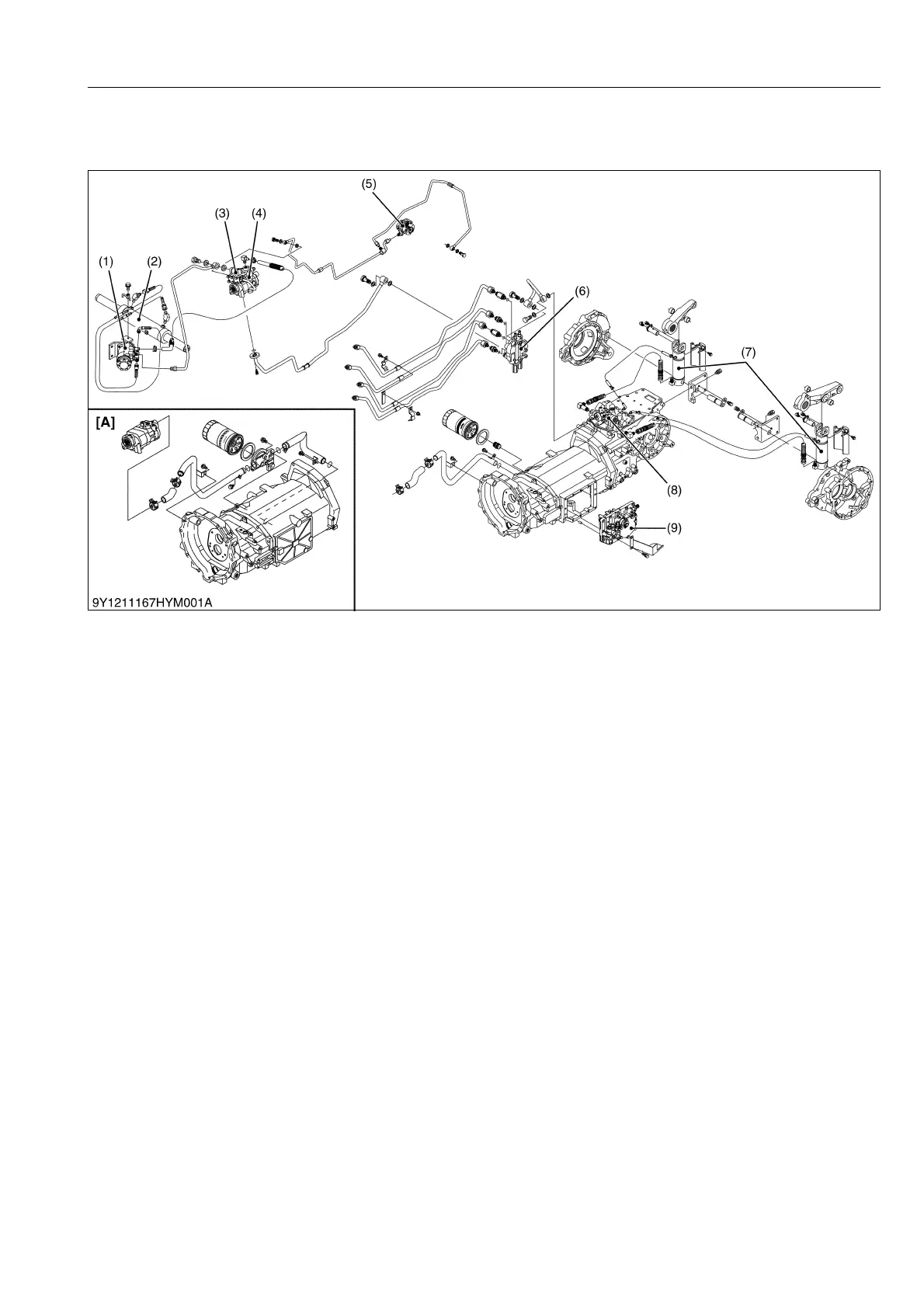

The hydraulic system of machine consists of a hydraulic pump (4), front loader control valve (6), hydraulic cylinder
(7) and other components.
9Y1211167HYM0001US0
(1) Power Steering Controller
(2) Power Steering Cylinder
(3) Regulating Valve
(4) Hydraulic Pump
(5) PTO Solenoid Valve
(6) Front Loader Control Valve
(7) Hydraulic Cylinder
(8) Hydraulic Block
(9) GST Valve [GST Model Only]
[A]: Manual Transmission Model
