TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-S29
(2) Hydraulic Checking
Checking GST System Pressure
1. Start the engine and warm up the transmission fluid, and then
stop the engine.
2. Remove the GST system pressure checking port (1) plug (PT
1/8) on the GST valve (2).
3. Install the GST valve adaptor (Refer to "8. SPECIAL TOOLS" at
"G. GENERAL" section) to checking port (1), and then install the
threaded joint, cable and pressure gauge.
4. Start the engine and set the idling speed. Set the shift levers to
"Neutral".
5. Measure the pressure.
6. If the measurement is not within factory specifications, adjust
the pressure reducing valve adjustor (4) on the regulating valve
assembly (5).
Condition
• Engine speed
Idling speed
• Oil temperature
40 to 60 °C (104 to 140 °F)
(Reference)
• Turn to clockwise direction → Pressure is increased
• Turn to counterclockwise direction → Pressure is decreased
9Y1211167TRS0021US0
GST system pressure Factory specification
2.30 to 2.50 MPa
23.5 to 25.4 kgf/cm
2
334 to 362 psi

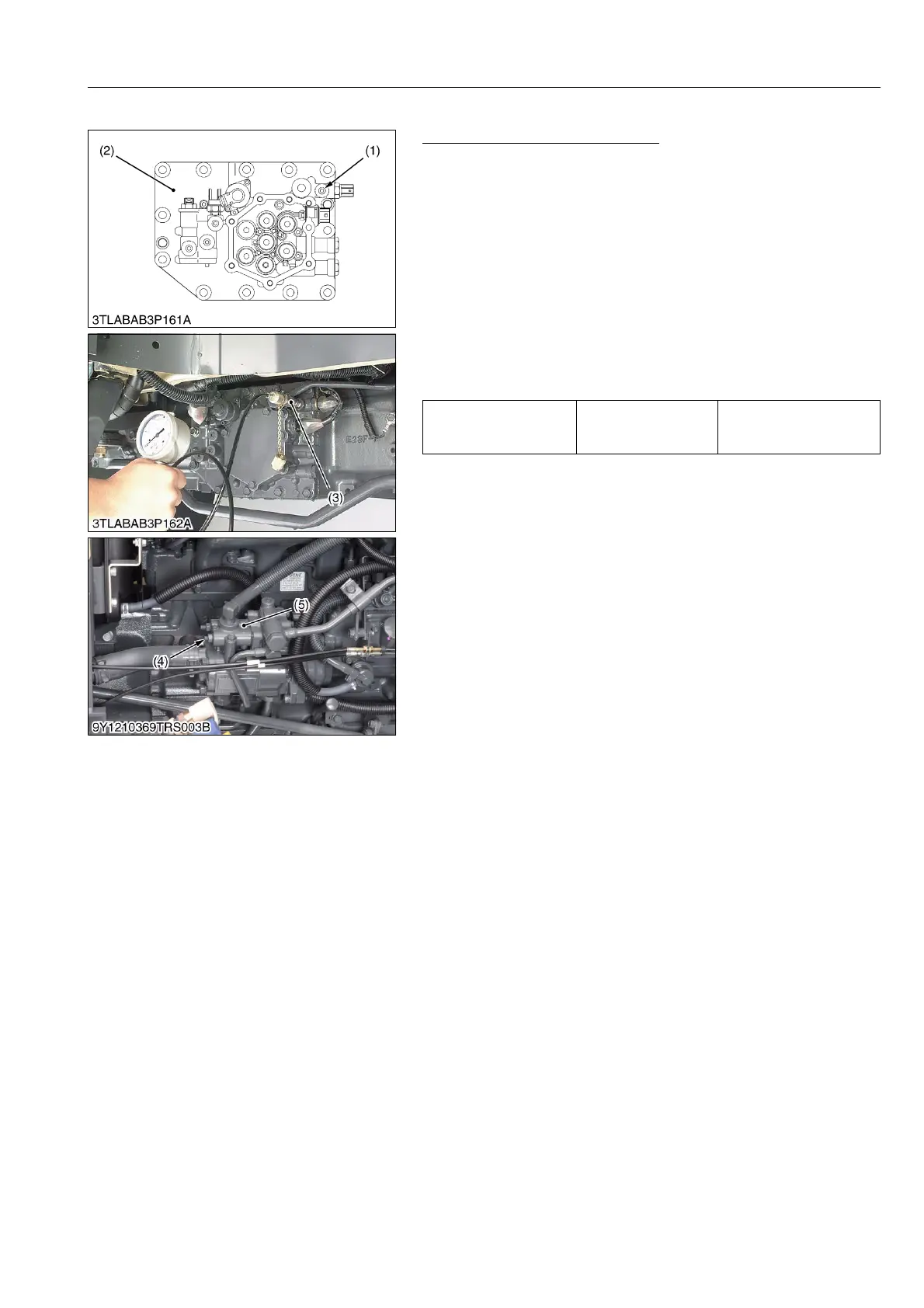

(1) GST System Pressure Checking
Port (PT 1/8)
(2) GST Valve
(3) GST Valve Adaptor
(4) Pressure Reducing Valve Adjustor
(5) Regulating Valve Assembly
