HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-M4
[2] GLIDE SHIFT TRANSMISSION (GST)

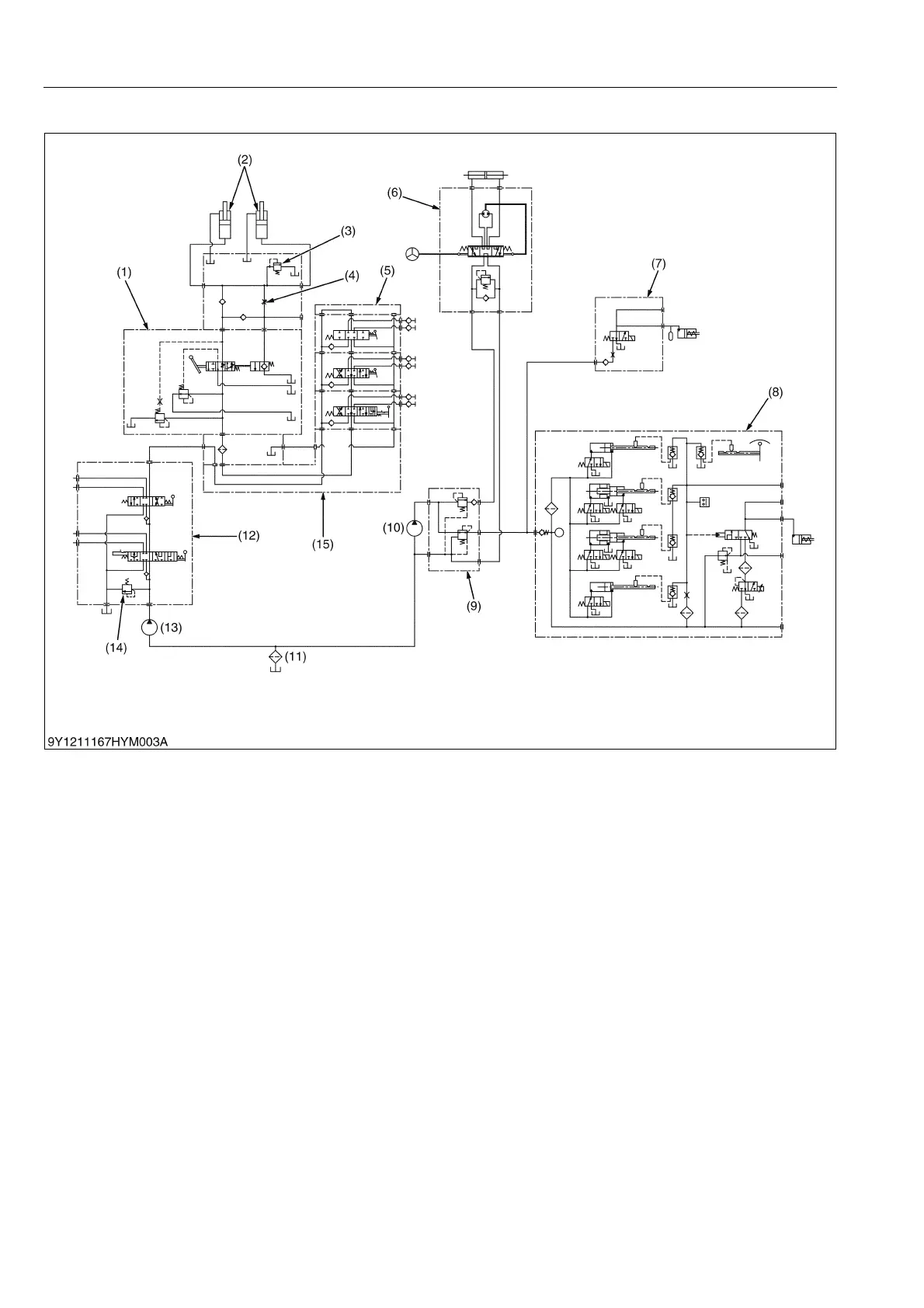

Hydraulic oil operates GST valve assembly (8), power steering controller (6), PTO clutch valve (7) and 3 point
hitch.
9Y1211167HYM0004US0
(1) Position Control Valve
(2) Hydraulic Cylinder
(3) Cylinder Safety Valve
(4) Lowering Speed Adjusting
Valve
(5) Auxiliary Control Valve
(6) Power Steering Controller
(7) PTO Clutch Valve
(8) GST Valve Assembly
(9) Regulating Valve
(10) Hydraulic Pump 2
(11) Oil Filter
(12) Loader Control Valve
(13) Hydraulic Pump 1
(14) Relief Valve
(15) Rear Hydraulic Block
KiSC issued 02, 2015 A
