HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-S8
[2]
HYDRAULIC PUMP (FOR THREE POINT HITCH)
(1)
Pump Test Using Flow-meter
Preparation
1.
Open the bonnet.
2.
Remove the side skirt RH.
3.

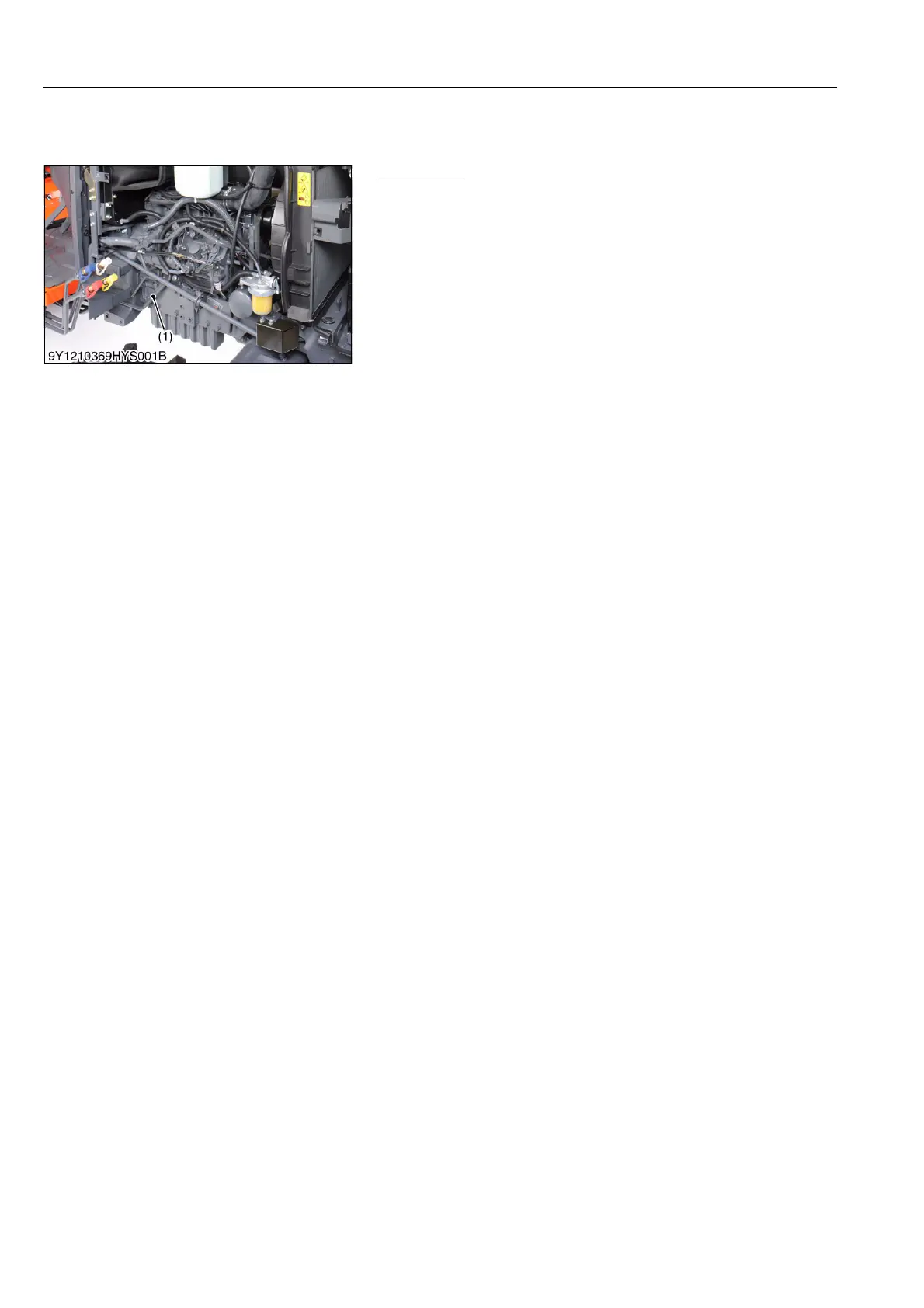

Remove the delivery pipe 1 (1).
(When reassembling)
•
Install the copper washers firmly.
9Y1211167HYS0006US0
(1)
Delivery Pipe 1
KiSC issued 02, 2015 A
