HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-S22

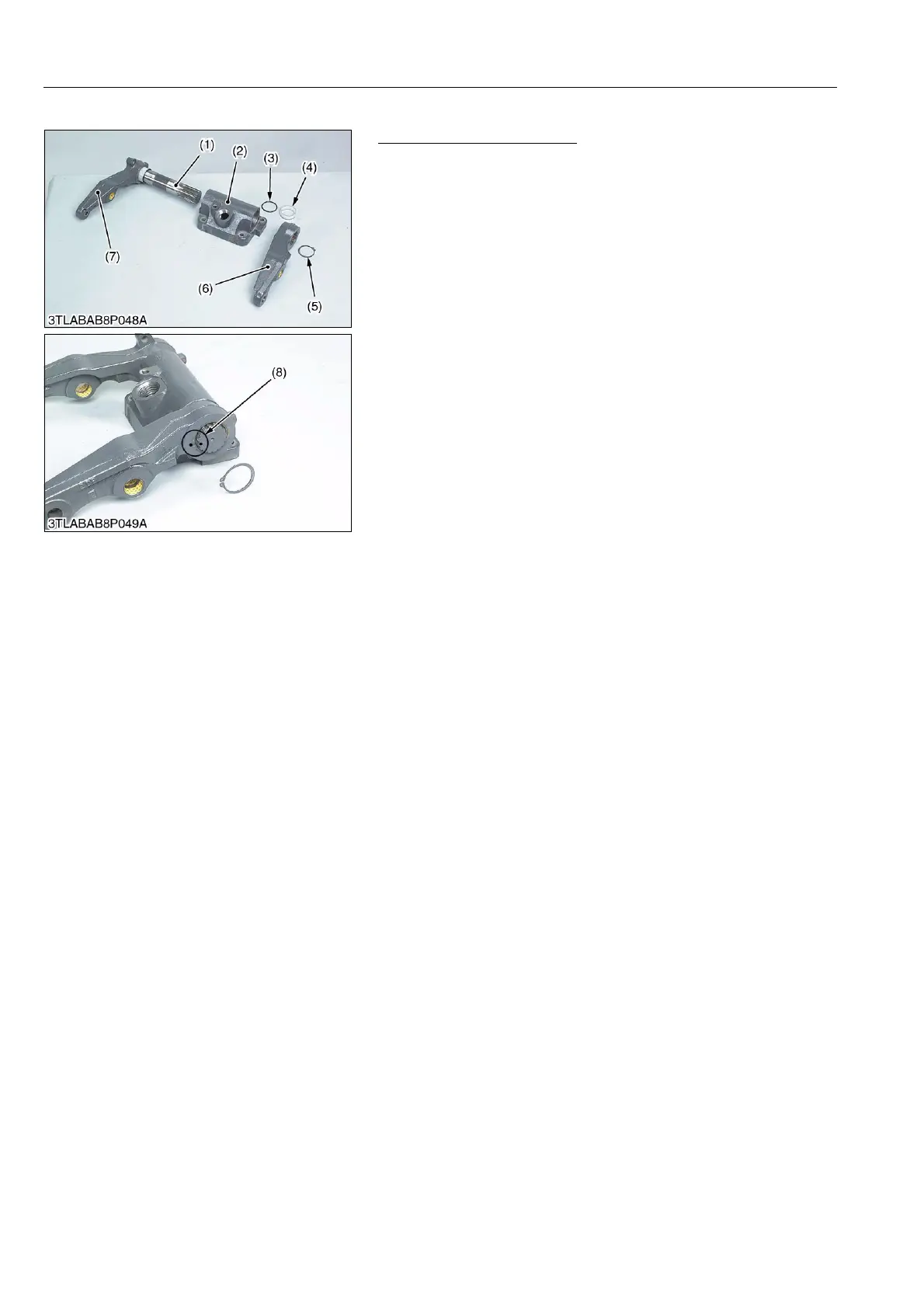

(4) Disassembling Lift Arm Shaft
Lift Arm and Lift Arm Shaft
1. Remove the external snap ring (5).
2. Remove the lift arm RH (6).
3. Draw out the lift arm shaft (1) and lift arm LH (7) as a unit.
4. Remove the collar (4) and O-ring (3).
(When reassembling)
• Align the alignment marks (8) of the lift arm shaft and lift arms.
• Apply grease to the right and left bushings of lift arm support and
O-rings.
• Be careful not to damage the O-rings.
9Y1211167HYS0031US0
(1) Lift Arm Shaft
(2) Lift Arm Support
(3) O-ring
(4) Collar
(5) External Snap Ring
(6) Lift Arm RH
(7) Lift Arm LH
(8) Alignment Mark
To Next Page
