GENERAL
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
G-70

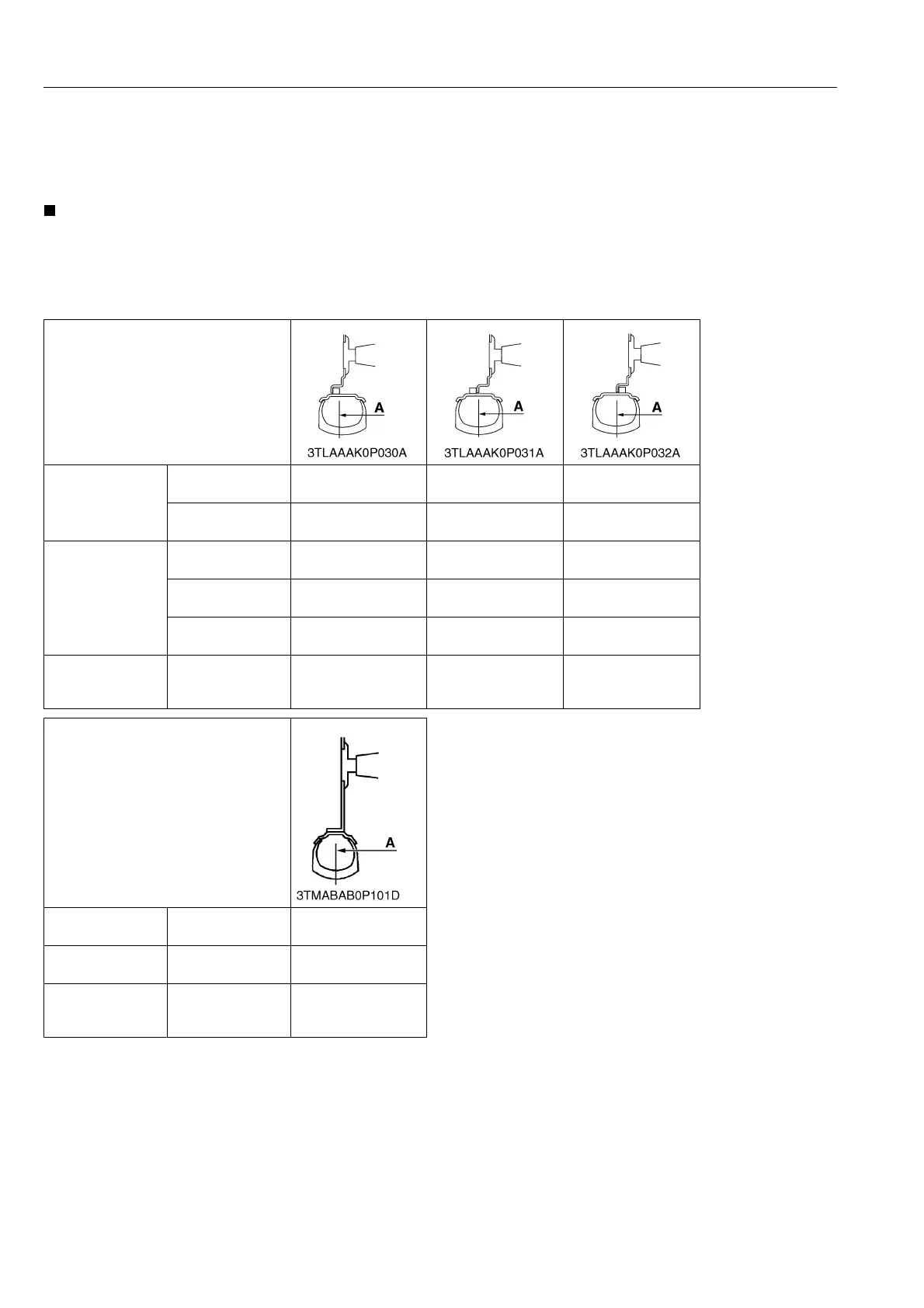

(2) Rear Wheels
Rear tread width can be adjusted as shown with the standard equipped tires.
To change the tread width
1. Remove the wheel rim and/or disk mounting bolts.
2. Change the position of the rim and/or disk (right and left) to the desired position, and tighten the bolts.
IMPORTANT
• Always attach wheels as shown in the drawings.
• If not attached as illustrated, transmission parts may be damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the specified torques then recheck after driving
the tractor 200 m (200 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according
to service interval.
9Y1211167GEG0105US0
Models
L3540-II
11.2-24 Farm
1205 mm
(47.44 in.)
1300 mm
(51.18 in.)
1385 mm
(54.53 in.)
12.4-24 Farm
1205 mm
(47.44 in.)
1300 mm
(51.18 in.)
1385 mm
(54.53 in.)
L4240-II
12.4-24 Farm
1220 mm
(48.0 in.)
1320 mm
(52.0 in.)
1400 mm
(55.1 in.)
13.6-24 Farm
1210 mm
(47.6 in.)
1310 mm
(51.6 in.)
1410 mm
(55.5 in.)
13.6-26 Farm
1210 mm
(47.6 in.)
1310 mm
(51.6 in.)
1335 mm
(52.56 in.)
L5040-II
L5240-II
L5740-II
13.6-28 Farm
1225 mm
(48.23 in.)
1325 mm
(52.17 in.)
–
Models
L3540-II 355/80-D20 Turf
1260 mm (49.61 in.)
(with spacer)
L4240-II 355/80-D20 Turf
1210 mm
(47.6 in.)
L5040-II
L5240-II
L5740-II
475/65-D20 Turf
1335 mm (52.56 in.)
(with spacer)
KiSC issued 02, 2015 A
