CLUTCH
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
2-S5
4. CHECKING AND ADJUSTING

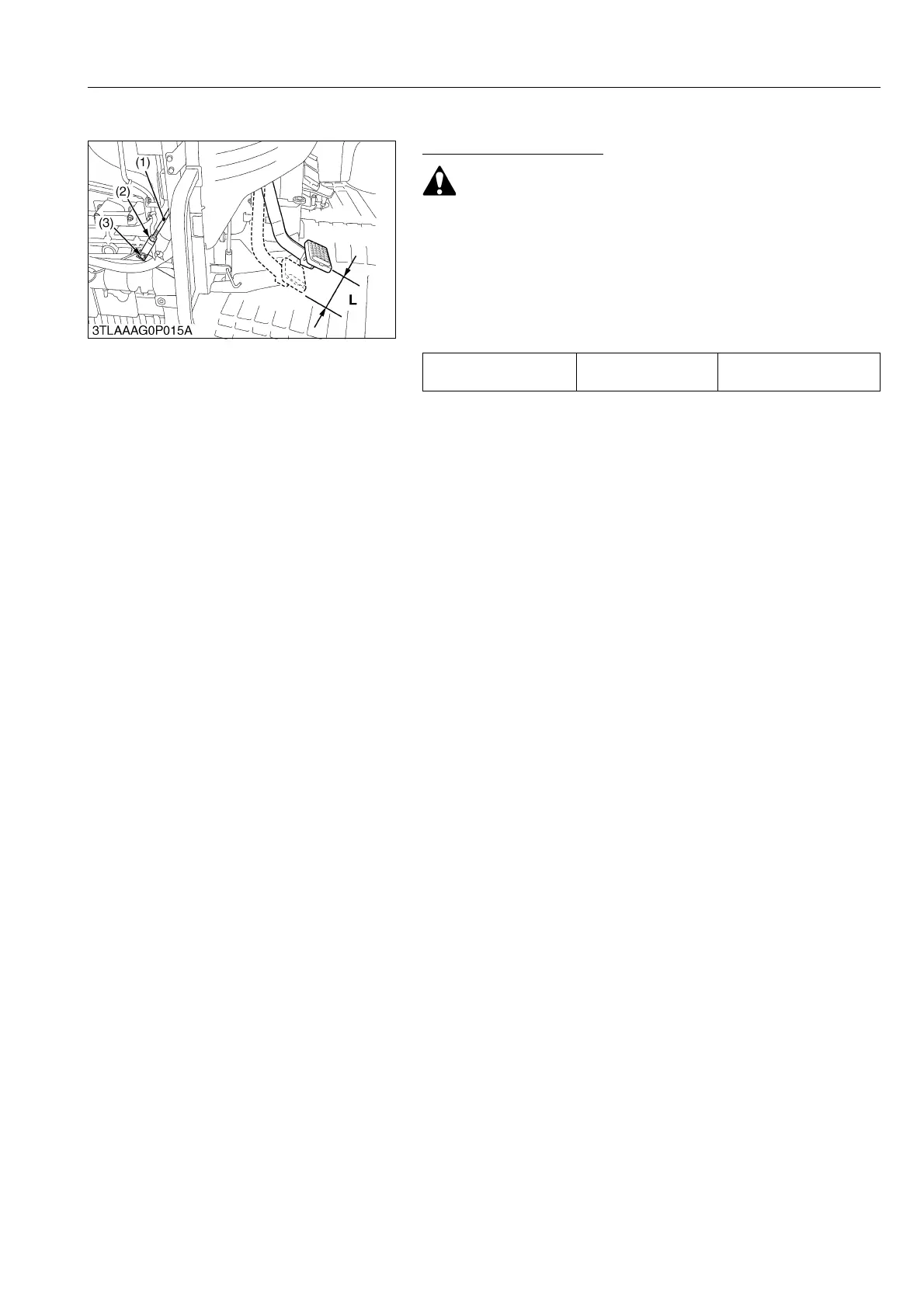

Clutch Pedal Free Travel
• When checking, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Slightly depress the clutch pedal and measure free travel "L" at
top of clutch pedal.
2. If the measurement is not within the factory specifications,
loosen the lock nut (2), remove the clevis pin (3) adjust the
length of rod (1) within acceptable limits.
3. Retighten the lock nut (2) and split the cotter pin.
9Y1211167CLS0004US0
Clutch pedal free travel
"L"
Factory specification
20 to 30 mm
0.78 to 1.18 in.
(1) Clutch Pedal Rod
(2) Lock Nut
(3) Clevis Pin
L: Free Travel
