FRONT AXLE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
6-S7

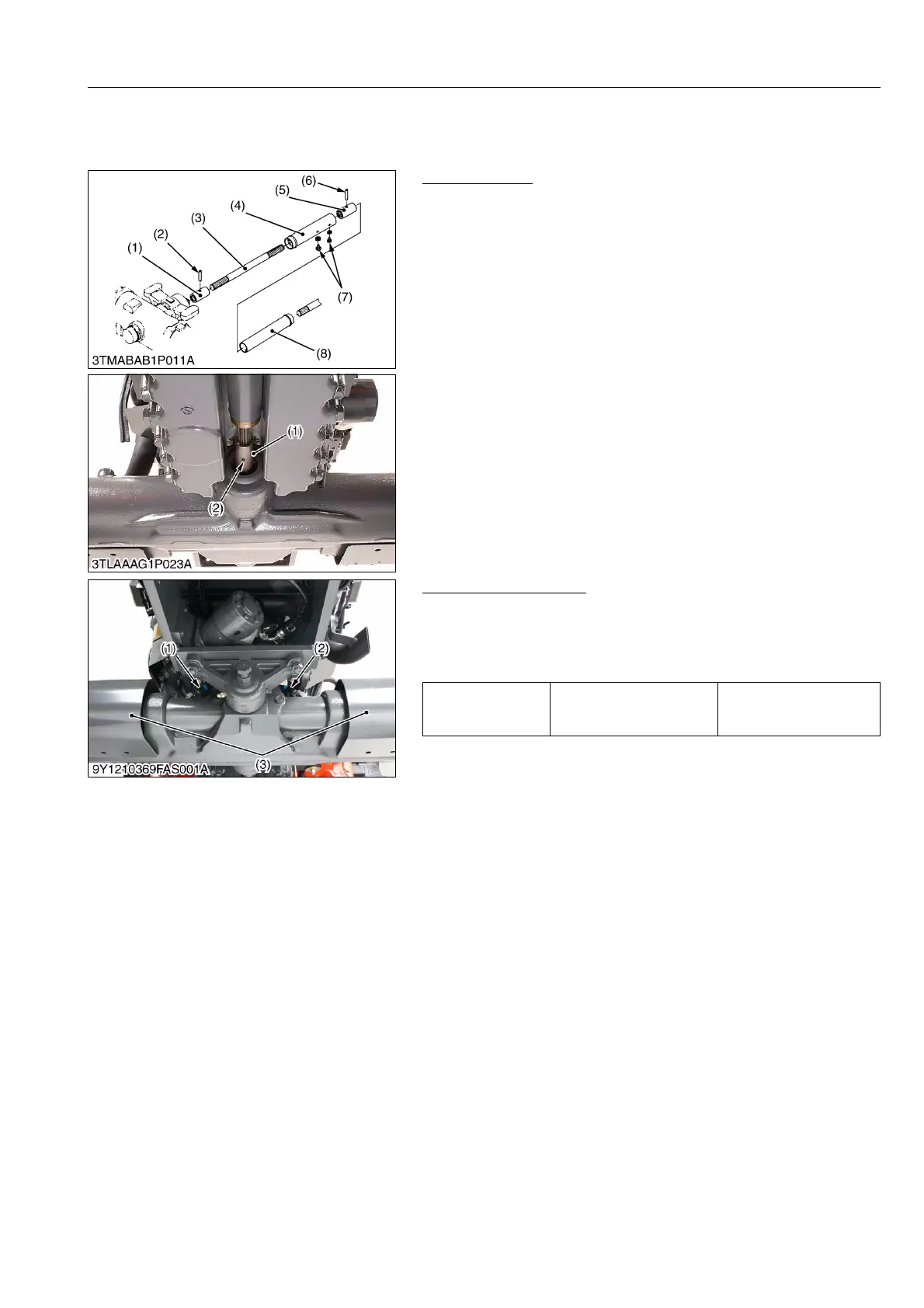

5. DISASSEMBLING AND ASSEMBLING
[1] SEPARATING FRONT AXLE ASSEMBLY
Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5)
and then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft 1 (3).
9Y1211167FAS0009US0
Power Steering Hoses
1. Disconnect the power steering hoses (1), (2) from steering
cylinder.
2. Remove the cylinder cover.
(When reassembling)
9Y1211167FAS0010US0
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft 1
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screw
(8) Propeller Shaft Cover
Tightening torque
Power steering hose
retaining nut
25 to 29 N·m
2.5 to 3.0 kgf·m
18 to 21 lbf·ft
(1) Power Steering Hose, RH
(with Red Tape)
(2) Power Steering Hose, LH
(with Blue Tape)
(3) Cylinder Cover
KiSC issued 02, 2015 A
