Cleaning Air Filter
Fresh Air Filter
1. Remove the knob bolts (3) and pull out the fresh air filter (1).
2. Blow air from the opposite direction to the filter's normal air flow.
Pressure of compressed air must be under 205 kPa
(2.1 kgf/cm
2
, 30 psi).
• Attach the filter and cover as the illustration.
• If the filter is very dirty :
Dip the filter in lukewarm water with mild dish washing
detergent.
Move it up and down as well as left and right to loosen dirt.
Rinse the filter with clean water and let it air-dry.
• Do not use gasoline, thinner or similar chemicals to clean
the filter as damage to the filter may occur.
• If may also cause an unpleasant odor in the CABIN when
the system is used next.
• Do not hit the filter. If the filter becomes deformed, dust
may enter into the air-conditioner, which may cause
damage and malfunction.
9Y1211167GEG0048US0
Checking Air Conditioner Condenser
1. Check the air conditioner condenser (1).
2. If dust and dirt, wash off all dirt and dust from the condenser (1)
with a soft brush, use care not to damage or bend the fins.
9Y1211167GEG0049US0
[6] CHECK POINTS OF EVERY 400 HOURS
Replacing Fuel Filter Element
1. See page G-28.
9Y1211167GEG0050US0

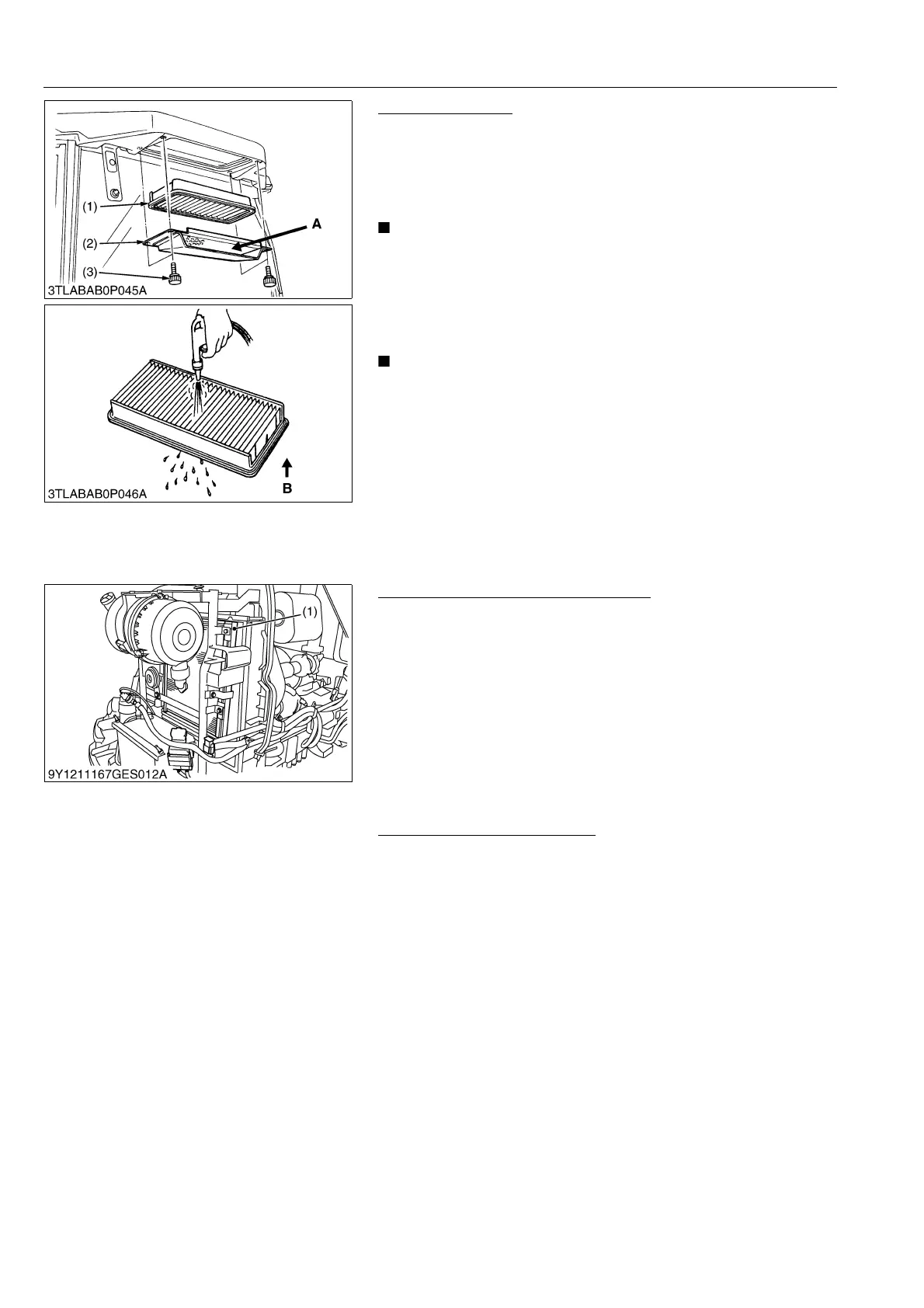

(1) Fresh Air Filter
(2) Cover
(3) Knob Bolt
A : Air Inlet Port
B : Air Conditioner Air Flow
(1) Air Conditioner Condenser
