TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-S104

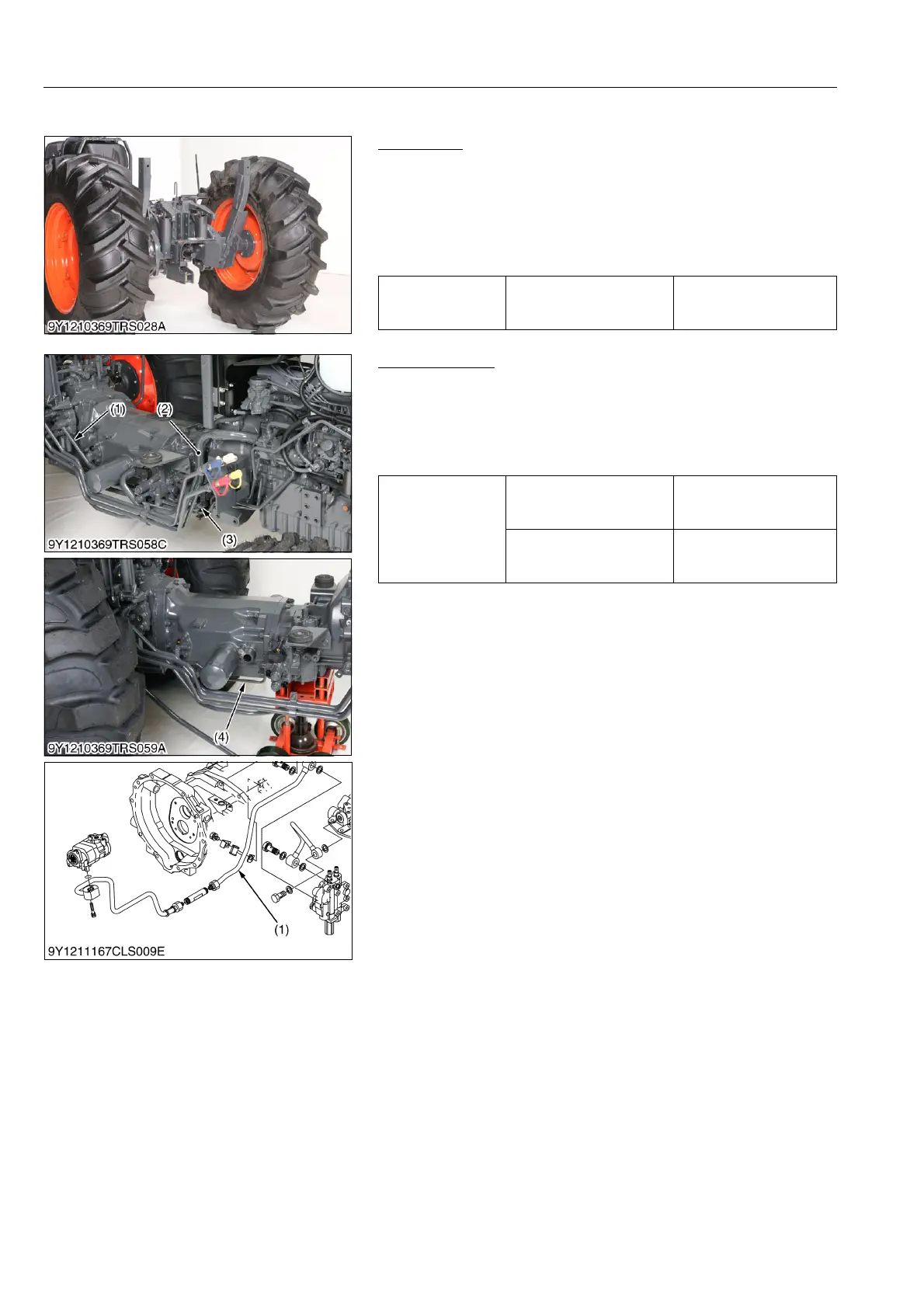

(3) Transmission Case
Rear Wheel
1. Place disassembling stand under the transmission case, and
support it with a jack.
2. Remove the rear wheels.
3. After removing the rear wheels, support it at both sides of rear
axle by stands.
(When reassembling)
9Y1211167TRS0134US0
Hydraulic Pipes
1. Remove the suction pipe (2).
2. Remove the delivery pipes (1).
3. Remove the brake rods (3).
4. Remove the PTO delivery pipe (4).
(When reassembling)
9Y1211167TRS0135US0
Tightening torque
Rear wheel mounting
screw and nut
220 N·m
22 kgf·m
160 lbf·ft
Tightening torque
Joint bolt for delivery pipe
118 to 137 N·m
12.0 to 14.0 kgf·m
86.8 to 101 lbf·ft
Joint bolt for PTO delivery
pipe
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 28 lbf·ft
(1) Delivery Pipe
(2) Suction Pipe
(3) Brake Rod
(4) PTO Delivery Pipe
