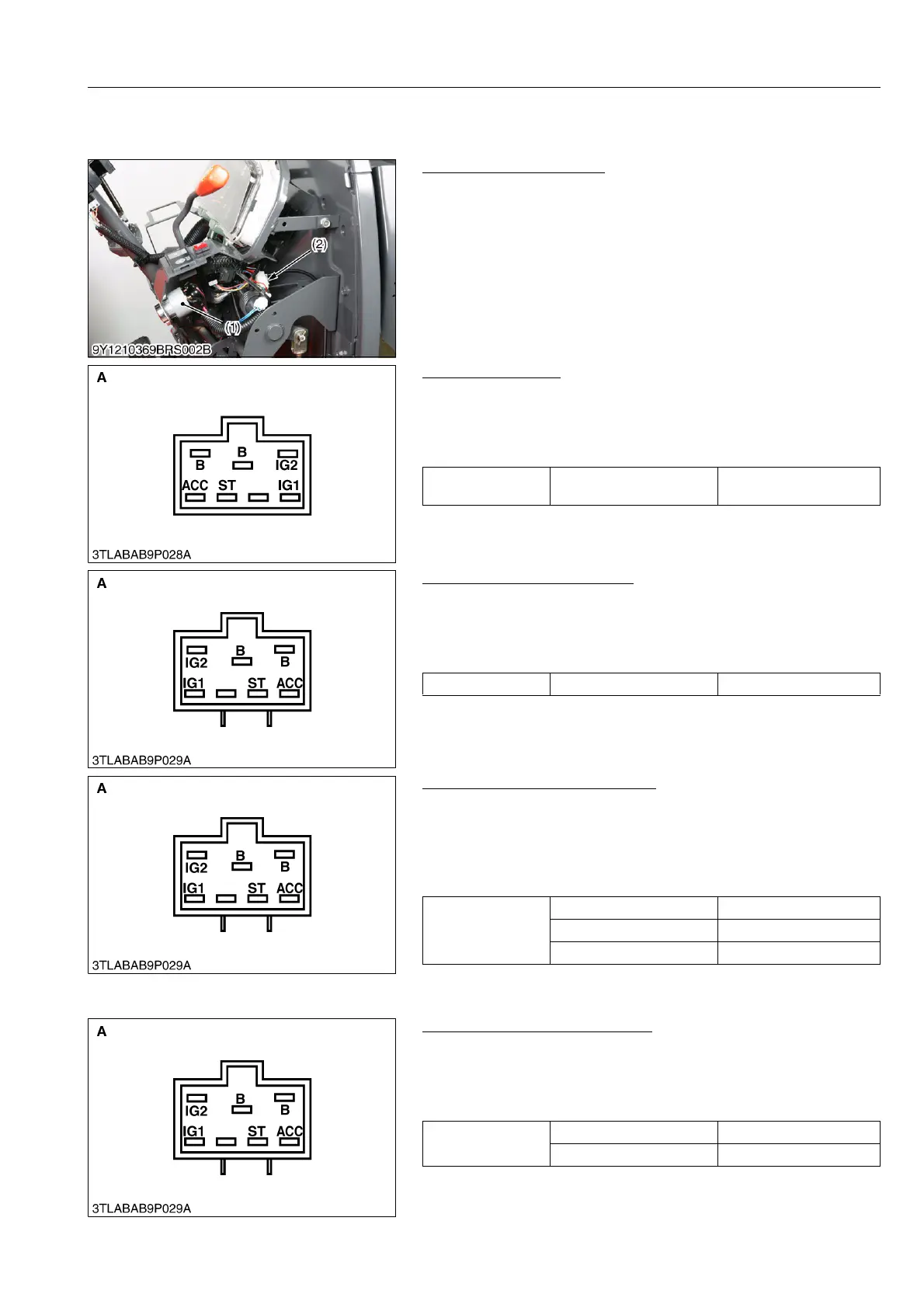

[6] STARTING SYSTEM
(1) Main Switch
Remove the Main Switch
1. Remove the panel cover.
2. Disconnect the main switch connector (2).
3. Perform the following checking.
9Y1211167ELS0059US0
Connector Voltage
1. Measure the voltage across the connector B terminal and
chassis.
2. If the voltage differs from the battery voltage (11 to 14 V), the
wiring harness is faulty.
9Y1211167ELS0060US0
Main Switch at ACC Position
1. Turn the main switch ACC position.
2. Measure the resistance across the B terminal and the ACC
terminal.
3. If 0 ohm is not indicated, renew the main switch.
9Y1211167ELS0061US0
Main Switch at Key ON Position
1. Turn and hold the main switch at the "ON" position.
2. Measure the resistances across the B terminal and the ACC
terminal, across B terminal and IG1 terminal and B terminal and
IG2 terminal.
3. If 0 ohm is not indicated, renew the main switch.
9Y1211167ELS0062US0
Main Switch at START Position
1. Turn and hold the main switch at the "START" position.
2. Measure the resistances across the B terminal and the IG1
terminal, and across the B terminal, and the ST terminal.
3. If 0 ohm is not indicated, renew the main switch.
9Y1211167ELS0063US0
(1) Main Switch (2) Main Switch Connector
Voltage
Connector B terminal –
Chassis
Approx. battery voltage
A: Wire Harness Side Connector 6G
Resistance B terminal – ACC terminal 0 Ω
A: Main Switch Side Connector 6G
Resistance
B terminal – ACC terminal 0 Ω
B terminal – IG1 terminal 0 Ω
B terminal – IG2 terminal 0 Ω
A: Main Switch Side Connector 6G
Resistance
B terminal – IG1 terminal 0 Ω
B terminal – ST terminal 0 Ω
A: Main Switch Side Connector 6G
