10 Configuration
Description
10.5.3.1 Templates

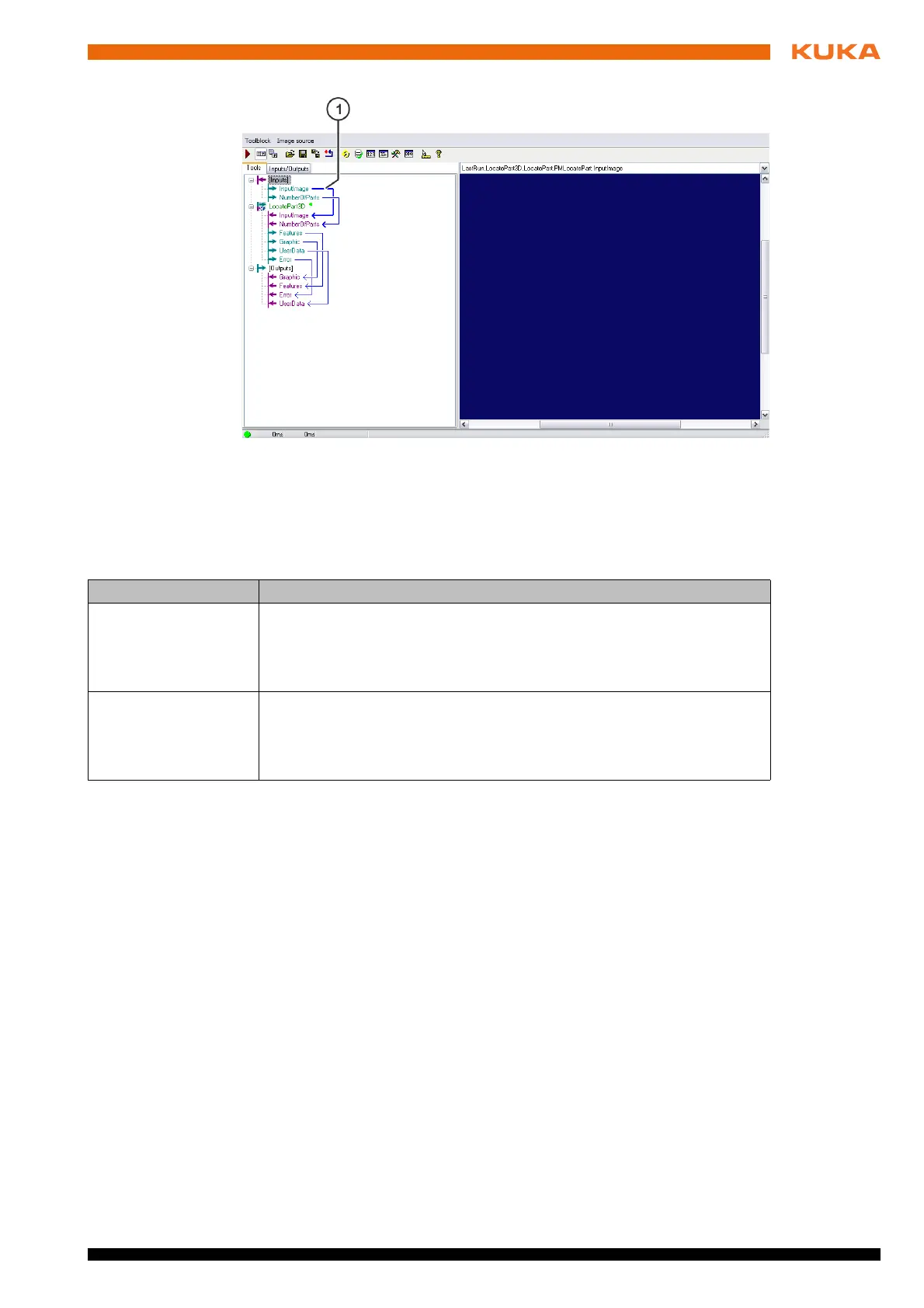

Fig. 10-2: VisionTech plug-in: overview
1Linking arrow
Template Description
LocatePartsOneStage Type: 2D
Suitable for parts which are defined by relatively coarse structures, e.g.
complete panels. The search area is the entire image. Further tools can
be added; only the result of “PatMax” is transferred, however.
LocatePartsKnown-
Position
Type: 2D
With this template, a number of parts are searched for in the field of
view. The rough position of these parts must be known, however. The
search area is limited to the known rough position.
