DeviceNet
14 Appendix
14-2
L
BA2175 EN 2.0

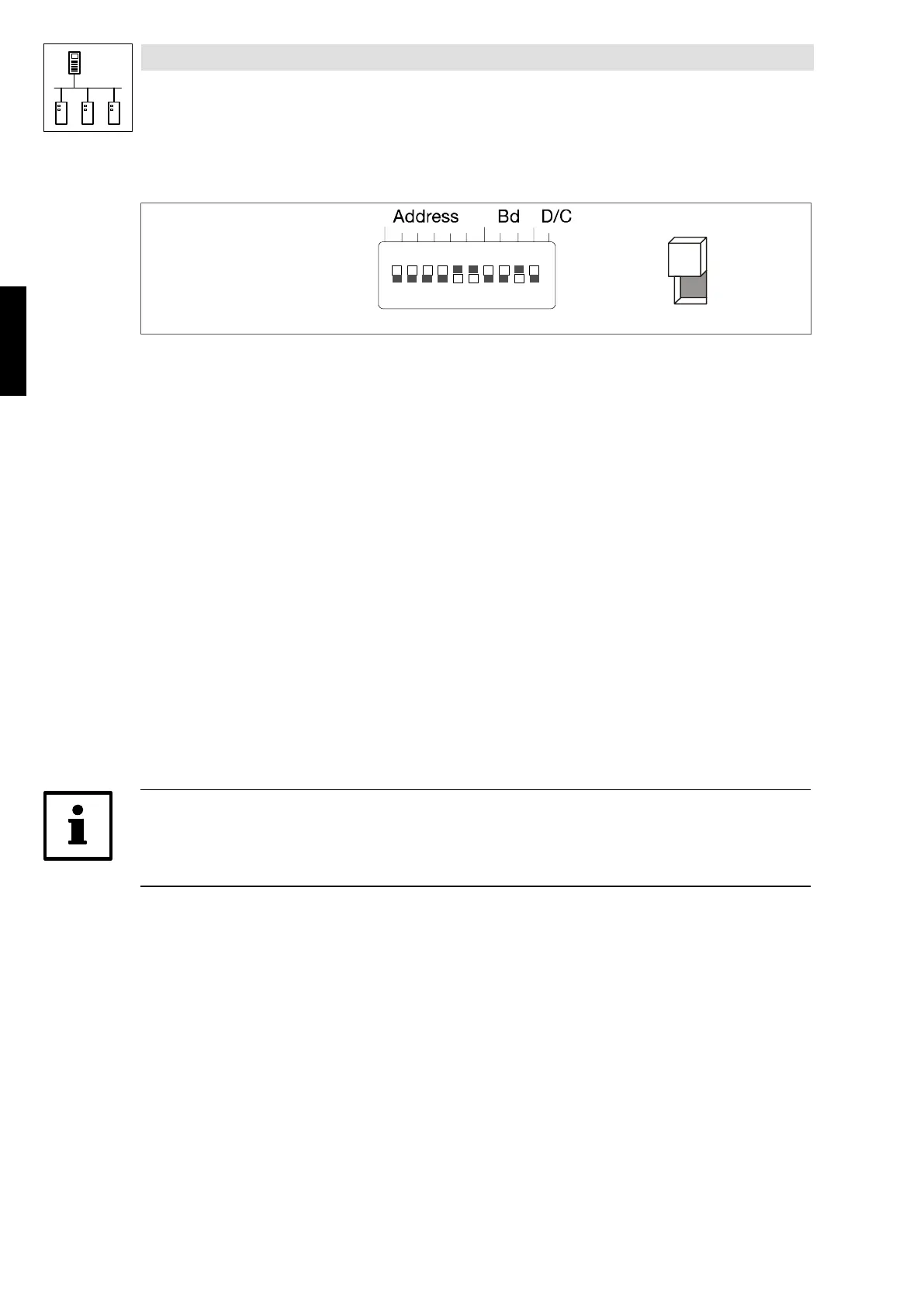

Hardware adjustment on the front of the 2175 fieldbus module
OPEN
1234 5678910
ON
OFF
The DIP switch positions correspond to the settings:
– Address = 3
– Baud rate = 250 kbit/s
– Communication profile: DeviceNet
14.1.1 Integration of LENZE-EDS files into “ RSNetWorx”
EDS file handling
A floppy is included in the delivery package of the 2175 fieldbus module.
The floppy contains several electronic data sheets (EDS files Electronic Data Sheets) for the
following LENZE controllers:
– 2175ib02.eds: 8200 frequency inverter
– 2175ib03.eds: 8210, 8220, 8200 vector frequency inverter
– 2175ib04.eds: 9300 servo inverter
– 2175ib12.eds: 9300 servo PLC
EDS files are text files describing controllers according to the DeviceNet specification. The
corresponding files are archived in the work station and called up by the installation software when
being needed (see example “RSNetWorx”, Allen Bradley).
The file name includes the fieldbus (’2175’), two letters (’ib’, interface module) and a two-digit
number which indicates the number of supported process data words (16 bit/word).
Tip!
You can read EDS files by using an ASCII editor.
We recommend not to change anything. Every change can have a negative effect on the module!
EDS file download
EDS files can be downloaded from the Internet. See the Lenze homepage
( ServiceWDownloadWDeviceNet).
Enter the following for saving the self-decompressing file on your hard disk (the subdirectory
“LENZE” must have been created earlier).
RockwellSoftware\RSCommon\EDS\LENZE
After decompression, the LENZE-EDS files are available for use.
