DeviceNet
14 Appendix
14-25
L BA2175 EN 2.0
14.3.5 LAD32 - LENZE_EXP

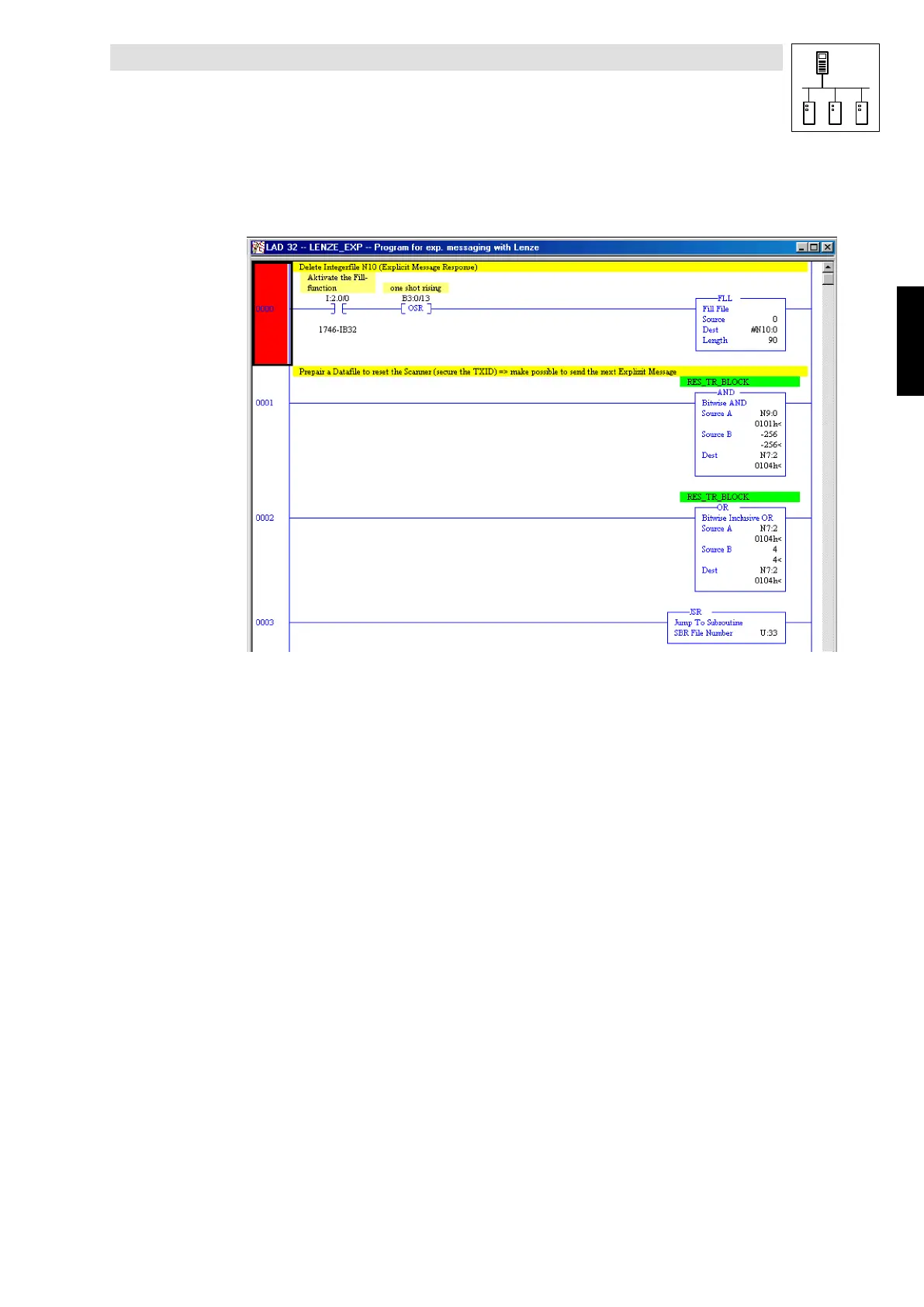

Preparations for explicit messages
2175DeN105
• Rung 0000: Data area N10:0 is set zero. This data area is used to save input data of explicit
messages. Here the order is activated via a digital input.
• Rung 0001: The order number (TXID) of an explicit message of the last order is filtered and
savedindataareaN7:2.
• Rung 0002: Data area N7:2 is consolidated ”Scanner reset”.ThusthedataareaN7:2contains
order number (TXID) and reset command (command = 04) for the scanner to be able to send
the next explicit message.
• Rung 0003: Jump to subroutine 33, change without any conditions
• Rung 0004: Jump to subroutine 34, change without any conditions
