Lenze 2175 User Manual

DeviceNet

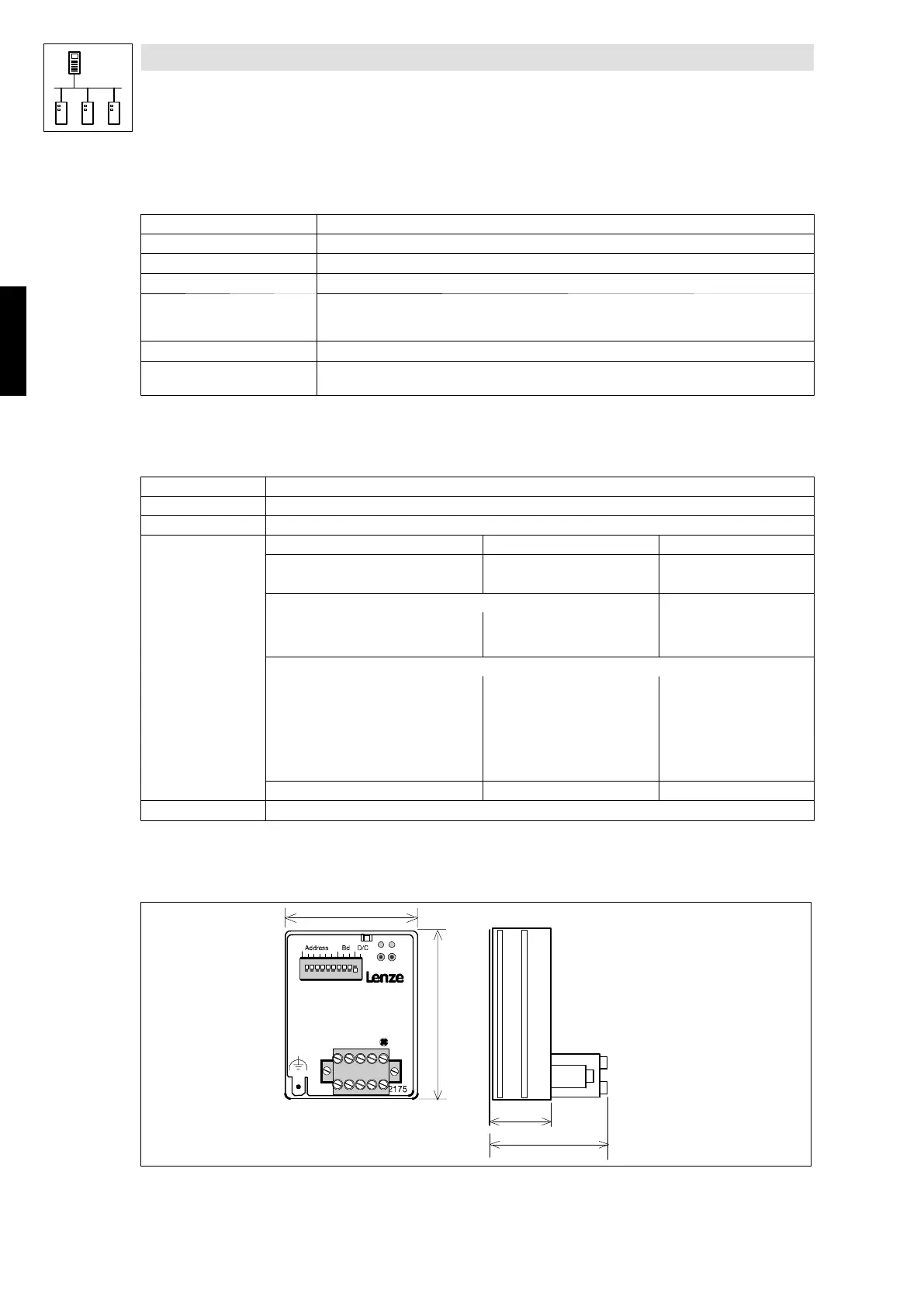

9 Technical data
9-2
L
BA2175 EN 2.0
9.3 General data and application conditions
For Values
Order name 33.2175IB
Communication media DIN ISO 11898
Baud rate [kBit/s] 125, 250, 500
Ambient temperature during operation: -20 °Cto 60°C
during transport: -25
°Cto 70°C
during storage -25
°Cto 60°C
Permissible humidity Class 3K3 t o EN 50178 (without condensation, average relative humidity 85%)
24-V-DC-
Voltage supply
• external supply only: 820X
• internal or external supply: 93XX / 9300 servo PLC / 821X / 822X / 8200 vector (see chapter 4.3.2)
9.4 Rated data
For Values
Voltage supply 24 V DC ñ 10 %; max. 100 mA
Communication medium ISO 11898
Rated insulation voltage Type of insulation
• PE 50VAC Electrical isolation
• External supply (term. 39/59) - No electrical isolation
• Power stage
– 820X / 821X 270 V AC Basic insulation
– 822X / 8200 vector 270 V AC Double insulation
I
n
s
l
a
t
i
o
n
o
l
t
a
g
e
s
f
o
r
– 93XX 270 V AC Double insulation
Insulation voltages for
b
u
s
s
y
s
t
e
m
s
• Control terminals:
b
u
s
s
y
s
t
e
m
s
– 820X / 8200 vector
(with internal supply)
- No electrical isolation
– 8200 vector
(with external supply)
100 V AC Basic insulation
– 821X 50 V AC Electrical isolation
– 822X 270 V AC Basic insulation
– 93XX 270 V AC Basic insulation
• External bus systems 0VAC No electrical isolation
Pollution degree VDE0110, part 2, pollution degree 2
9.5 Dimensions
75
62
36
18
DeviceNet
CANopen
Fig. 9-1 Dimensions: 2175 fieldbus module (all dimensions in mm)
