CANopen
4 Installation
4-6
L
BA2175 EN 2.0

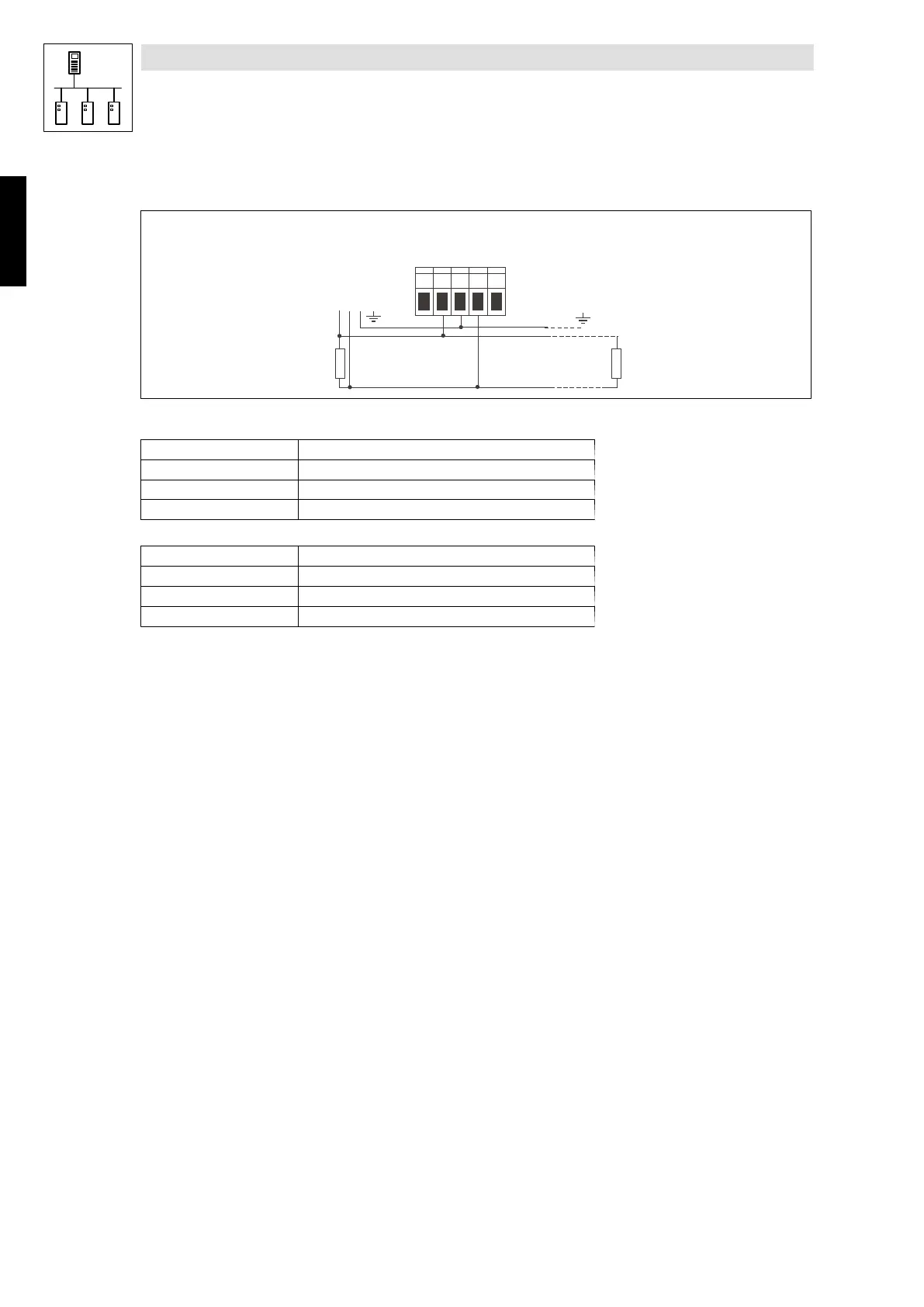

4.4.1 CAN bus wiring
2175DeN002
2175
V- V+
CAN_L
CAN_H
SHLD
120 R
120 R
CAN
LOW
HIGH
Please observe our recommendations for signal cables:
Totallengthupto300m
Cable type LIYCY2x2x0.5mm
2
(twisted in pairs with shield)
Cable resistance ≤ 40 Ω/km
Capacitance per unit length ≤ 130 nF/km
Total length up to 1000 m
Cable type CYPIMF2x2x0.5mm
2
(twisted in pairs with shield)
Cable resistance ≤ 40 Ω/km
Capacitance per unit length ≤ 60 nF/km
