DeviceNet
14 Appendix
14-7
L BA2175 EN 2.0

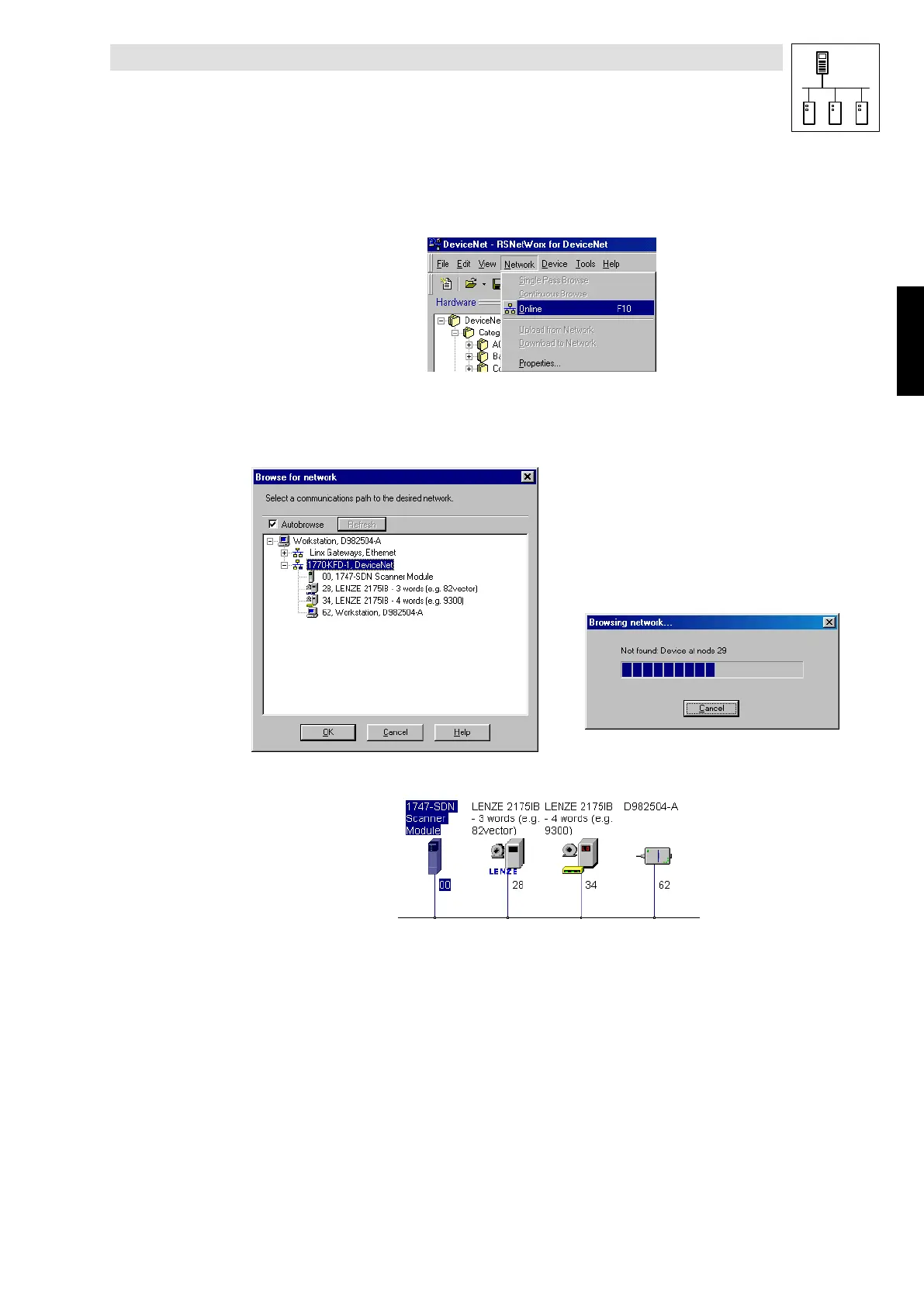

14.1.3 Online connection between DeviceNet and “ RSNetWorx“
1. Select NetworkWOnline.
2175DeN065
The menu for scanning DeviceNet will be opened.
1770-KFD-1
lists all bus nodes.
2. Select Autobrowse or Refresh.ConfirmwithOK.
The bus is searched for connected devices.
2175DeN066/067
The components found are indicated as follows:
2175DeN068
