CANopen
5 Commissioning
5-1
L BA2175 EN 2.0
5 Commissioning
Tip!
Settings using GDC or a keypad
Controller address and baud rate can be set using GDC or a keypad. For this, the DIP-switches S1
to S6 must be set to OFF.
Codes L-C0009 (controller address) and L-C0125 (baud rate) are not active if one or several
switches have been set to ON before a restart.
Please see the descriptions for
• Node address L-C1850/2350 (^ 6-46)
• Baud rate L-C1851/2351 (^ 6-47).

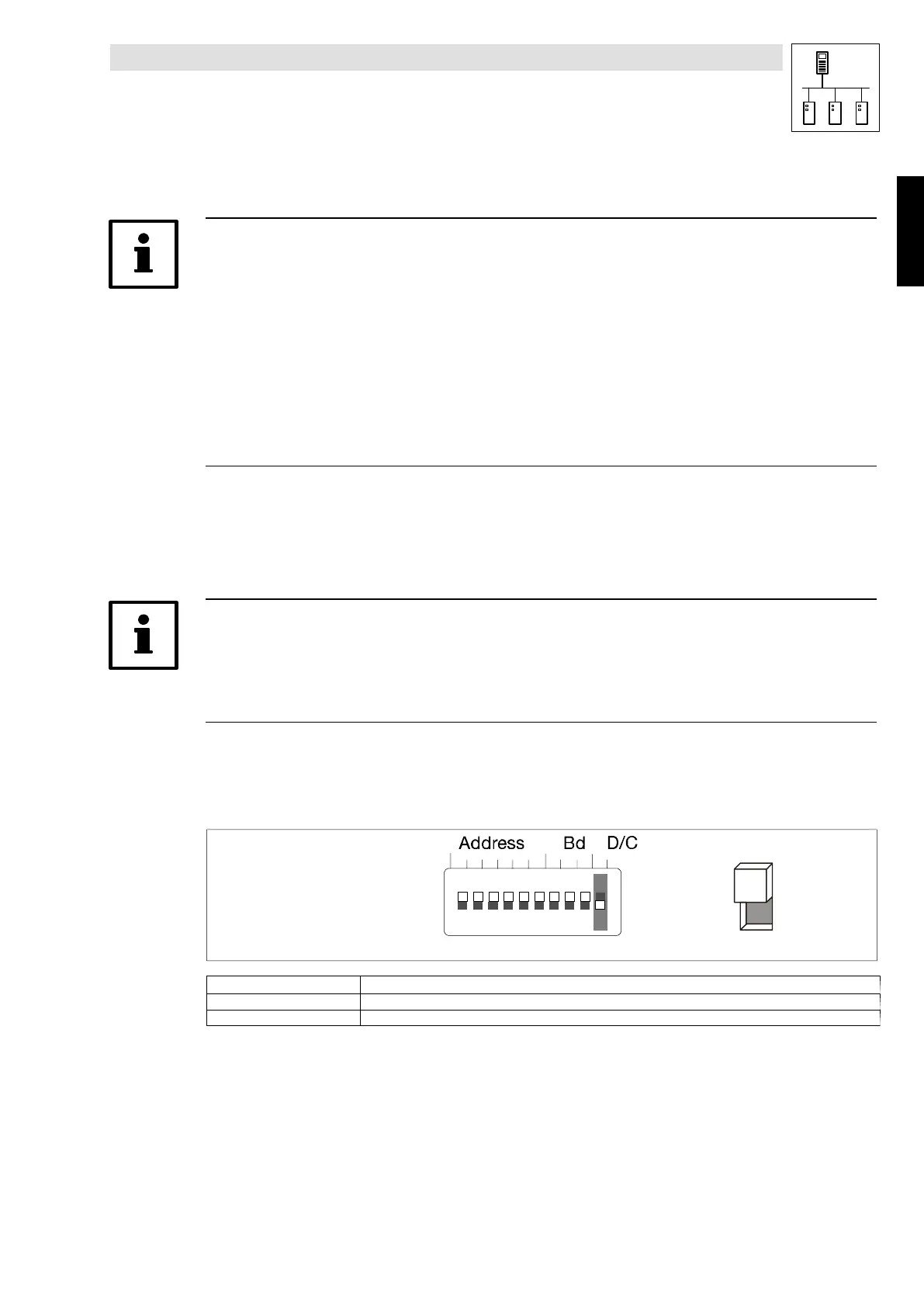

The DIP switch on the front of the 2175 fieldbus module can be used for the following settings:
• Controller address S1 - S6
• Baud rate S7 - S9
• Communication profile S10
Tip!
In default setting all switches are OFF.
The controller address and baud rate set using DIP switches will only be active after a restart.
Only the combinations shown in the following tables are defined:
5.1 Communication profile setting
OPEN
1234 5678910
ON
OFF
Communication profile S10
DeviceNet OFF
CANopen ON
