Technical Information
102
G 1xxx/G 2xxx

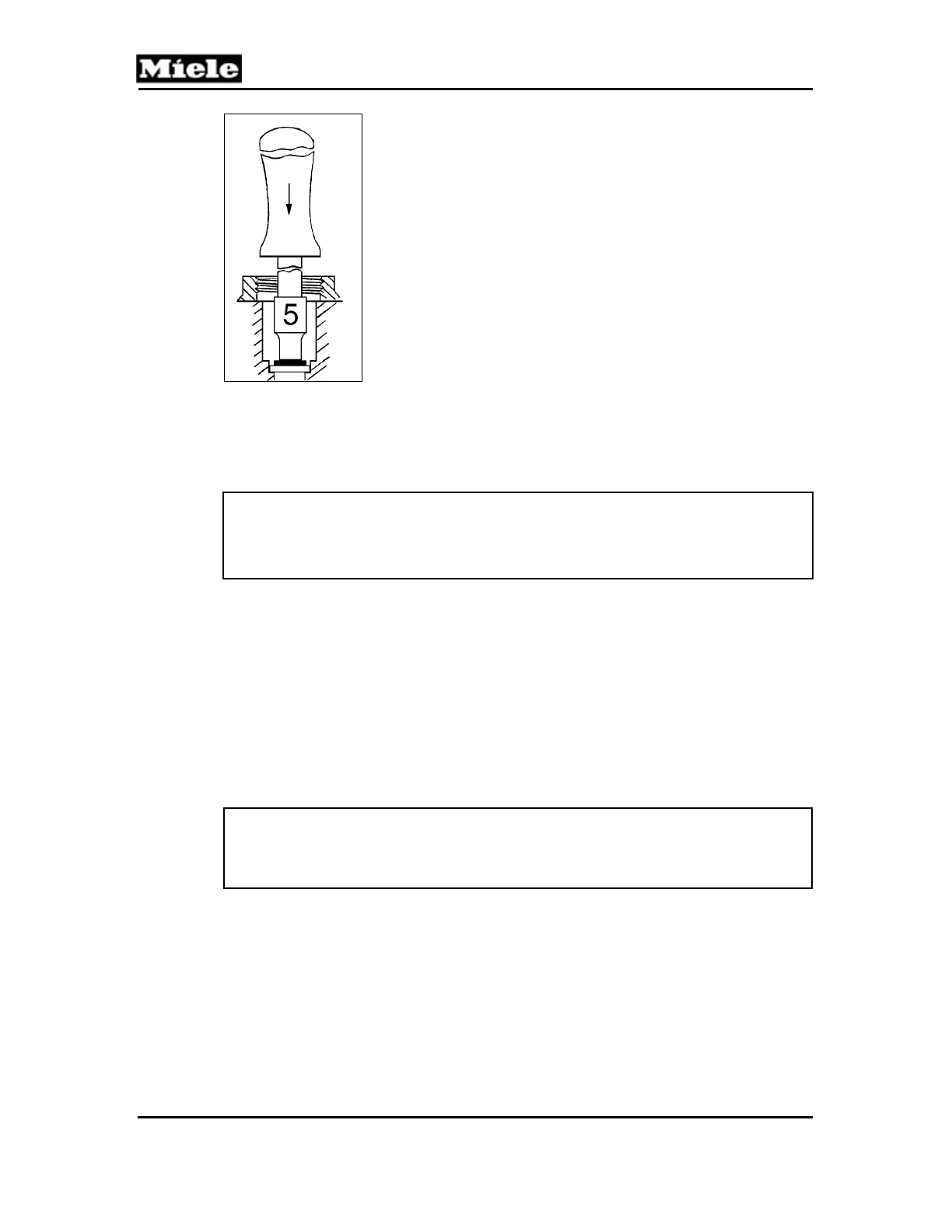

Figure 050-19: Replacing the WaterProof System Restrictor
4. Re-install the filter and the seal.
4.2 WaterProof System (WPS) Removal
Note:
Should the intake hose or water valves require replacement, the WPS must
be replaced as a complete assembly. Individual replacement of the parts is
not possible.
1. Shut off the water supply.
2. Disconnect the WPS at the plumbing supply connection.
3. Remove the left side panel (Section 010-4.1).
Remove the drip pan (Section 010-4.2).
4. Disconnect the hose from the water.
Disconnect the electrical connection.
5. Unclip the wiring from the retainers. Release the WPS retainer from the
rear of the appliance and remove the WPS.
4.3 Flow Meter (Circuit Board) Removal
Note:
The circuit board is the only part of the flow meter that can be replaced
individually. In the event of mechanical failure within the flow meter, the water
diverter must be replaced.
1. Remove the left side panel (Section 010-4.1).
2. Release the circuit board retaining tab, and slide the board to remove it
from the water diverter.
3. Disconnect the wiring.
4.4 Removing the Top Spray Arm
1. Remove the cutlery tray, if applicable.
