Technical Information

G 1xxx/G 2xxx

Position 2 - Door open, latch at mid-setting, loading/unloading position:

If the door is opened, the door lock latch is moved from position 1 to position

2. The latch then extends by approximately 2.6 inches (6 centimeters) so that

the door can be automatically closed again. See Figure 020-6.

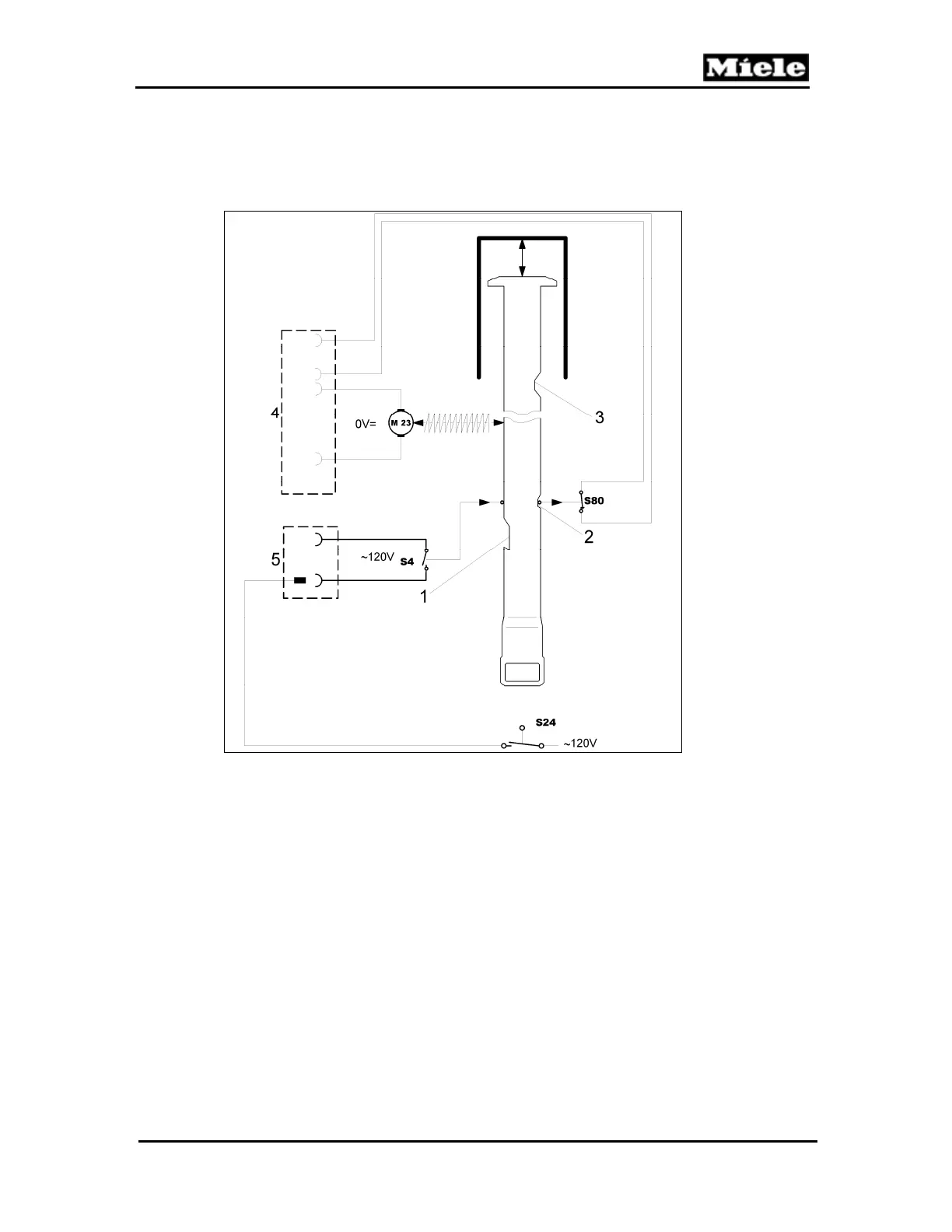

Figure 020-6: Door Lock Latch, Position 2

1, 2, 3

Latch positions 1, 2, 3

Plug 2

Plug 1

Door switch (supply voltage 120VAC), open

S80

Door movement switch (low voltage), closed

S24

Door contact switch (supply voltage 120VAC), open

M23

Door-locking motor (DC motor); no voltage applied
