Technical Information

G 1xxx/G 2xxx

3 Component Layouts

3.1 G 2020 (Advanta with Novotronic)

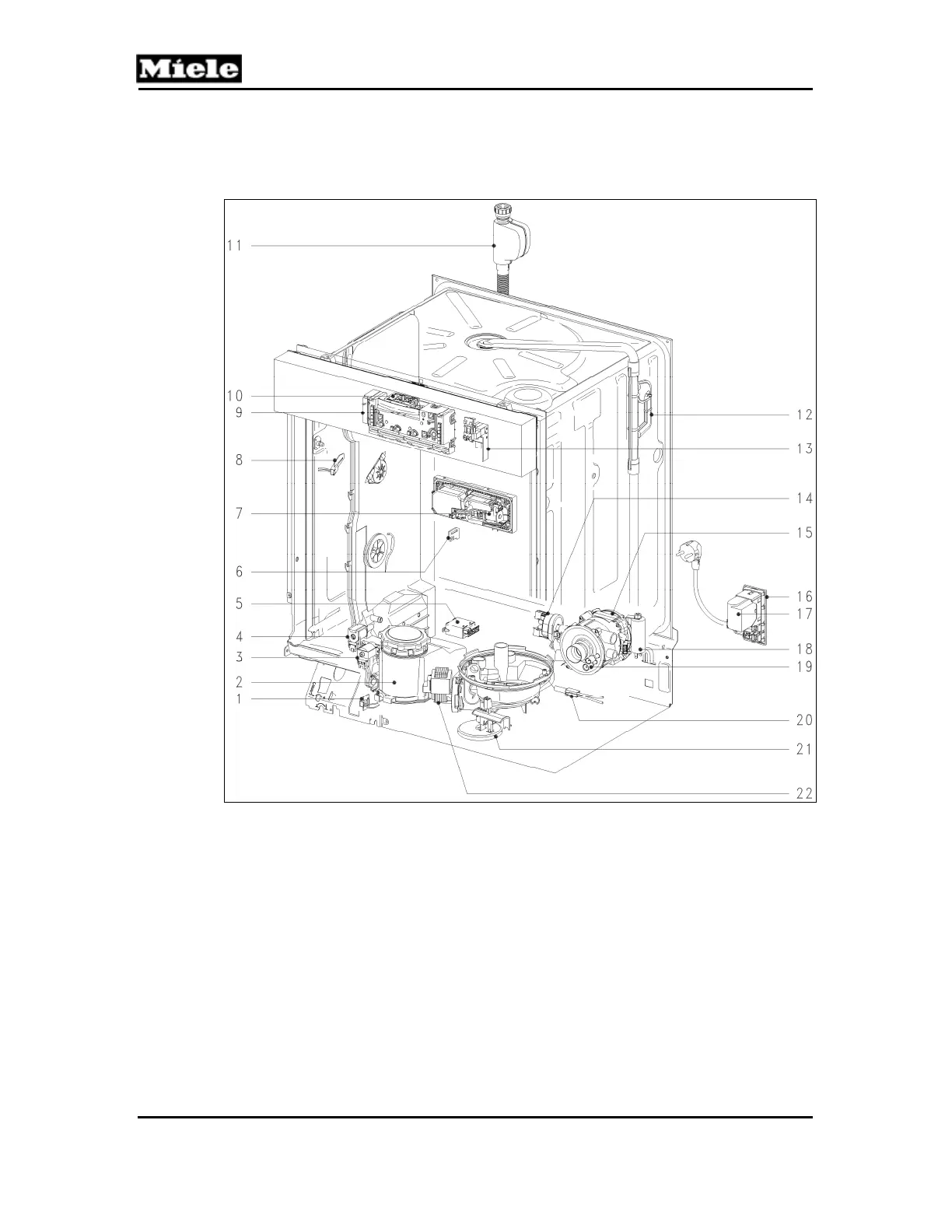

Figure D-20: G 2020 Component Layout

Salt reed switch, B8/2

Turbidity sensor, B3/10

Salt container

Main switch, S2

Reactivation solenoid, Y38

Heater pressure switch, B1/13

Wash-water hardness solenoid, Y5

Circulation pump (MPEH), M6

Heater relay, K1/1

Terminal block, X3/1

Rinse aid reed switch, B8/1

Interference suppression, Z1/Z2

Combination dispenser solenoid, Y50

Circulation pump capacitor, C6

Flow meter, B3/4

Heater, R1

Electronic, 1N1

Temperature sensor (NTC), R30

Door contact switch, S24

Overflow reed switch, B8/3

Water intake solenoid, Y2

Drain pump, M8
