Technical Information

G 1xxx/G 2xxx

Position 1 - Door closed, latch completely retracted:

To close the door, the door lock is locked and the latch is completely

retracted. See Figure 020-5.

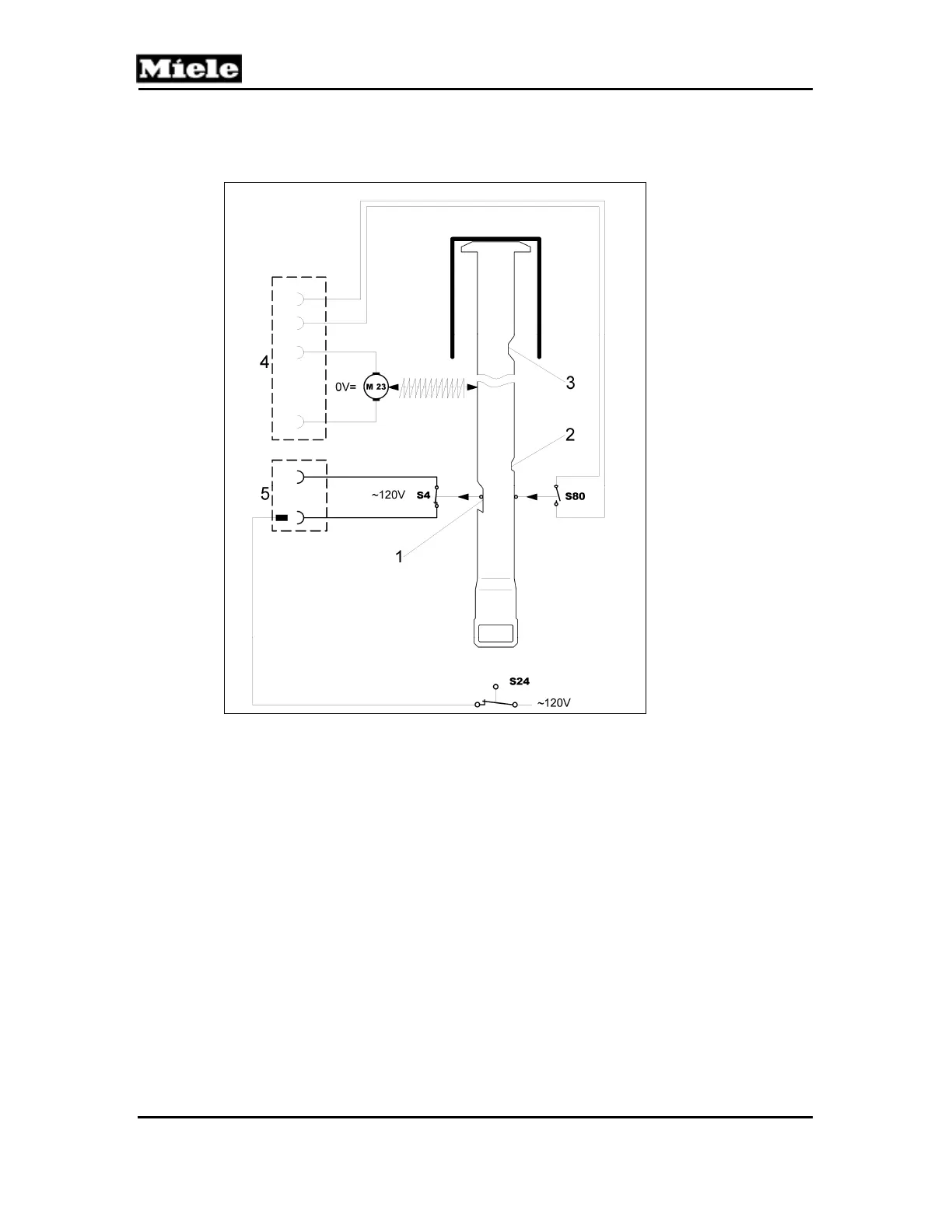

Figure 020-5: Door Lock Latch, Position 1

1, 2, 3

Latch positions 1, 2, 3

Plug 2

Plug 1

Door switch (supply voltage 120VAC), closed

S80

Door movement switch (low voltage), open

S24

Door contact switch (supply voltage 120VAC), closed

M23

Door-locking motor (DC motor); no voltage applied
