Technical Information

G 1xxx/G 2xxx

3.10 G 2832 (LaPerla II with Navitronic)

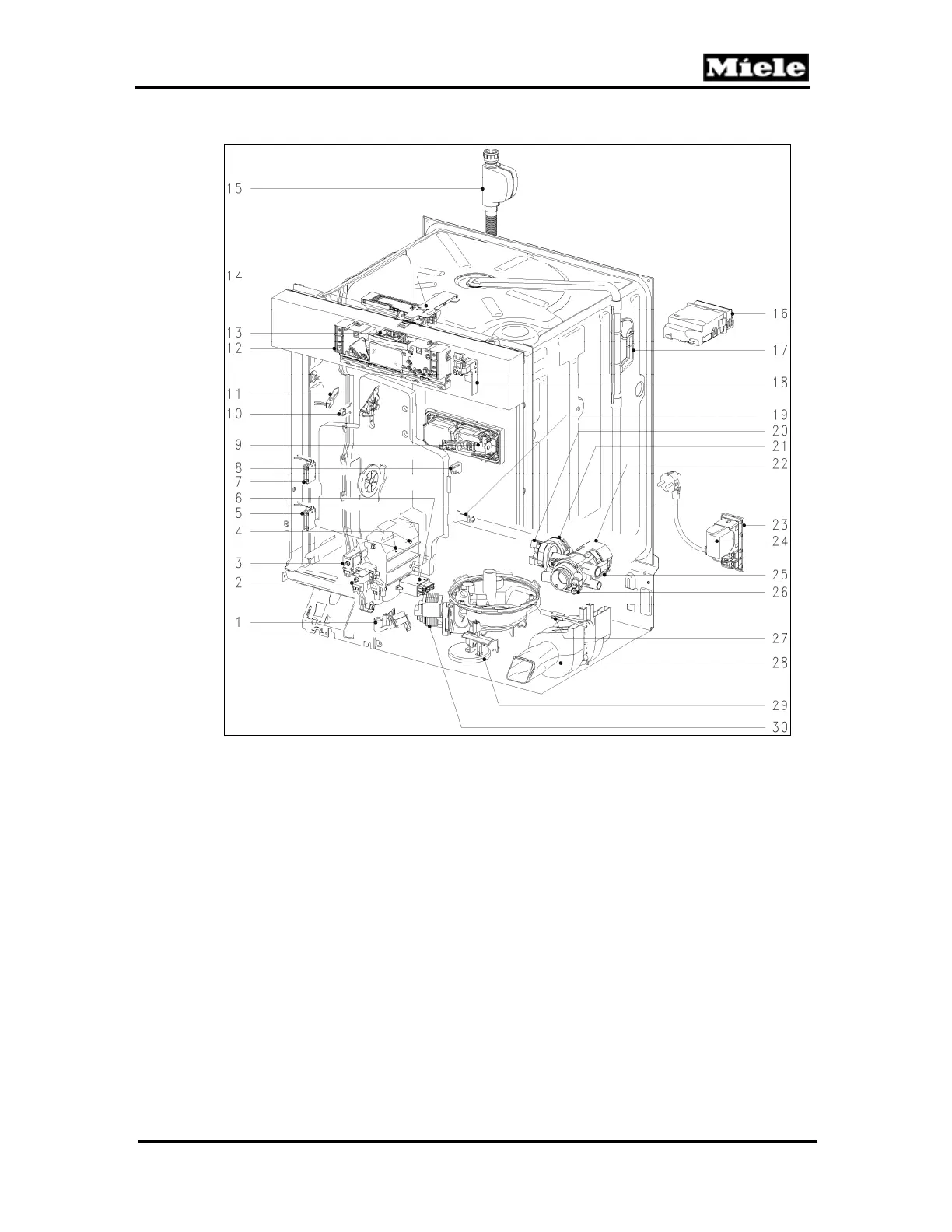

Figure D-29: G 2832 Component Layout

Brine valve, Y60

RemoteVision, 3N1

Reactivation solenoid, Y38

Turbidity sensor, B3/10

Wash-water hardness solenoid, Y5

Main switch, S2

Sensor softener, 10N1

Salt float switch, B8/2

Bottom spray arm sensor, 5N1

Heater pressure switch, B1/13

Heater relay, K1/1

Slide shutter, M24 and B3/12

Middle spray arm sensor, 4N1

Circulation pump frequency converter

Rinse aid float switch, B8/1

Terminal block, X3/1

Combination dispenser solenoid, Y50

Interference suppression, Z1

Salt container cap, B3/13

Circulation pump (MPPW), M6

Flow meter, B3/4

Heater, R1

Electronic, 1N1 and 2N1

Temperature sensor (NTC), R30

Door contact switch, S24

Fan, M2

Comfort door closing aid: S4, S80, M23

Overflow float switch, B8/3

Water intake solenoid, Y2

Drain pump, M8
