3.9 G 2830 (LaPerla with Navitronic)

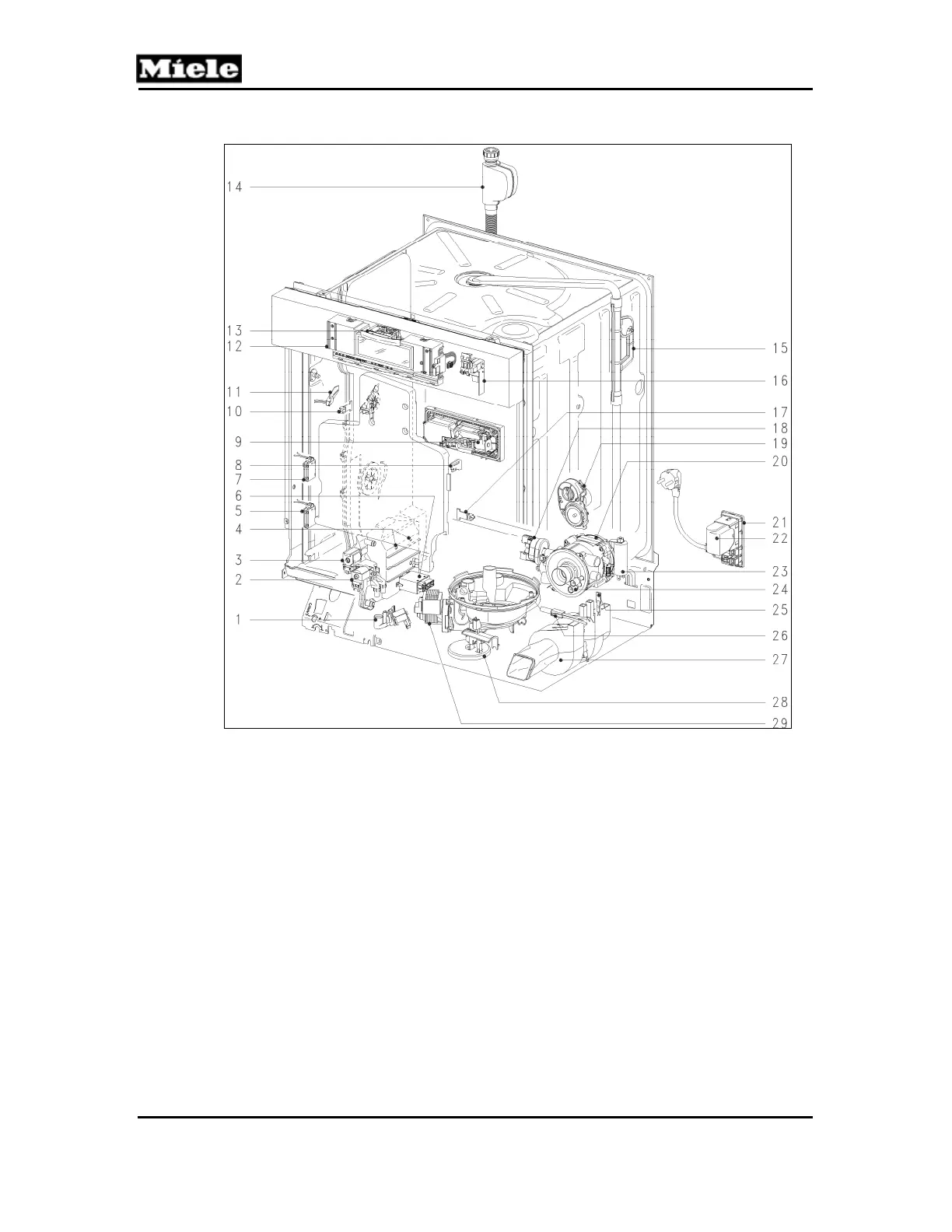

Figure D-28: G 2830 Component Layout
1
Brine valve, Y60
16
Main switch, S2
2
Reactivation solenoid, Y38
17
Salt float switch, B8/2
3
Wash-water hardness solenoid, Y5
18
Heater pressure switch, B1/13
4
Sensor softener, 10N1
19
Slide shutter, M24 and B3/12
5
Bottom spray arm sensor, 5N1
20
Circulation pump (MPEW), M6
6
Heater relay, K1/1
21
Terminal block, X3/1
7
Middle spray arm sensor, 4N1
22
Interference suppression, Z1
8
Rinse aid float switch, B8/1
23
Circulation pump capacitor, C6
9
Combination dispenser solenoid, Y50
24
Heater, R1
10
Salt container cap, B3/13
25
Speed sensor, B3/9
11
Flow meter, B3/4
26
Temperature sensor (NTC), R30
12
Electronic modules, 1N1 and 2N1
27
Fan, M2
13
Door contact switch, S24
28
Overflow float switch, B8/3
14
Water intake solenoid, Y2
29
Drain pump, M8
15
Turbidity sensor, B3/10
