Technical Information
45
G 1xxx/G 2xxx
4.2 Drip Pan Removal
Warning!
Before tilting the machine onto its back, open the salt container cap briefly,
then close it firmly (this empties the water diverter). Then pump all water out
of the cabinet.
1. Lay the dishwasher on its back. Ensure that the intake and drain hoses
are not crushed.
2. Remove the retaining screws (Figure 010-2, Item 1).

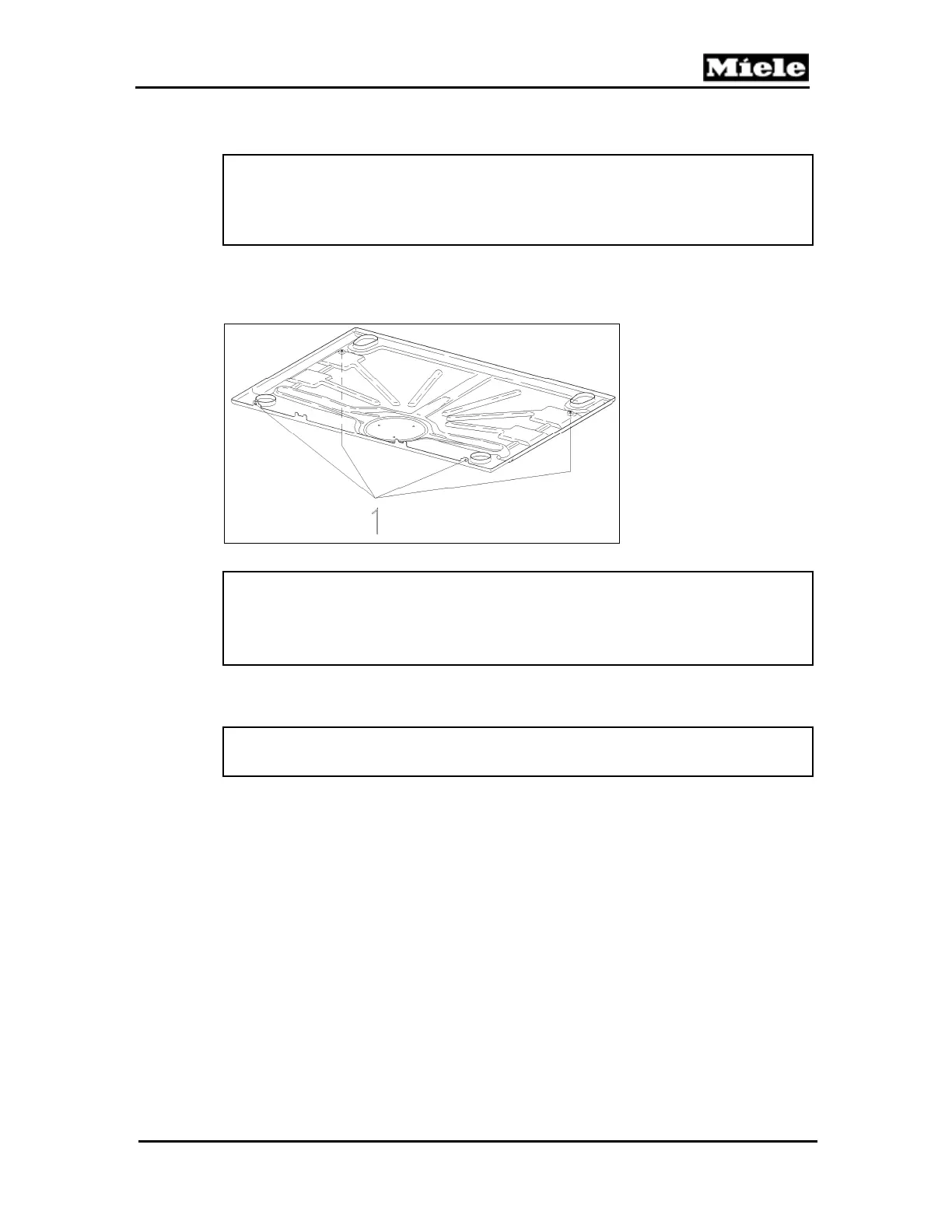

Figure 010-2: Drip Pan Removal
Warning!
When re-installing, it is vital to ensure that screws with a serrated surface
under their heads are used to secure the drip pan to the connection strip.
This is absolutely essential to ensure a good ground connection.
4.3 Hinge Removal
Note:
Hinges must be replaced in pairs.
1. Remove the outer door panel. See Section 030-4.1.
2. Remove the left and right side panels; see Section 010-4.1.
3. Close the door.
4. Release the spring tension.
5. Unhook the cords of the door springs (see Figure 010-3, Item 1).
6. Bend the hinge upwards using pliers (see Figure 010-3, Item 2).
