Technical Information

G 1xxx/G 2xxx

3.6 G x47x (Optima Full-Size with Incognito)

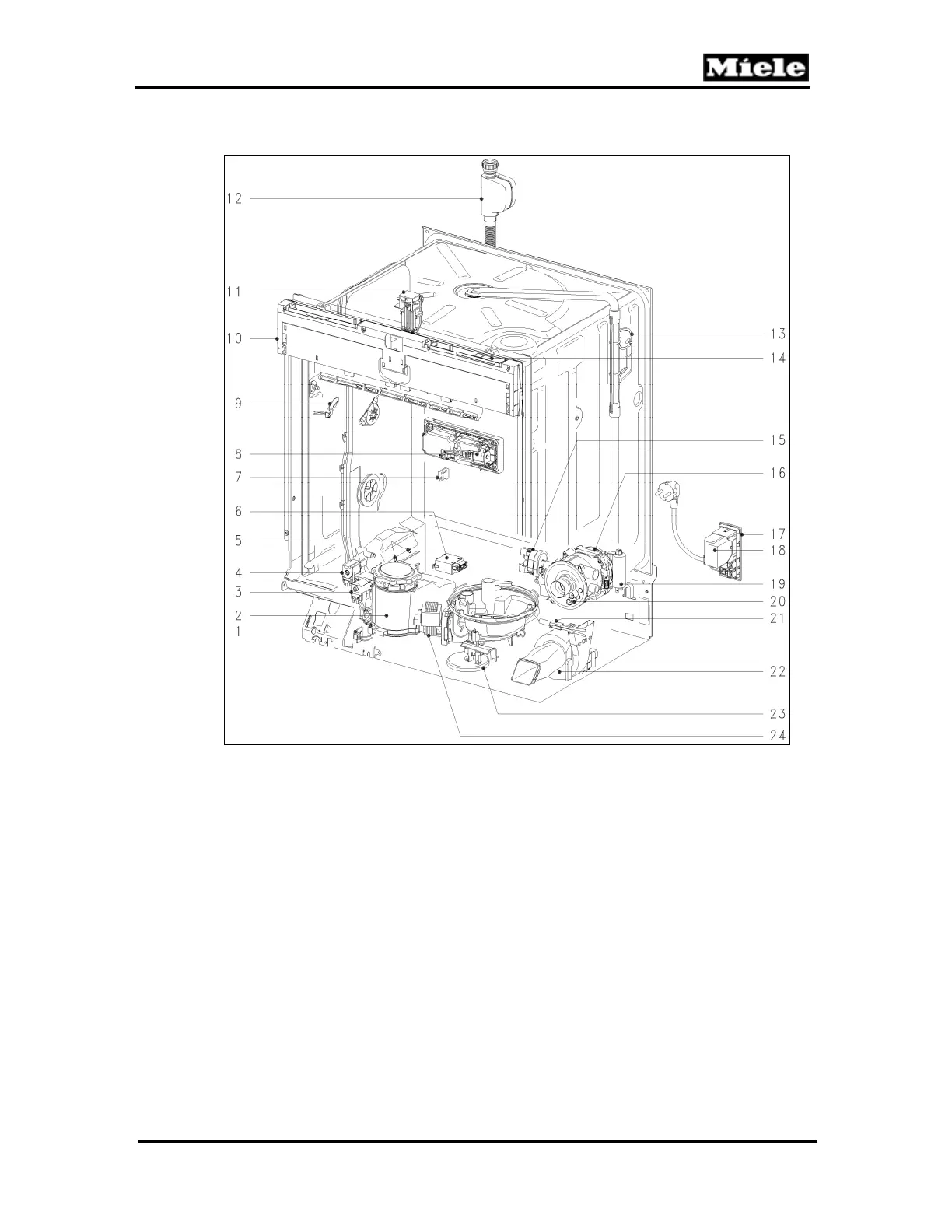

Figure D-25: G x47x Component Layout

Salt float switch, B8/2

Turbidity sensor, B3/10

Salt container

Main switch, S2

Reactivation solenoid, Y38

Heater pressure switch, B1/13

Wash-water hardness solenoid, Y5

Circulation pump (MPEH), M6

Sensor softener, 10N1

Terminal block, X3/1

Heater relay, K1/1

Interference suppression, Z1 or Z2

Rinse aid float switch, B8/1

Circulation pump capacitor, C6

Combination dispenser solenoid, Y50

Heater, R1

Flow meter, B3/4

Temperature sensor (NTC), R30

Electronic, 1N1

Fan, M2

Door contact switch, S24

Overflow float switch, B8/3

Water intake solenoid, Y2

Drain pump, M8
