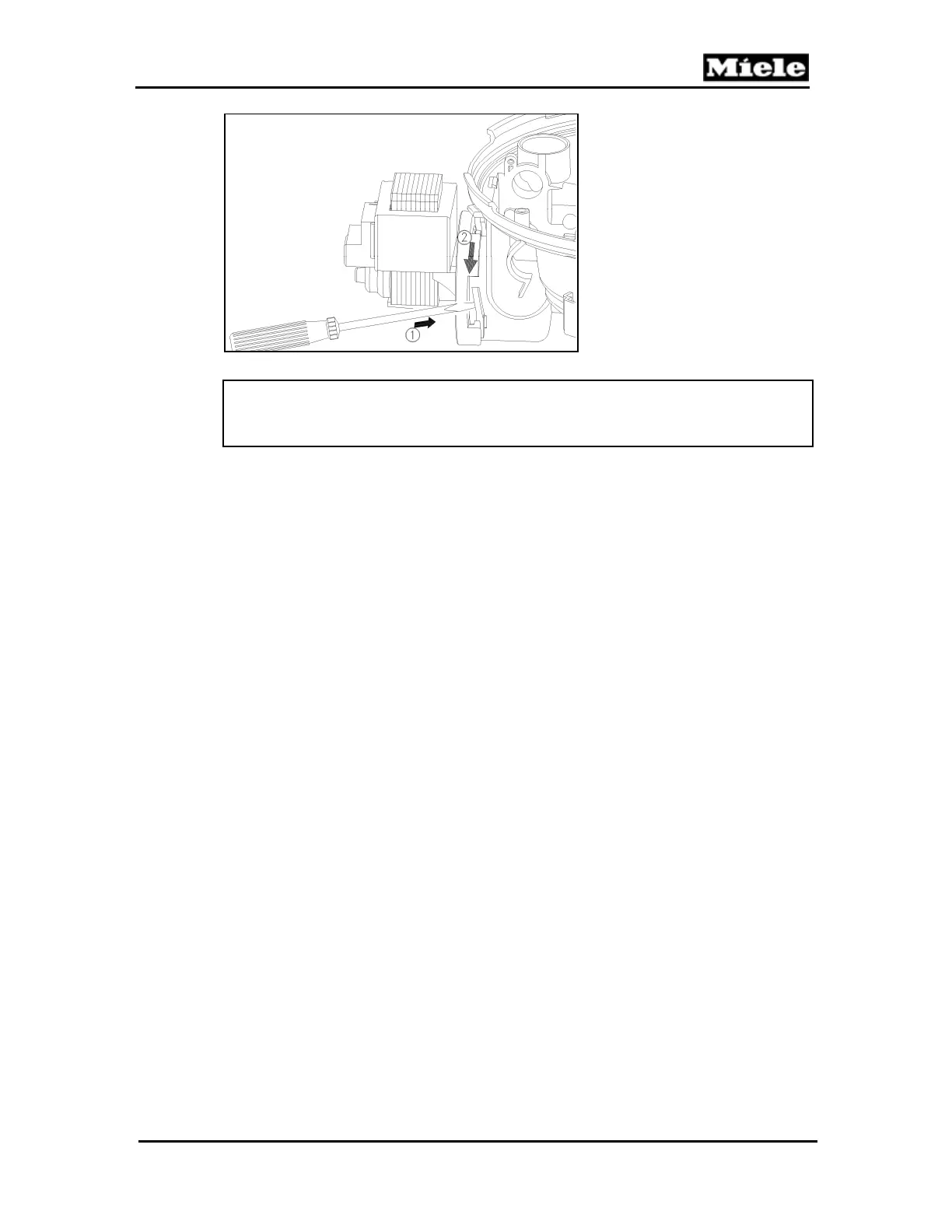

Figure 050-24: Removing the Drain Pump
Note:
When installing, apply a little water or soap solution to the pump seal as a
lubricant. After installation, check all the pump fastening points.
4.23 Removing the Sump
1. Remove as much residual water as possible from the sump and drain hose.
2. Open the door.
3. Remove the bottom basket.
4. Remove the bottom spray arm.
5. Unscrew the bottom spray arm flange.
6. Remove the filter combination.
7. Lay the dishwasher onto its back.
8. Remove the drip pan. See Section 010-4.2.
9. Remove the float switch.
10. Disconnect the hoses.
11. Disconnect the NTC sensor connections.
12. Remove the drain pump. See Section 050-4.22.
13. Remove the circulation pump. See Section 050-4.13.
14. Remove the heater wiring harness from the cable guide.
15. Unscrew the hose clip and remove it from the sealing ring.
16. Remove the sump by pulling down firmly and evenly on the drain pump or
circulation pump connections.
17. Remove the sealing ring.
